4MM 5MM 1TH Sawdust Pellet Press Machine 1TH Wood Pellet Processing Plant

4MM 5MM 1TH Sawdust Pellet Press Machine 1TH Wood Pellet Processing Plant

MOQ: 1set
Price: Negotiable according to different capacity demands
Standard Packaging: Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation
Delivery Period: 15-20 working days after deposit
Payment Method: L/C, T/T
Supply Capacity: /
Detail Information
Place of Origin
CHINA
Brand Name
APEX BIOMASS
Certification
CE SGS
Model Number
/
Items:
Wood Pellet Production Line
Name:
1TH Sawdust Pellet Production Line 420 Wood Pellet Plant
Warranty Time:
One Year After Machine Go Into Running , ,free Permanent Technical Support
Capacity (t/h):
1t/h ,sawdust Pellet Production Line
Pellet Mill Transmission:
Gear Transmit
Total Line:
Dryer ,wood Pellet Mill ,packing
Raw Material Water Content:
3-5mm
Installation:
Guided Installed ,
Highlight:

4MM sawdust pellet press machine apex

,

5MM sawdust pellet press machine apex

,

1TH wood pellet processing plant

Product Description

1TH Sawdust Pellet Production Line 420 Wood Pellet Plant



The capacity of sawdust pellete production line is from 0.8-1tons per hour. It is taking the mixture of softwood and hardwood sawdust as feedstock, The proportion of softwood against hardwood goes 9:1, with the moisture content of feedstock 12% or so.



The complete  pellet production line mainly covers pulverizing(sawdust no need this parts ), drying, mixing, pelleting, cooling and packaging which it is including jumbo bag and small bag. The smaller bagger used for 15KG per bag and the bulk bagger for 1 ton can meet the demands for different weighs of pellets in the market.



The sawdust Pellet Production Line raw material :



Sawdust (others such as :wood, logs, wood chips, palm fiber,straw,rice husk, oak, pine, corn stalk, waste wood, waste wood pallet, sawmill plant waste wood)

Require size: 3--5mm;

Moisture content: 10-15%



Final different size sawdust pellet production line :



Diameter of final wood pellets: 6mm,8mm,10mm,12mm.

Length of wood pellet: Ajustable wood pellets

Applicate: Home fireplace, power plant etc.

4MM 5MM 1TH Sawdust Pellet Press Machine 1TH Wood Pellet Processing Plant 0



4MM 5MM 1TH Sawdust Pellet Press Machine 1TH Wood Pellet Processing Plant 1

According to the condition of raw material (type,size ,moisture etc ), complete wood pellete line is divided into:chipping and grinding process ,drying process ,pelleting process,cooling and packing process .



The main euqipment :

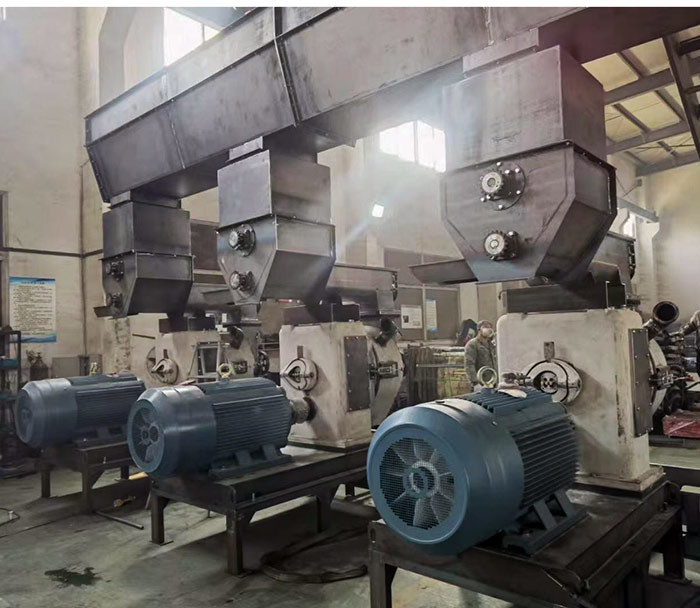

Sawdust Pellet Mill
4MM 5MM 1TH Sawdust Pellet Press Machine 1TH Wood Pellet Processing Plant 2 Model :420,508 ,650
Model 420
Capacity :1-1.5t/h
Power :90kw
Weight :3200kg
Dimension :2500*1100*1600mm
Model :508
Capacity :1.5-2t/h
Power :132kw
Weight 5300
Dimension :2800*1500*2500mm
Model :650
Capacity :2.5-3t/h
Power :200kw
Ring die :Customized alloy steel or 4Cr13 Weight 9000kg
Dimension 3530*1580*2400mm



Brief introduction  process :



  1. Chipping and grinding : Aimed at large raw material ,those feeding can be pre-treated by chipper and grinder into 6mm which is suitable for pellet process .



  1. Drying process : wood pellet plant request for moisture is about 8%-12% ,but the common water content provided is 45-50% thus it must be dryied .



  1. Pelleting process : to press pre-treated material or pellet directly into high density pellet .



  1. cooling and packing process : the temperature of finished coming from pelleting machine is about 60-80°which is too high would result in wetting back ,then the pellets get loose .So cooling process is necessary .







FAQ:



How did you define your wood sawdust  pellet mill model as 420 / 508, etc. ?



The model is defined based on the diameter of the ring die mould.

For example, mould 420 means that the diameter of the ring die is 420 mm.



2) what kind of raw material that the ring die mould is made of?

There are two kinds of ring die mould in the market. one is made of  alloy steel, the other is made of stainless steel. the former is cheaper than the latter.

We adopt stainless steel ring die and press roller sheel in our machine.



3) what about the size of the final product wood pellet?

the size is adjustable accroding to your requirement.

the diameter range of the sawdust pellet  is ø6-10 mm by using different size of ring die mould.

the length of the pellet could be adjusted by the cutter on the machine.



5) What is the suitable moisture (water content) of the raw material that easy to make pellet?

the ideal moisture range is from 15% to 18% .



6) will you dispatch engineer to install the wood sawdust biomass pellet mill machine (production line)?

Yes. we will dispatch engineer to do the service just based on the requirement of customers.



9) where is your factory located? how could I get there?

Our factory is located in Liyang ,about 80km to Nanjing airport .
