20Crmnti Alloy Steel Pressure Roller Kit Biomass Pellet Machine Spare Parts SGS
| Place of Origin | CHINA |
|---|---|
| Brand Name | APEX BIOMASS |
| Model Number | MZHL ,MUZL,SZHL,etc |
| Minimum Order Quantity | 2pcs |
| Price | Negotiable |
| Packaging Details | Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation |
| Delivery Time | 15 working times |
| Payment Terms | T/T, L/C |
| Supply Ability | 100-150 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Items | Pellet Machine Roller Shall | Name | Pellet Machine Spare Parts Roller Shell Pressure Rollers Customzied |
|---|---|---|---|
| Raw Material | Alloy Steel (40Cr, 20Crmnti, Gcr15), | Grade | First Level |
| Application | Biomass Animal Feed Press Roller | Type | Pass Or End Tooth Type |
| Customized | Accepted | ||
| Highlight | 20Crmnti pressure roller kits,Alloy steel pressure roller kit 20Crmnti,biomass pellet machine spare parts SGS |
||
Product Description

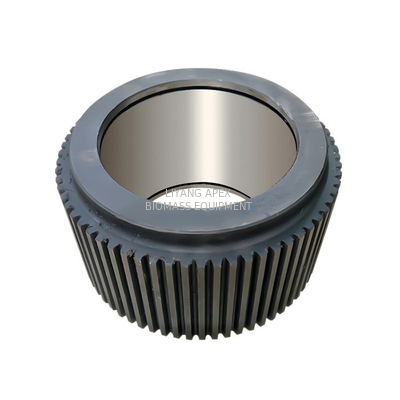

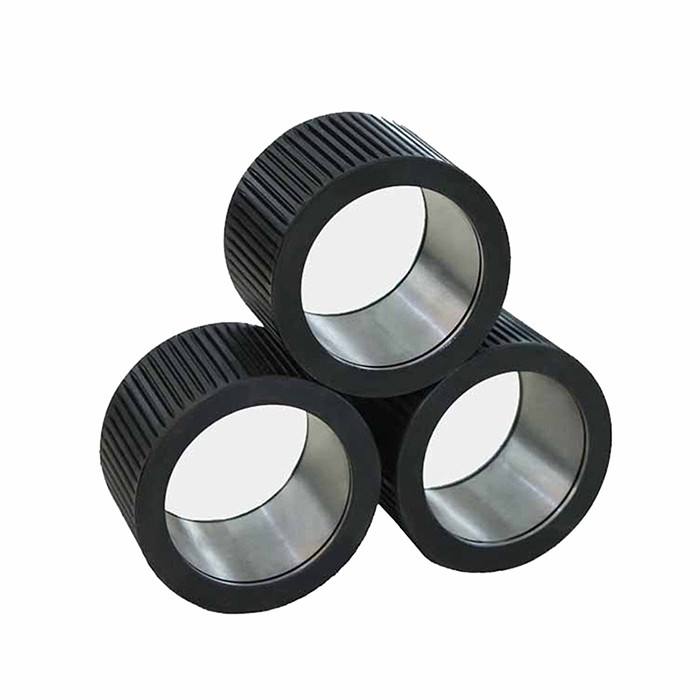

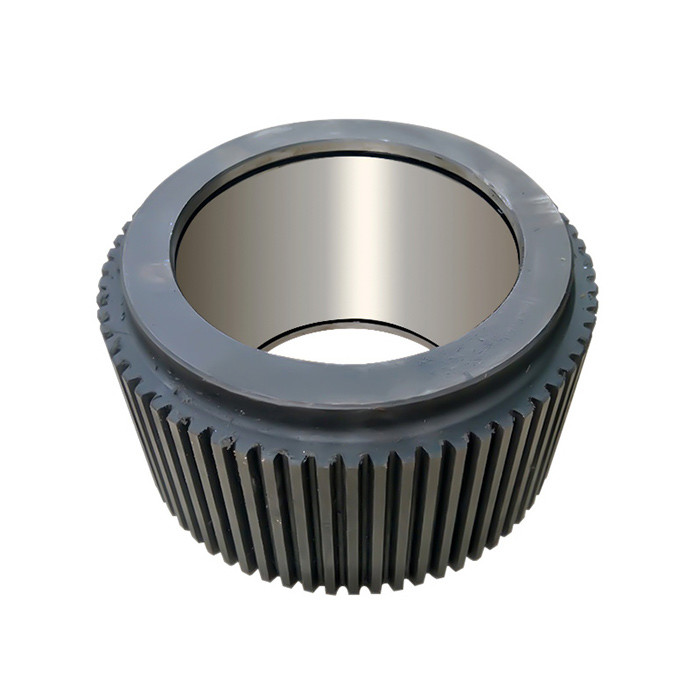

Pellet machine Spare Parts Roller Shell Pressure Rollers Customzied
The roller shell is one of the main working parts of pellet mill.The roller shell has different types of structures such as tooth-shaped through-shaped, tooth-shaped blocked, and hole-shaped.
Our press roller shell is applicable for:
1.Biomass pellet machine: wood pellet mill, sawdust pellet mill, grass pellet mill, straw pellet mill, crop stalk pellet machine, alfalfa pellet mill etc.
2.Fertilizer pellet machine, all kinds of animal/poultry/livestock feed pellet machine.
| Product Name | Pellet machine Spare Parts Roller Shell Pressure Rollers |
| Raw Material | 60Si2Mn,20CrMnTi,40Cr,X46Cr13,50#Alloy steel,42CrMo,Stainless Steel,etc( As customer demanded, not always used). |
| Certification | ISO9001, SGS, ISO14001 |
|
Product Type
|
Roller for XGJ560,850 etc . 1.SZLH250,300,320,350,400,420,508,........ C600,TAIWANYIDA,TAIWANWANDEFU,400D,ZHENGCHENG,HDJ008...... Other Particular Dimension(L*W*H): Can be customrized. |
| Used | feed animal press |
Roller shell, commonly known as pressure roller, is one of the main work parts in pellet machine and is applied for processing various kinds of biomass fuel pellet, animal feed pellet and other pellets. It is made of wear resistant alloy steel with carburization heat treatment, featuring even hardness and long service life.
We can make all kinds of pellet mill roller shells according to customers' drawing.
1. Grade: First level
2. Size:1.0~20.0 mm
3. Certification: CE ISO SGS
Note :
1. Correctly select the appropriate die hole compression ratio;
2. Correctly adjust the working gap between the ring die and the pressure roller to be between 0.1 and 0.3mm (the pressure roller is driven by the ring die after the new granulator is turned on in a “like rotating but not rotating” state);
3. The new ring die should be used with a new pressure roller, and the pressure roller and the ring die must be loose before and then tightened. When sharp corners appear on both sides of the pressure roller, the flange of the pressure roller should be smoothed with a hand grinder in time to facilitate a good fit between the pressure roller and the ring die;
4. The raw material must undergo preliminary cleaning and magnetic separation before the pelletizer to reduce iron pressing into the die hole. And to check the die hole regularly to see if there is any blockage. Punch out or drill out the blocked mold hole in time;
Main technical paremeter of pressure roller shell :
- Size indication: outer diameter / inner diameter X width
- Surface processing type: through groove, closed groove, punching
- Material: according to customer requirements
- Hardness: HRC 58-62 according to diferent raw material
How to order a roller shell pls provide the data as below :
