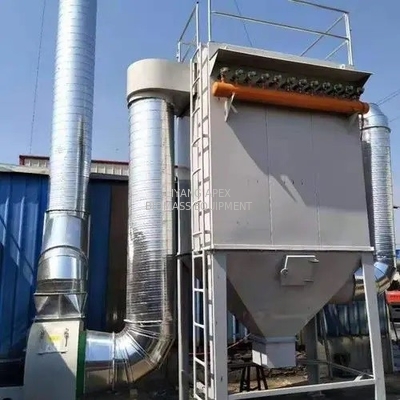

Wood Working Shop 120m2 Industrial Dust Collection System 120pcs Bag Filter Dust Collector
| Place of Origin | JIangsu China |
|---|---|
| Brand Name | APEX BIOMASS |
| Model Number | xmc |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation |
| Delivery Time | 15 working days after deposit |
| Payment Terms | T/T, L/C |
| Supply Ability | 15 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Items | Dust Collector | Name | Wood Working Shop Dust Collector Equipment Bag Pulse Dust Collector |
|---|---|---|---|
| Application | Dust Collecting | Model | XMC |
| Type | Pulse | Sparts Parts | Bag Fiters |
| Filtering Area | 120m2 | Filter Bag | 120 Pcs |
| Highlight | 120m2 industrial dust collection system,Pulse Dust Collector Equipment,120pcs bag filter dust collector |
||
Product Description

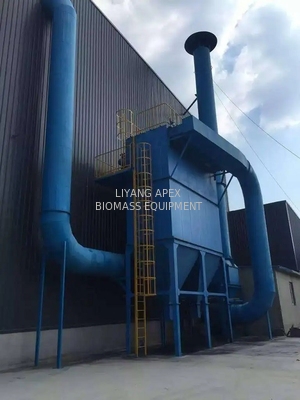

Wood Working Shop Dust Collector Equipment Bag Pulse Dust Collector
XMC pulse bag-type dust collector is improved on the basis of the international MC - type II and Japan FBF bag-type dust collector, which is new and high efficient impulse dust collector is suitable for dusty air cleaning and material dust collecting in the industries like wood pellet line ,metallurgy, construction, chemical and etc.
| Type | XMC60-2 | XMC60-3 | XMC60-4 | XMC60-5 | XMC60-6 |
| Wind Volume (m3/h) | 6000-9500 | 9500-13000 | 13000-17000 | 17000-20000 | 20000-24000 |
| Filtration area (m2) | 120 | 180 | 240 | 300 | 360 |
| Filtering Wind speed(m/min) | 0.97-1.3 | 0.93-1.2 | 0.90-1.2 | 0.95-1.1 | 0.91-1.1 |
| Filter bags(bag) | 120 | 180 | 240 | 300 | 360 |
| Resistance(Pa) | ≤1200 | ||||
| Density of inlet(g/m3n) | ≤1300 | ||||
| Density of outlet(mg/m3n) | ≤50 | ||||
| Injection Pressure (MPa) | 0.5-0.7 | ||||
| Pressure(Pa) | 9000 | ||||
| Pulse valve No. (piece) | 10 | 15 | 20 | 25 | 30 |
|
Air consumption (m3/min) |
0.65 | 1.01 | 1.37 | 1.73 | 2.09 |
| Insulation area (m2) | 35 | 40 | 65 | 77 | 88 |
| Weight( kg) | 5300 | 6600 | 8450 | 10600 | 12400 |
| Power(KW) | 2.2 | 2.2 | 5.2 | 5.2 | 5.2 |
dust collector is customized accoring to your condition and requirement.
Quick advantage :
1.Advanced thin type lifting valve and off-line dust cleaning device can gurantee to collect the dust completely.
2.Reasonable design for air inlet evenly flow tube and dust hopper discharging device. This can resolve the problem the uneven air flow of each chamber.
3. Bigger volume air bag can be suitable for both high pressure and low pressure air supply.
4.Design of filtering bag is different according to different industry and application. The fabrication standards are increased at approx. 50% based on the industry standard.
