15 Ton/H Output Wood Pellet Production Line DR800 Pellet Mill

MOQ: 1set
Price: Negotiable according to different capacity demands
Standard Packaging: Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation
Delivery Period: 25-30working days after deposit
Payment Method: L/C,T/T
Supply Capacity: /
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
APEX BIOMASS
Certification
CE SGS
Model Number
DRZL650
Items:
Wood Pellet Production Line
Name:
15 Ton/h Wood Pellet Production Line Manufacture 2 Rollers Wood Pellet Plant
Pellet Mill:
DR800
Output:
15 TON/H
Total Line:
Wood Chipper ,hammer Mill ,wood Pellet Machine And Packing .
Raw Material:
Wood Raw Material Such As Wood Log ,wood Pallet ,sawdust ,wood Shaving Or Rice Husk Etc .
Power:
380v ,60hz
Working Method:
Semi Auto Control Or Full Auto
After Sale Service:
Will Dispatch Engineer To Working Site To Guide Installation
Warranty:
Wood Pellet Machine All Reducer Box 2 Years . Other For One Year Not Inlucing Spare Parts
Highlight:

15Ton/H Wood Pellet Production Line

,

2 Rollers Wood Pellet Plant

,

15 Ton/H Wood Pellet Plant

Product Description
15 Ton/H Wood Pellet Production Line Manufacture 2 Rollers Wood Pellet Plant
Wood Pellet Machine / Wood Pellet Press Machine
15 Ton/H Output Wood Pellet Production Line DR800 Pellet Mill 0
Model DR420 Capacity: 1-1.5t/h
Power: 90kw
Weight: 3200kg
Dimension: 2500*1100*1600mm
Model DR508 Capacity: 1.5-2t/h
Power: 132kw
Weight: 5300kg
Dimension: 2800*1500*2500mm
Model 800 Capacity: 3-4t/h
Power: 200kw
Ring die: Customized alloy steel or 4Cr13
Weight: 9500kg
Dimension: 3530*1580*2400mm
15 Ton/H Output Wood Pellet Production Line DR800 Pellet Mill 1
Important Notes:
  • Output may vary depending on raw material state, moisture content, and other conditions. Contact us with your raw material details for more accurate information.
  • Final pellet size can be customized beyond standard 6-10mm range.
  • We offer full customization options including color, motor brand, voltage, size, and functionality.

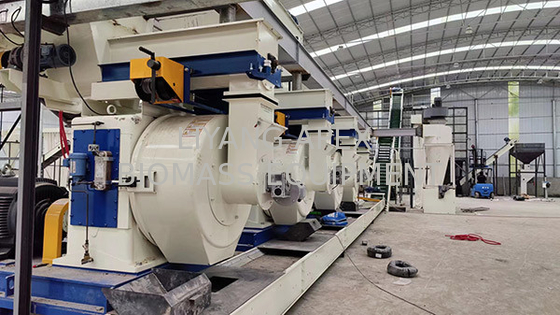

Complete Wood Pellet Production Line
The wood pellet production line transforms wood waste materials into solid fuel pellets suitable for burning applications. Our system can process various agro-forestry waste materials including:
  • Groundnut shell
  • Sugarcane bio-gases
  • Castor shells/stalk
  • Saw dust
  • Coffee husk
  • And many other agricultural wastes
15 Ton/H Output Wood Pellet Production Line DR800 Pellet Mill 2
Raw Material Requirements
  • Size: 3-5mm
  • Moisture content: 12-20%
Final Wood Pellet Specifications
  • Diameter options: 6mm, 8mm, 10mm, 12mm
  • Length: Adjustable
  • Applications: Home fireplaces, power plants, etc.
15 Ton/H Output Wood Pellet Production Line DR800 Pellet Mill 3
Wood Pellet Line Processing Stages
1. Wood Chipper
Processes tree trunks and wood logs into wood chips (less than 5cm size). Our drum wood chipper is ideal for large capacity production of quality wood chips, suitable for wood chip production, paper plants, and board manufacturing.
15 Ton/H Output Wood Pellet Production Line DR800 Pellet Mill 4
2. Grinding Processing
Our hammer mill system transforms wood chips into sawdust suitable for pellet production.
15 Ton/H Output Wood Pellet Production Line DR800 Pellet Mill 5
3. Drying
Reduces material moisture from 50% to 15-17%. Our rotary dryer ensures optimal moisture content (13-15%) for pelletizing.
4. Pelletizing Process
Produces biomass pellets using premium components: SIEMENS motor, high-precision gear transmission, SKF bearings, and forced feeding device. Core ring die made from 42CrMo.
15 Ton/H Output Wood Pellet Production Line DR800 Pellet Mill 6
5. Cooling System
Cools pellets from 70°C to room temperature, enhancing hardness and strength.
15 Ton/H Output Wood Pellet Production Line DR800 Pellet Mill 7
6. Packing Processing
Packs finished pellets in 10-100kg bags using sewing machines for waterproof closure.
15 Ton/H Output Wood Pellet Production Line DR800 Pellet Mill 8
Frequently Asked Questions
How are pellet mill models (420/508/800) defined?
Models are based on ring die mould diameter (e.g., 420mm for DR420 model).
What materials are used for ring die moulds?
We use stainless steel ring dies and press roller shells for durability.
What sizes are available for final wood pellets?
Diameter adjustable from ø6-10mm. Length adjustable via machine cutter.
What is the ideal moisture content for raw materials?
Optimal range is 15-18% moisture content.
Do you provide installation services?
Yes, we dispatch engineers for installation based on customer requirements.
Where is your factory located?
Our factory is located in Liyang, approximately 80km from Nanjing airport.
15 Ton/H Output Wood Pellet Production Line DR800 Pellet Mill 9 15 Ton/H Output Wood Pellet Production Line DR800 Pellet Mill 10
