3t/H 110X65MM Small Wood Crusher Machine Hammer Mill For Wood SFSP
| Place of Origin | CHINA |
|---|---|
| Brand Name | APEX BIOMASS |
| Certification | CE SGS |
| Model Number | SFSP |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation |
| Delivery Time | 20 working days |
| Payment Terms | T/T, L/C |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Wood Crushing Hammer Mill Machine SFSP110*65 | Application | Sawdust Raw Materials And Other Materials; And Specially Designed For Fibrous Raw Materials, Raw Materials With High Moisture And Oily Properties And Fine Grinding |
|---|---|---|---|
| Capacity | 3-7t/h Wood Material Generlly | Quick Parts | Blade And Screening |
| Voltage | 380v 50hz Customzied | Blade Pcs | 75kw As Example 96pcs |
| Weight | About 3 Ton | ||
| High Light | apex 3t/h small wood crusher machine,apex 110X65MM small wood crusher machine,75kw small hammer mill for wood |
||
Product Description

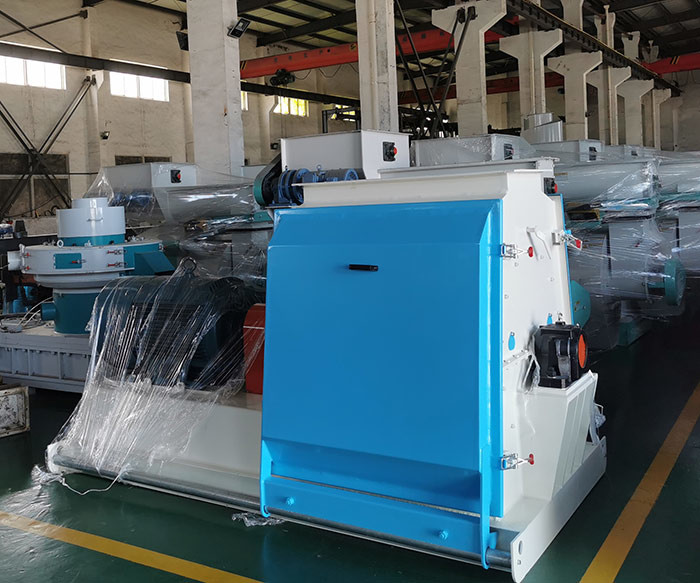

Wood Crushing Hammer Mill Machine SFSP110*65
1.1 Purpose and scope of application
This series of hammer mills can pulverize wood chips and other materials; it is specially designed for fibrous raw materials, raw materials with high water content and fine pulverization, and is an indispensable equipment for the pulverization section of manufacturers.
1.2 Performance characteristics
This series of pulverizers are welded with thickened steel plates. Wear-resistant replaceable parts and double wear-resistant plates are used in the pulverizing chamber and the parts in contact with the material. The motor and the rotor of the pulverizer are installed on the same heavy base, and are directly connected by coupling Transmission, the rotor is verified by dynamic balance, and can work in forward and reverse directions, and the hammers are arranged symmetrically. The machine is simple in structure, fast and durable, safe and reliable, easy to install, simple to operate, small in vibration and high in productivity.
| Model | 110*65 | 110*95 | 110*110 | |||
| Power (kW) | 90 | 110 | 110 | 132 | 132 | 160 |
| Capacity(t/h) | 3-4t/h | 4-5th | 4-5th | 5-6t/h | 5-6t/h | 6-7t/h |
Note:The above indicators meet the following conditions, the variety of raw materials, wood chips, moisture is not more than 13%, and the capacity is not less than 0.72T/m3. The sieve diameter of the sieve plate of the pulverizer is Φ10, and the opening rate is not less than 33%. The sieve aperture/opening ratio affects throughput.
apex 3t/h small wood crusher machine
75kw small hammer mill for wood
