xItems | Pellet Machine Ring Die | Name | Wood Pellet Mill Die |
---|---|---|---|
Raw Material | Alloy Steel 20CrMnTi | Dimension | 508*660*238 |
Pellet Machine Brand | 508 | HRC | 52-60 |
Compression Ratio | Customzied | Weight | 150kg |
High Light | SS X4Cr13 pellet ring dies apex,508 420 pellet ring dies apex,wood pellet dies 150kg apex |
Wood Pellet Mill Die 508 420 Pellet Die Production
Pellet mill die is the core part of pellet mills which plays very pivotal role in pelleting process,so it is most important to choose the appropriate ring die and brand manufacturer for pellet mills ,a good pellet mill die can improve product quality and output, reduce energy consumption (granulation energy consumption accounts for 30%-35% of the total energy consumption of the entire workshop), and reduce production costs (the cost of pellet mill die loss accounts for 25%-30% of the maintenance cost of the entire production workshop).
Why us ?
- Quality Assured: Adopting of high-quality exported forging parts to ensure fine quality of products.
- Advanced Automatic Pellet mill Die Processing Technology: Imported gun driller for drilling; combining the vacuum furnance and continuous quench process for heating; highly polished.
- Good Mechanical Properties: Good tensile strength, good abrasion resistance, good corrosion resistance, good impact resistance, good heat resistance, good fatigue resistance.
- Long Service Life: The service life of our ring die for making wood pellets can be up to 2000 tons; and for making feed pellets can be up to 10000 tons.
The Pellet mill die raw material :
Alloy steel: 20CrMnTi.
Stainless steel: Chinese Standard: X4Cr13, Germany Standard: X46Cr13.
The difference between different raw materials :
- 1. Alloy dies are the choice for many feed processors because of their good abrasion and breakage resistance
- 2. Chrome dies (less used )have superior corrosion resistance, making them the choice for processing operations involving corrosive chemicals
- 3. Stainless steel dies have the best abrasion and breakage resistance as well as good corrosion resistance
Generally Wood pellet Mill dies size :
Yulong Pellet machine ring die :XGJ850/560
For Zhengchang pellet mill: SZLH250, SZLH300,SZLH320,SZLH350,SZLH400,SZLH420,SZLH508, SZLH678, SZLH768, etc
For Muyang pellet mill: MUZL180, MUZL350, MUZL420, MUZL600, MUZL1200, MUZL610, MUZL1210, MUZL1610, MUZL2010;
MUZL350X, MUZL420X, MUZL600X, MUZL1200X(Especially for shrimp feed pellet, diameter: 1.2-2.5mm)
For Awalia pellet mill: Awalia 420, Awalia350, etc
For Buhler pellet mill: Buhler304, Buhler420, Buhler520, Buhler660, Buhler900, etc.
For Kahl pellet mill(Flat die): 38-780, 37-850, 45-1250, etc
For IDAH pellet mill:PM-42L,PM-51SA,PM-53SA,PM-53SC,PM-53WS,PM-635D
Wood pellet mill die processing :

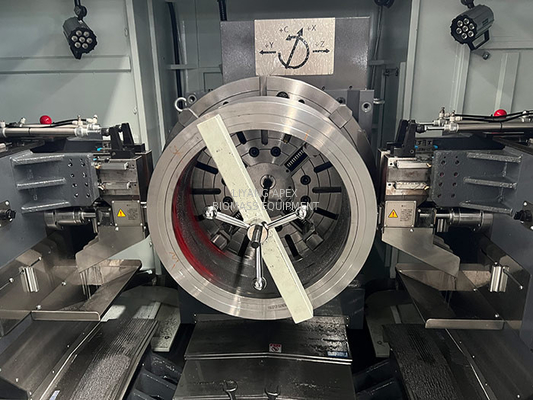

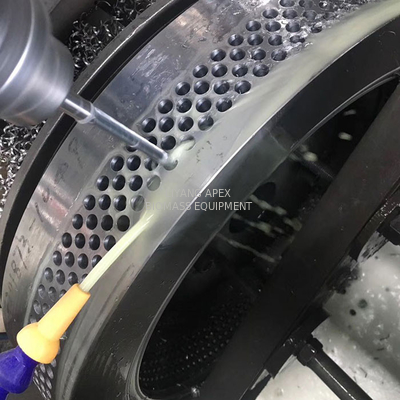

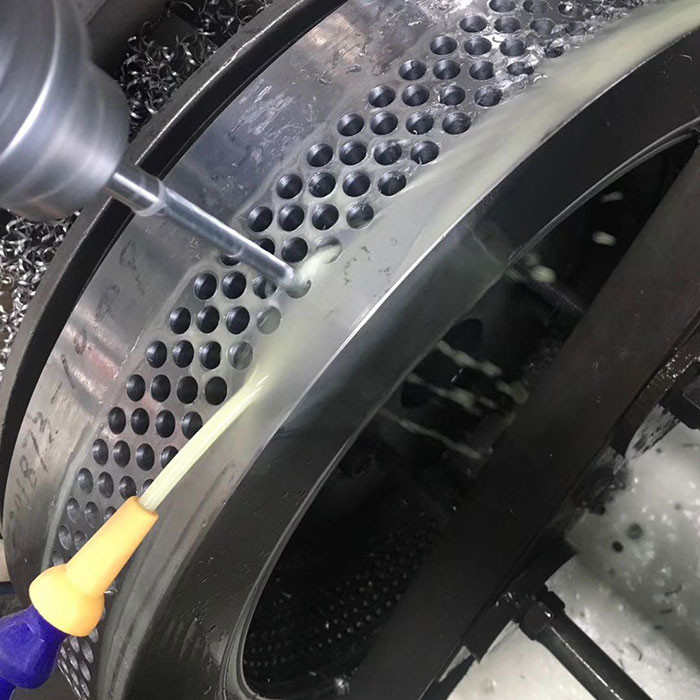

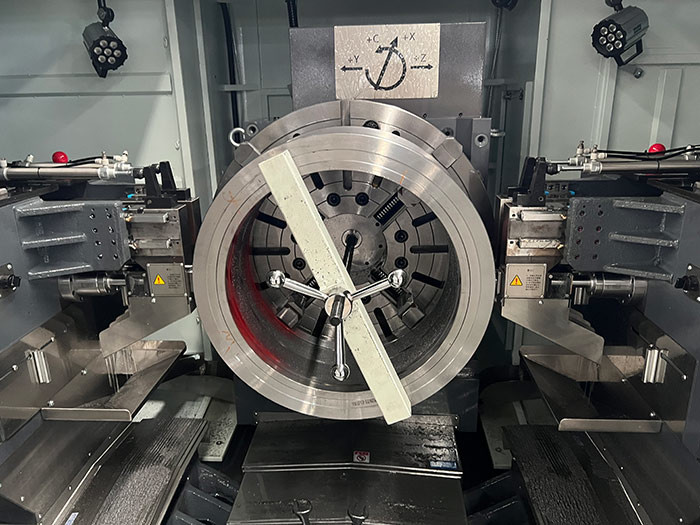

gun-drilling machine+ auto counter-sinking machine+vacuum heat treatment machine..
WARM TIPS:
How to maintain and inspect the ring die?
1.The rollers should be correctly adjusted, make sure the hole inlets are not damaged by contact with the rollers or as a result of tramp metal;
2.Material should be evenly distributed across the whole working area;
3.Make sure that all holes work uniformly, opening the clogged holes if necessary;
4.When changing dies, carefully inspect the condition of the die seating surfaces and fixing systems including collar, clamp or wear ring.
Item | Hole Diameter(mm) | Compression Ratio |
Ring die for animal feed pellet machine | ||
Poultry&livestock feed | 2.5 - 4 | 1:4-1:11 |
Fish feed | 2.0 - 2.5 | 1:12-1:14 |
Shrimp feed | 0.4 - 1.8 | 1:18-1:25 |
Ring die for biomass pellet machine | 6.0 - 8.0 | 1:4.5-1:8 |
