1.0mm To 2.5mm Feed Pellet Mill Ring Die X46Cr13 Stainless Steel Die

Place of Origin CHINA
Brand Name APEX BIOMASS
Certification CE SGS
Model Number CPM
Minimum Order Quantity 1set
Price Negotiable
Packaging Details Plywood case with film ,for sea transportation
Delivery Time 15 working times
Payment Terms T/T, L/C
Supply Ability 100pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Items Pellet Machine Ring Die Name 1.0mm -2.5mm Feed Pellet Die Stainless Steel Made High X46Cr13
Raw Material High Quality X46Cr13 Pellet Die Hole Size 1.0mm- 2.5mm /up To 20mm
Pellet Machine Brand CPM, SZLH,MZLH,CPP,OGM,MUZL, Warranty Time 3 Months
Lifetimes 1000-3000h Size As Drawing
Highlight

1.0mm pellet mill ring die

,

2.5mm pellet mill ring die

,

X46Cr13 stainless steel die

Leave a Message
Product Description

1.0mm -2.5mm Feed Pellet Die Stainless Steel Made High X46Cr13



Applicable for Biomass pellet machine.
Applicable for Fertilizer pellet machine, all kinds of animal/poultry/livestock feed pellet machine.



For Pellet Feed die manufacture ,we have own auto gun-drilling machines (12 sets), auto counter-sinking machines, auto lathing machines, vacuum heat treatment machines.



A good pellet mill die can improve product quality and output, reduce energy consumption (granulation energy consumption accounts for 30%-35% of the total energy consumption of the entire workshop), and reduce production costs (the cost of pellet mill die loss accounts for 25%-30% of the maintenance cost of the entire production workshop).Pellet dies must resist abrasion, corrosion from chemical exposure and breakage caused by the physical stresses of pellet formation. The optimum die combines high resistance to abrasion, breakage and corrosion with maximum productivity.



Highlight:

  1. Select quality forging stock, but general companies select casting stock
  2. Use gun drill , the hole is completed by one time, nice appearance, high capacity
  3. Use America vacuum oven and advanced treatment craft, ensure twice service life
  4. Strong R&D help customer design compression ratio and strength according to requirements, Ensure pelleting effect and high quality of product

The Pellet die raw material :

1. Stainless steel: Chinese Standard: X4Cr13, Germany Standard: X46Cr13.

2. Alloy steel :20CrMnTi

3. Diameter of ring die can do: 1.0mm up to 28mm.

4. Pellet die type can do: Ring Die or Flat Die



The difference between different raw materials :

  • 1. Alloy dies are the choice for many biomass processors because of their good abrasion and breakage resistance
  • 2. Chrome dies (less used )have superior corrosion resistance, making them the choice for processing operations involving corrosive chemicals
  • 3. Stainless steel dies have the best abrasion and breakage resistance as well as good corrosion resistance



Generally  pellet Mill dies size :

1. Yulong Pellet machine ring die :XGJ850/560

2. For Zhengchang pellet mill: SZLH250, SZLH300,SZLH320,SZLH350,SZLH400,SZLH420,SZLH508, SZLH678, SZLH768, etc
3. For Muyang pellet mill: MUZL180, MUZL350, MUZL420, MUZL600, MUZL1200, MUZL610, MUZL1210, MUZL1610, MUZL2010;
4. MUZL350X, MUZL420X, MUZL600X, MUZL1200X(Especially for shrimp feed pellet, diameter: 1.2-2.5mm)
5. For Awalia pellet mill: Awalia 420, Awalia350, etc
6. For Buhler pellet mill: Buhler304, Buhler420, Buhler520, Buhler660, Buhler900, etc.
7. For Kahl pellet mill(Flat die): 38-780, 37-850, 45-1250, etc
8. For IDAH pellet mill:PM-42L,PM-51SA,PM-53SA,PM-53SC,PM-53WS,PM-635D

Customized pellet mill die accept .



 Pellet mill die processing :

gun-drilling machine+ auto counter-sinking machine+vacuum heat treatment machine..



WARM TIPS:
1.The rollers should be correctly adjusted, make sure the hole inlets are not damaged by contact with the rollers or as a result of tramp metal;
2.Material should be evenly distributed across the whole working area;
3.Make sure that all holes work uniformly, opening the clogged holes if necessary;
4.When changing dies, carefully inspect the condition of the die seating surfaces and fixing systems including collar, clamp or wear ring.



How to choose the compression ratio :

Item Hole Diameter(mm) Compression Ratio
Ring die for animal feed pellet machine
Poultry&livestock feed 2.5 - 4 1:4-1:11
Fish feed 2.0 - 2.5 1:12-1:14
Shrimp feed 0.4 - 1.8 1:18-1:25
Ring die for biomass pellet machine 6.0 - 8.0 1:4.5-1:8

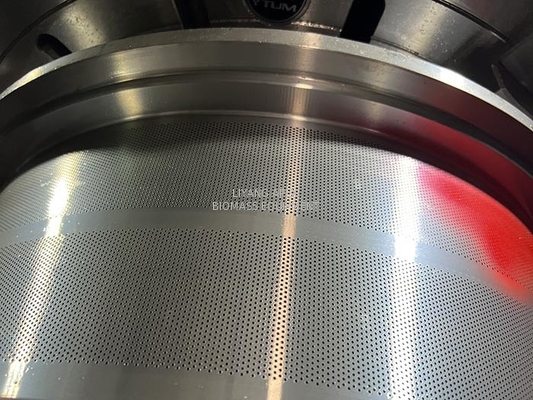

1.0mm To 2.5mm Feed Pellet Mill Ring Die X46Cr13 Stainless Steel Die 0

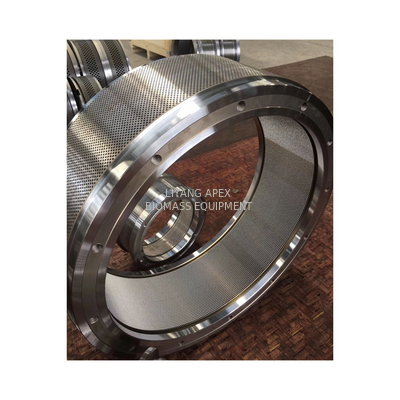

1.0mm To 2.5mm Feed Pellet Mill Ring Die X46Cr13 Stainless Steel Die 1

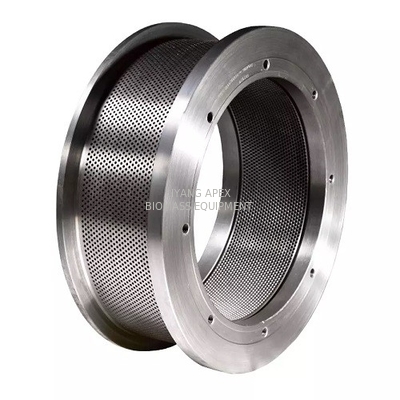

1.0mm To 2.5mm Feed Pellet Mill Ring Die X46Cr13 Stainless Steel Die 2
