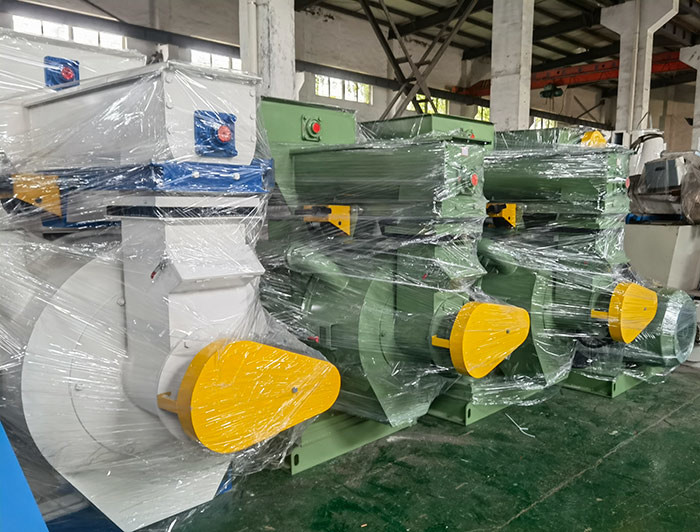

6mm To 12mm Biomass Pellet Mill Machine 3tph Wood Pellet Production
| Place of Origin | CHINA |
|---|---|
| Brand Name | APEX BIOMASS |
| Certification | CE SGS |
| Model Number | MZLH |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | 2 sets pellet mill machine *1 20gp . spare parts packed by plywood case or iron case only . |
| Delivery Time | 15 working times |
| Payment Terms | T/T, L/C |
| Supply Ability | 15 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Items | Biomass Pellet Mill Machine | Name | 132kw 1.5-2t/h Biomass Pellet Mill Wood Pellet Mill Machine |
|---|---|---|---|
| Raw Material | Wood Waste Such As Sawdust ,wood Log ,branch Etc . | Power | 132kw Brand Motor |
| Installation | Guided Installed ,video Guiding . | Model | MZLH |
| Ring Die Material | 20CrMnTi Or 4Cr13 | Wearing Parts | Roller Shell ,ring Die , Replaced Timely |
| Highlight | 6mm Biomass Pellet Mill Machine,12mm Biomass Pellet Mill Machine,apex 2th wood pellet production machine |
||
Product Description
132kw 1.5-2t/h Biomass Pellet Mill Wood Pellet Mill Machine
Biomass Pellet Mill is a key equipment for the production of wood pellets, which composed of multiple components. It is mainly composed of drive system, feeding system, pelletizing system, etc. This series of biomass pellet mill, not only capable of handling a variety of agricultural and forestry waste (wood log, sawdust, straw), husk, fiber, etc., can also handle animal manure. It can be said that as long as it is organic, it can be used as raw material to produce pellets.
Main Features:
1. Gear driven.
2. Force feeder.
3. Safe protection mechanism for both workers and machines.
4. Siemens motor, imported bearings.
5. Alloy steel or all stainless steel ring die.
6. Auto cooling and oil adding lubrication system.
7. Controlled length of pellet.
8. Optional Conditioner.
9. Optional Intelligent automatic control system.
Main technical parameters :
| Model | MZLH420 | MZLH508 | MZLH678 |
| Capacity(t/h) | 1-1.5 | 2.5-3 | 2-3 |
| Main power (kw) | 75/90 8/6P | 110/132 8/6P | 185/200 8/P |
| Feeding Power (kw) | 2.2 | 2.2 | 3 |
| Pellet Diameter (mm) | 6-12 | 6-12 | 6-12 |
|
Model
|
MZLH420
|
MZLH508
|
MZLH678
|
|
Ring die inner diameter (mm)
|
420
|
500
|
688
|
|
Ring die working width(mm)
|
90
|
100
|
110
|
|
Ring die linear speed (m/s)
|
3.16
|
3.78
|
3.54
|
|
Number of clamp
|
3 pcs
|
3 pcs
|
8 pcs
|
|
Number of roller
|
2 pcs
|
2 pcs
|
2 pcs
|
|
Number of cutter
|
1 pcs
|
1 pcs
|
1 pcs
|
|
Motor power
|
90+2.2+0.75
|
90+2.2+1.5
|
185+3.0+1.5
|
|
Motor rotation speed
|
750
|
750
|
595
|
|
Ring die hole diameter(mm)
|
6/8/10
|
6/8/10
|
6/8/10
|

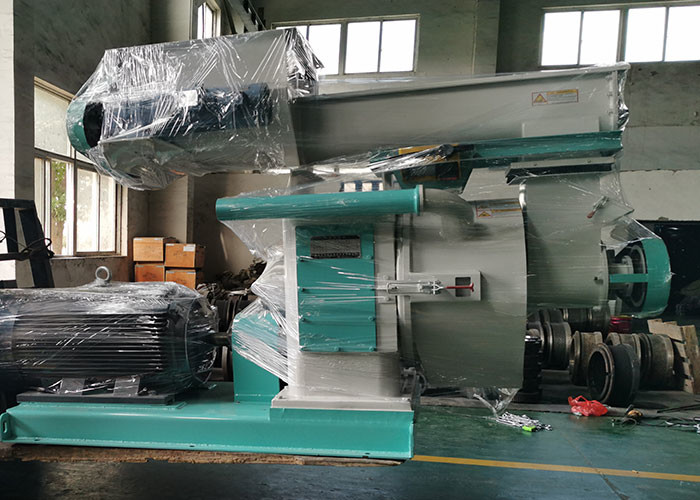

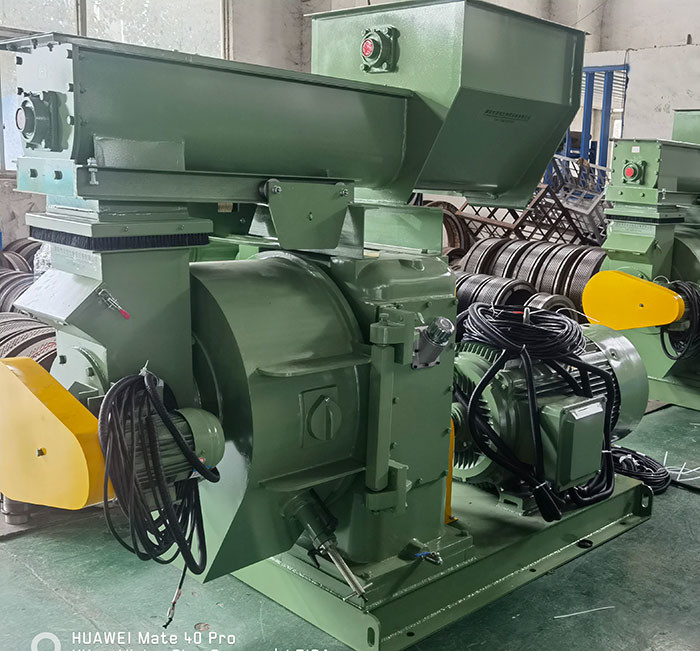

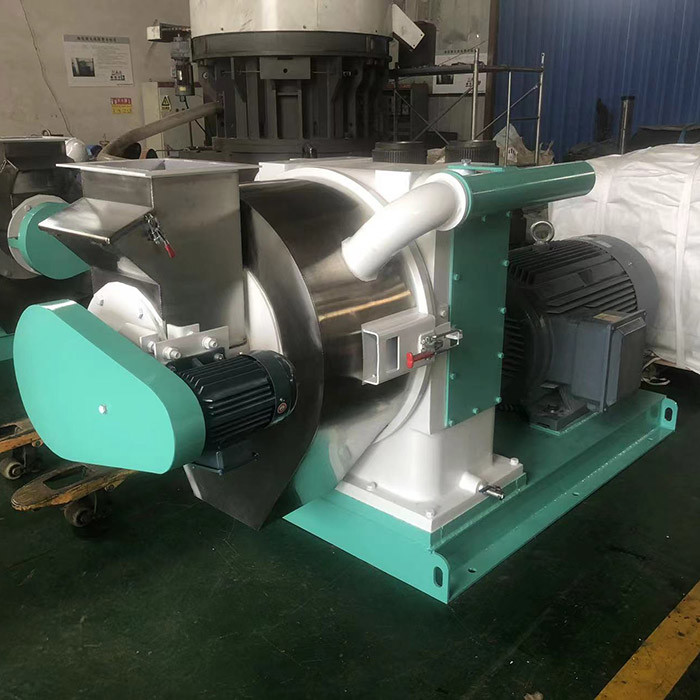

The structure of biomass /wood pellet mill
1. Feeder&Observation Hole:
Variable Frequency speed control, observation window to inspect the pelletizing at any time .
2. Forced feeder:
The average quantity is fed to the main engine at a constant speed.
3.Pelleting Chamber:
Insist of two rollers, ring die, and fixing parts.
4. Safety device :
the safety pin and switch is equipped to protect main shaft and stop the electric when iron go into the chamber .
5. Ring die lifting device :
Roller shell and Ring die replaced easliy with lifting device
6. Ring die :
Customized raw material and imported processing equipment and profession heating treatment compared to others .
How to work of biomass wood pellet mill ?
The material in the granulation bin is fed into the chute by the feeding auger, the material enters the pressing chamber through the forced feeder, and is fed into the two pressing areas in the ring die by the feeding scraper. Due to the high-speed rotation of the ring die The material is brought between the ring die and the pressure roller. Under the strong extrusion action of the ring die and the pressure roller, the material is gradually compacted and formed in the die hole. Because the extrusion of the material between the die rollers is continuous , so the formed material is continuously discharged from the die hole in a columnar shape, and then cut into particles of the required length by the cutter, and then enters the next process.
The compression ratio of 132kw 1.5-2t/h Biomass Pellet Mill Wood Pellet Mill Machine
(Compression Ratio= L/D L: Effective Die Hole Pelleting Length; D: Effective Die Hole Dia)
Generally speaking, the higher the compression ratio, the denser the finished pellets. But it does not mean that the higher the compression ratio, the better the pellet quality. Compression ratio should be calculated based on your raw material for making pellets. Commonly compression ratio is inversely proportion to the hardness of raw material, the harder the raw material, the smaller the compression ratio.
Why us :
A.Good reputation
Because of the good quality and credit,our company are with good reputation both at home and abroad.
B. Factory direct supply
This ensure the competitive price available and brand care.
C. Advanced technology adopted
American CPM advanced technology with rich experience on site for installation and debugging,which has the good ability to provide with aftersale service.
D. Best and reasonable structure design of the pellet mill
This make sure the durability of the machinery running.
Gear drive of the bioass pellet mill which make the pellet machine stronger for making the wood pellets.Compared with belt drive,with lower consumption for the same capacity.
