6t/H Sawdust Hammer Mill Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | APEX BIOMASS |
| Certification | CE SGS |
| Model Number | SFSP |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation |
| Delivery Time | 20 working days |
| Payment Terms | T/T, L/C |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Items | Hammer Mill Machine | Name | Wood Cihps Milling Hammer Mill Machine For Sawdust Making 6t/h |
|---|---|---|---|
| Capacity | 6-7t/h | Power | 132-160kw |
| Colour | Can Be Customzied | Wearing Parts | Blade And Screening Mesh |
| Weight | About 3 Ton | ||
| Highlight | 6t/h Hammer Mill Machine,7t/h Hammer Mill Machine,160kw sawdust pellet press machine |
||
Product Description

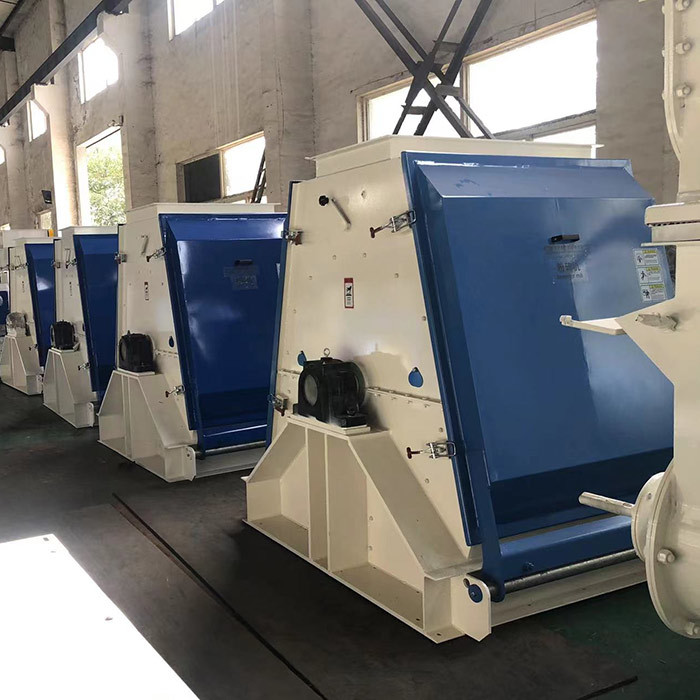

Wood Cihps Milling Hammer Mill Machine for Sawdust Making 6t/h
Attractive advantages
- CNC processing, with high accuracy

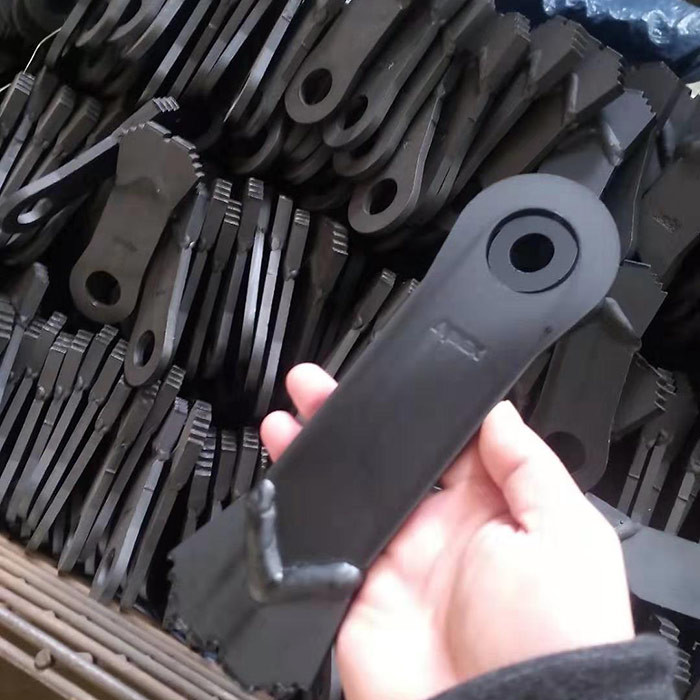

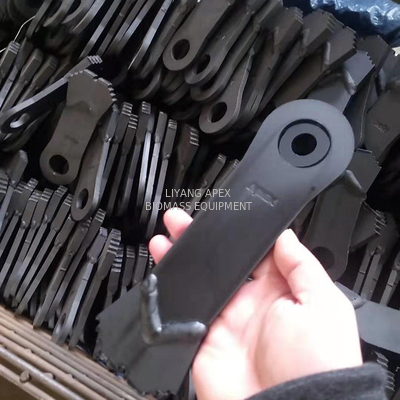

- Special process of hammer, with long service time
- Siemens motor
- Reasonable price
- Non-dust workshop
This wood chips hammer mill is applicable for the material after chipping (thickness≤10mm), and it should be fiber material with big moisture and oiliness and also applicable for coarse grinding.
Working principle is that the raw material go into the grinding room, then will be grinding by the impact force and shear force caused by high speed rotating rotor and collision force caused by the high speed rotating rotor, then pass through the screen to get the eligible products.
Wood chips hammer mill always comes with cyclone, air lock, stean fan, and bag dust collector .
- Available raw material: wood chips ,wood bricks, shavings, straw, peanut shell, palm shell, cotton seed, bamboo dust, rice husk, elephant grass, sugar cane, pulp, olive dust, and so on.
- Applications: the hammer mill can be widely used in home made production and industrial production in the field of agricultural, wood and animal industry.
| Model SFSP | 110*65 | 110*95 | 110*110 | |||
| Power (kW) | 90 | 110 | 110 | 132 | 132 | 160 |
| Capacity(t/h) | 3-4t/h | 4-5th | 4-5th | 5-6t/h | 5-6t/h | 6-7t/h |
Note:The above indicators meet the following conditions, the variety of raw materials, wood chips, moisture is not more than 13%, and the capacity is not less than 0.72T/m3. The sieve diameter of the sieve plate of the pulverizer is Φ10, and the opening rate is not less than 33%. The sieve aperture/opening ratio affects throughput.
Feature :
- Water drop structure, with elegant structure and high grinding efficiency.
- Directly connected motor, with high driving efficiency and easy maintenance.
- Maintenance gate is installed by rail structure, which is of simple and convenient operation.
- Grinding chamber seperation device optional, with high grinding efficiency.
- U-shape grinding groove at the bottom of grinding chamber, with improvement of grinding efficiency of 50%-80%.
- Dead Knife optional that can improve the grinding efficiency.
- Rotor is undertaken dynamic balance test, which can ensure the stable operation and long service time.
- Rotor rotatng in closewise and anti-closewise direction can prolong the service life og hammers.
