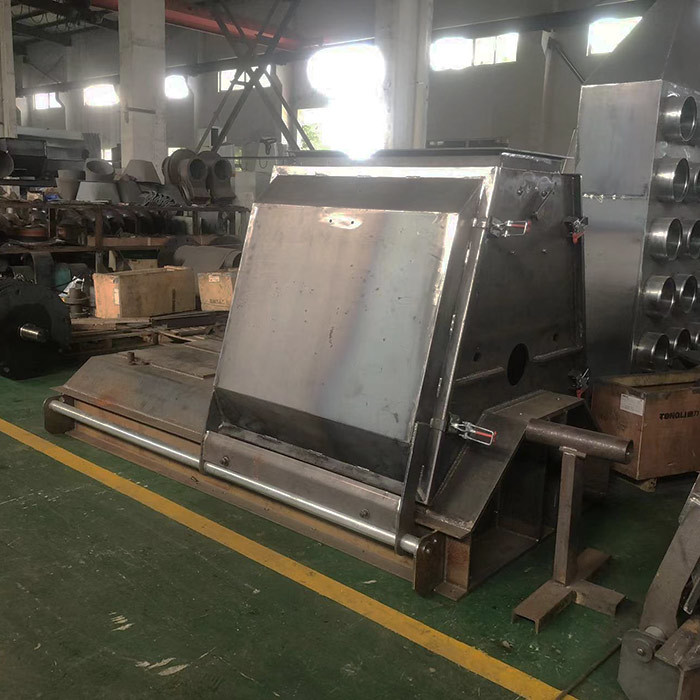

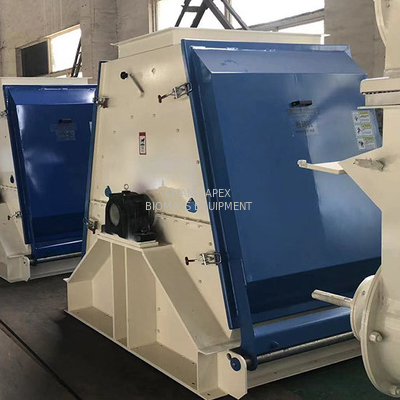

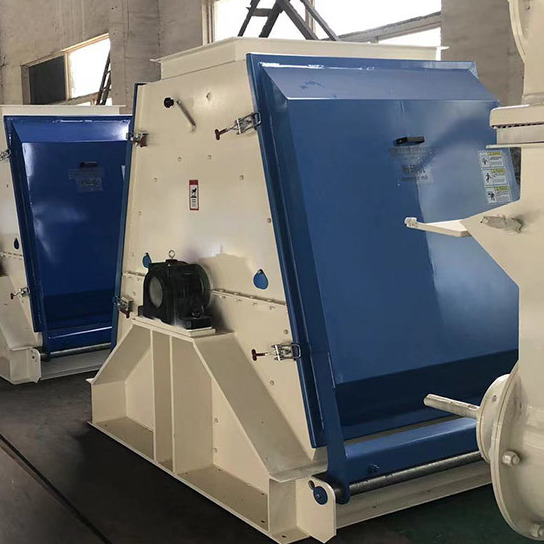

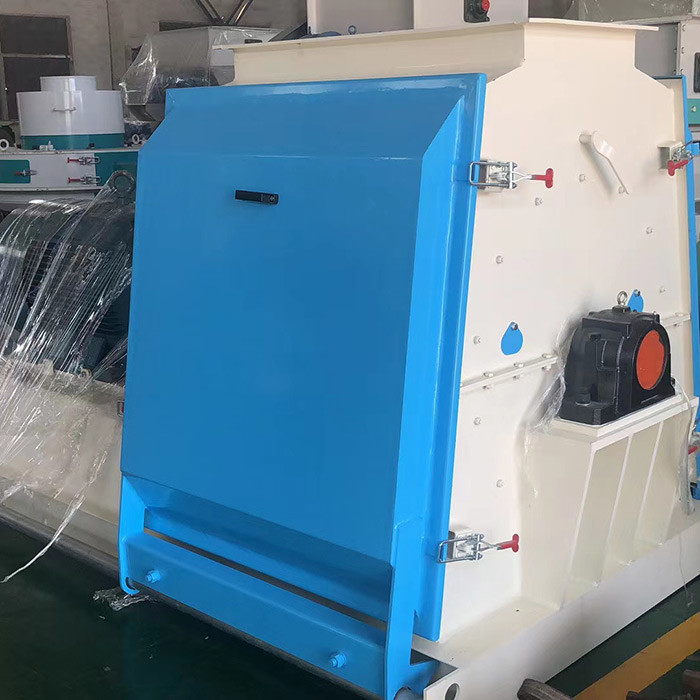

10th Biomass Feed Hammer Mill Machine Feed Grinder For Grinding

 10th Biomass Feed Hammer Mill Machine Feed Grinder For Grinding

Biomass / feed Hammer mill can used for grinding biomass and feed raw material; and it has special design for fiber raw materials and raw materials with high moisture content and high oil content, it is necessary equipment for grinding process of the poultry feed plant.

Working principle is that the raw material go into the grinding room, then will be grinding by the impact force and shear force caused by high speed rotating rotor and collision force caused by the high speed rotating rotor, then pass through the screen to get the eligible products.

Attractive advantages

• CNC processing, with high accuracy
• Special process of hammer, with long service time
• Siemens motor
• Reasonable price
• Non-dust workshop

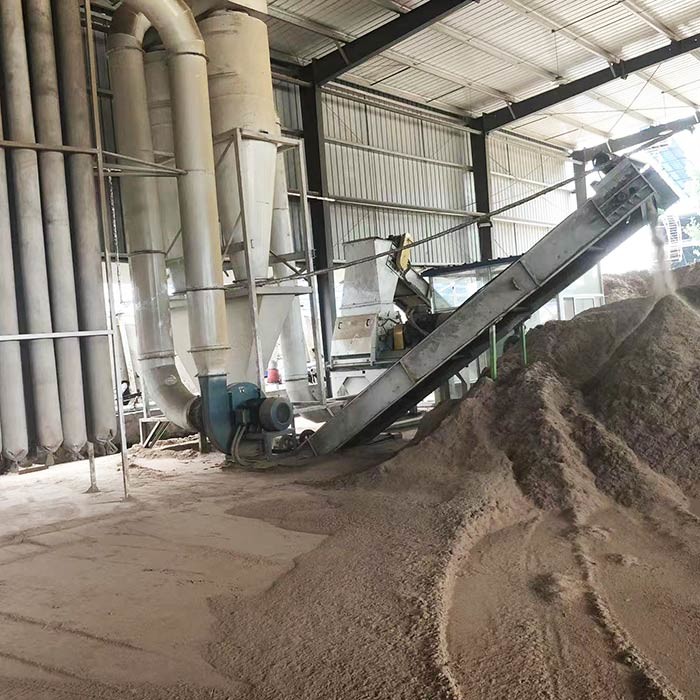

Wood chips hammer mill always comes with cyclone, air lock, stean fan, and bag dust collector .

Note:The above indicators meet the following conditions, the variety of raw materials, wood chips, moisture is not more than 13%, and the capacity is not less than 0.72T/m3. The sieve diameter of the sieve plate of the pulverizer is Φ10, and the opening rate is not less than 33%. The sieve aperture/opening ratio affects throughput.

Feature :

• Water drop structure, with elegant structure and high grinding efficiency.
• Directly connected motor, with high driving efficiency and easy maintenance.
• Maintenance gate is installed by rail structure, which is of simple and convenient operation.
• Grinding chamber seperation device optional, with high grinding efficiency.
• U-shape grinding groove at the bottom of grinding chamber, with improvement of grinding efficiency of 50%-80%.
• Dead Knife optional that can improve the grinding efficiency.
• Rotor is undertaken dynamic balance test, which can ensure the stable operation and long service time.
• Rotor rotatng in closewise and anti-closewise direction can prolong the service life og hammers.
