MSW 3 Rollers Refuse Derived Biofuel RDF Pellet Mill Machine No Roller Bearing.
| Place of Origin | CHINA |
|---|---|
| Brand Name | APEX BIOMASS |
| Certification | CE SGS |
| Model Number | KLF880 |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | 2*KLF880 IN one 20GP . Plywood or metal case if spare parts |
| Delivery Time | 30-35 working days |
| Payment Terms | T/T, L/C |
| Supply Ability | 5sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Items | RDF Pellet Mill | Name | Refuse Derived Fuel RDF Pellet Mill Machine No Roller Bearing Pellet Mill |
|---|---|---|---|
| Capaity | 2.5-3t/h | Power | 380v ,50 Hz ,three Phase Or Customized |
| Total Weight | 10-14ton | Ring Die Type | Two Layr |
| Ring Die Using Time | 2000 Hours | Rollers | 3 Rollers |
| Highlight | apex MSW RDF Pellet Mill,apex 3 rollers RDF Pellet Mill,Refuse Derived biofuel pellet machine |
||
Product Description
Refuse Derived Fuel RDF Pellet Mill Machine No Roller Bearing Pellet Mill
Turn Municipal Solid Waste (MSW) into Refuse Derived Fuel (RDF) with our industrial-grade pellet mills.
RDF consists largely of combustible components of such waste, as non recyclable plastics (not including PVC), paper cardboard, labels, and other corrugated materials. These fractions are separated by different processing steps, such as screening, air classification, ballistic separation, separation of ferrous and non ferrous materials, glass, stones and other foreign materials and shredding into a uniform grain size, or also pelletized in order to produce a homogeneous material which can be used as substitute for fossil fuels in e.g. cement plants, lime plants, coal fired power plants or as reduction agent in steel furnaces. So here is RDF Pellet mill introducion :
Quick Advantage of RDF pellet mill :
- No roller bearing in the chamber
- Whole machine thin oil lubrication system
- Special press roller shaft combined with shaft design (planetary mode)
- Reinforced gear box + world-class gear processing technology
The technical data :
| Model | KLF880 |
| Dimension | 4000*2000*2400 |
| Main power | 200kw |
| Ring Die size | Inner 880mm |
| Support power | 7.5kw |
| Pelletizig chamber | no roller bearing in rollers |
| Running temperature | ≤80℃ |
| Roller adjust | Manual |
| Weight | 14ton |
| Running noise | ≤80分贝 |
| Lubrcating method | oil free |
| Cooling method | Oil cooling |
| Output | 3-4t/h |
| Running time | 24hours |
Pellet Mill is suitable to make RDF pellets with the diameters of 22mm, 24mm and 28mm, customers can use different diameters ring die to produce suitable pellets according to the actual requirements.

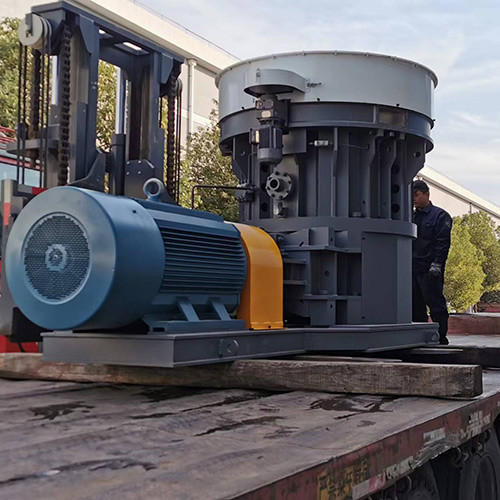

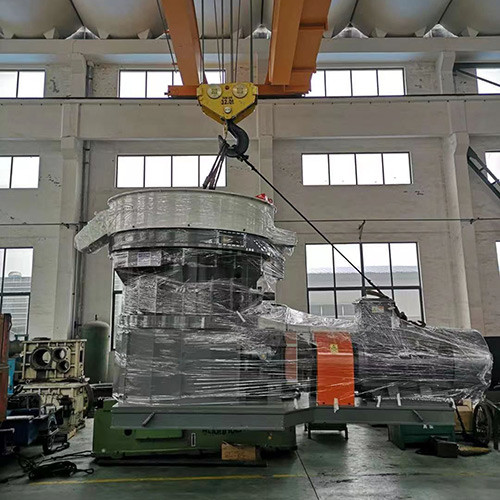

Application show :
