880mm Paper Mill Sludge RDF Pellet Mill

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xItems | RDF Pellet Mill | Name | Paper Sludge Pellet Mill Machine Oil Cooling KLF880 |
---|---|---|---|
Application | Paper Sludge | Output | 3-4t/h |
Total Power | 200kw ,8p | Ring Die Size | 880mm |
Stuff Training | Free | Rollers | 3 Rollers |
Highlight | 880mm RDF Pellet Mill 200kw,3TPH RDF Pellet Mill,200kw paper mill sludge |
Paper Sludge Pellet Mill Machine Oil Cooling KLF880
- The pressure roller shaft has a built-in box, and no butter is required.
- The whole oil cooling adopts a constant temperature plate cooling system, the oil temperature is constant, and the production is worry-free.
- The double-turbo adjustment of the pressure roller is easy to operate and the adjustment is more accurate.
- The oil temperature control system adopts automatic temperature control alarm.
- High efficiency, energy saving, under the same power, the production capacity is increased by 30% compared with other models.
- The double-layer design of the ring mold, one mold is dual-purpose, and the technology is environmentally friendly.
- Wide range of material moisture (12%-25%)
- The precision production of ring die and pressure roller can save 50-70% of the cost compared with other equipment. Without grease, it saves 3-5 usd in production costs compared to other equipment.
- The equipment has low failure rate and extremely low maintenance cost.
- Wide range of materials: sawdust, straw, bagasse, eucalyptus bark, peanut husk, rice husk, miscellaneous wood, bamboo, etc.
Paper is made from raw materials containing cellulose fibers, generally wood, recycled paper, and agricultural residues.
Paper waste means newspapers, magazines, cardboard and any other form of paper which is free of contaminated matter and is capable of being recycled;As we know, 90% of paper products are made from wood, and 43% of harvest wood are made into paper products. In this term, Paper recycling contributes to saving wood resources.
Making waste paper into paper pellets is a better solution.
The technical data :
Model | KLF880 |
Dimension | 4000*2000*2400 |
Main power | 200kw |
Ring Die size | Inner 880mm |
Support power | 7.5kw |
Pelletizig chamber | no roller bearing in rollers |
Running temperature | ≤80℃ |
Roller adjust | Manual |
Weight | 14ton |
Running noise | ≤80分贝 |
Lubrcating method | oil free |
Cooling method | Oil cooling |
Output | 3-4t/h |
Running time | 24hours |
Paper Pellet Mill is suitable to make paper pellets with the diameters of 22mm, 24mm and 28mm, customers can use different diameters ring die to produce suitable pellets according to the actual requirements.

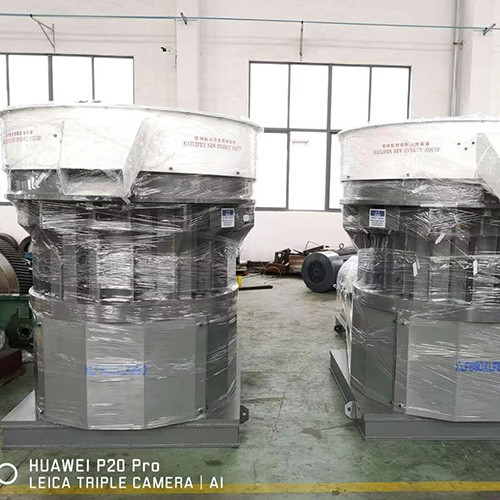

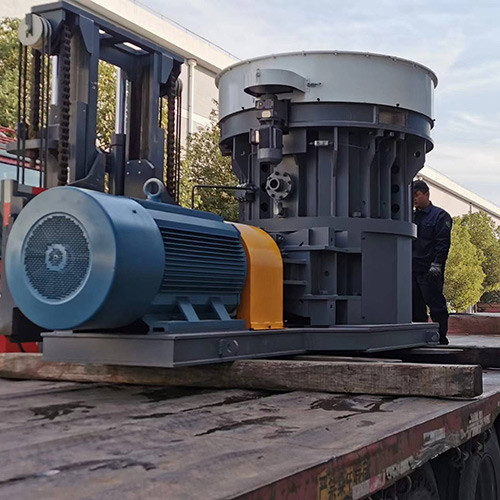

Details Highlight of waste pellet mill :

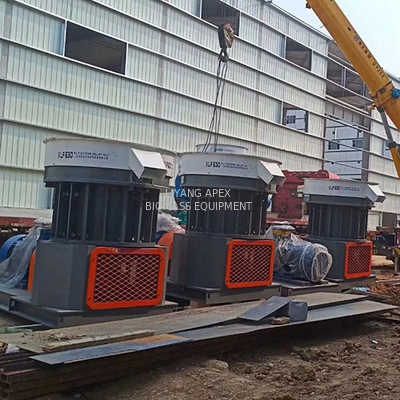

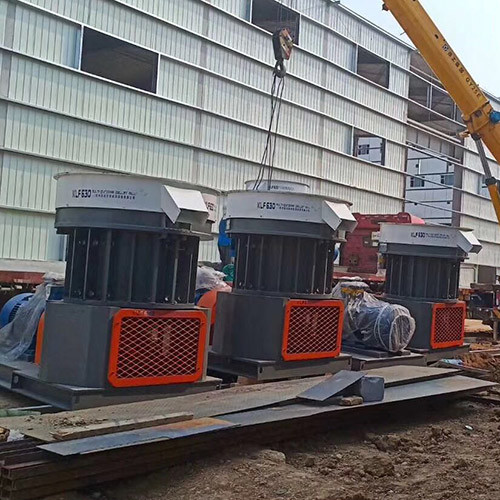

Application show :
