45# Mn 20mm Big Wood Crushing Machine 20TPH Fixed Waste Wood Crusher Machine
| Place of Origin | JIangsu China |
|---|---|
| Brand Name | APEX BIOMASS |
| Model Number | HX |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation |
| Delivery Time | 25 working days after deposit |
| Payment Terms | T/T, L/C |
| Supply Ability | 15 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Items | Wood Crushing Machine | Name | Big Wood Log Crushing Machine Fixed Wood Crusher 20t/h |
|---|---|---|---|
| Wood Crusher Type | Fixed Hammer Wood Crusher | Control | Electric Plc Control |
| Power | 380V/50hz Can Be Customzied | Output | 20t/h |
| Screening Mesh | 10mm ,20mm Be Customized | ||
| Highlight | Mn steel Wood Crushing Machine,20mm Wood Crushing Machine,20TPH waste wood crusher machine |
||
Product Description

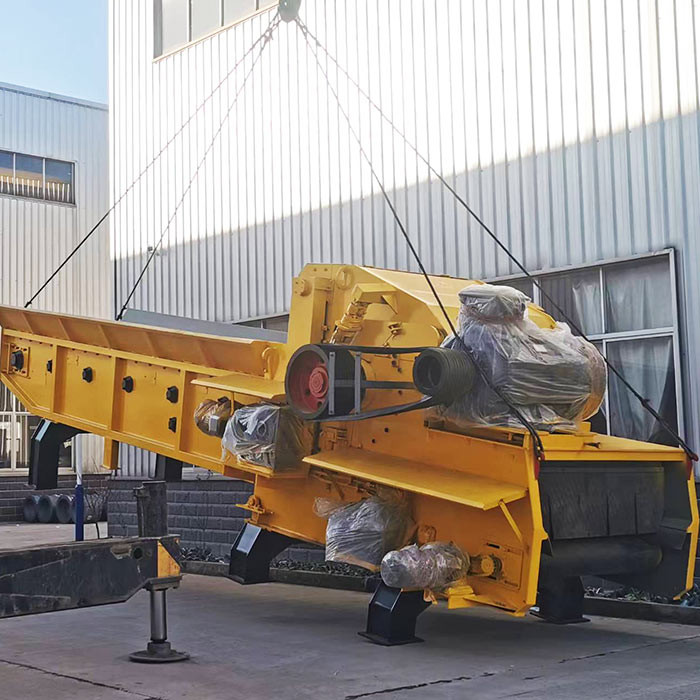

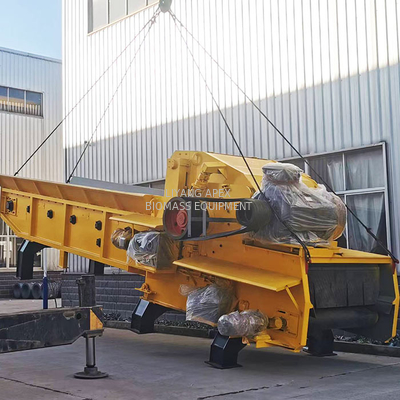

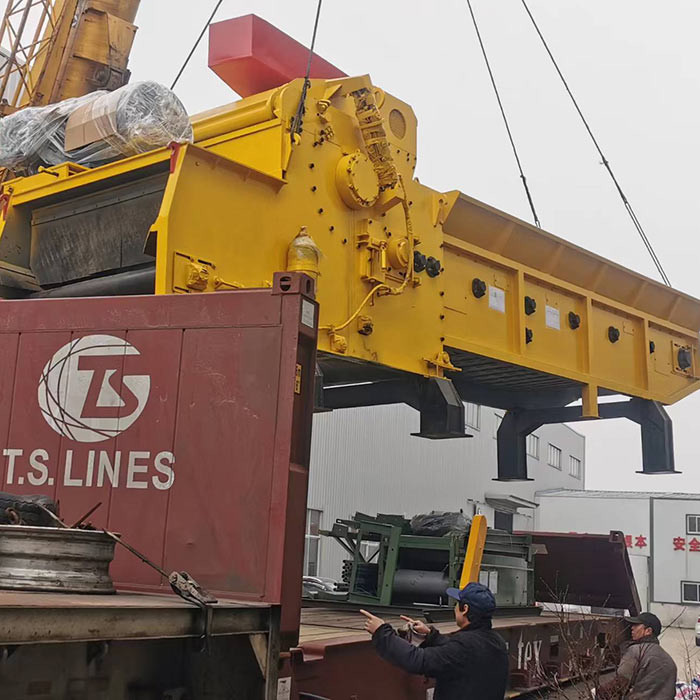

Big Wood Log Crushing Machine Fixed Wood Crusher 20t/h
The highligh of wood log crusher machine :
- Chain belt conveyor feeding ,Q345 steel plate material.(Wood crusher adopts chain plate type intelligent feeding which is guarantee smooth feeding to increase feeding speed .
- Iron removal device.
- The machine can smash wood with nails, and install an iron removing device at the discharge end of the machine to separate the wood from the nails
- Feed roller adopts 45# Mn steel, with strong abrasion and precise bite force, the strength and performance higher than welded parts.
- Hammers of Wood Crusher,hard wood, wood pallets, waste building templates or other wood, for large wood crusher, the chipping room will equip with hammers instead of traditional knifes.
wood log crusher machine is mainly used to crush large-diameter wood materials, such aswood trees ,wood logs , stumps, roots, trunks, various branches and other wood materials. It can also be used to crush packaged straw.
The operation principle of the wood pallet crusher also drives the rotor to run at a high speed under the link of the three-belt through the supporting power to crush the materials. The rotor disc of this machine is divided into two parts.
One is hammer type, and the other is blade type. The hammer type rotor is suitable for crushing pallets, building templates, these plate materials with a small number of nails, blade rotationThe sub is suitable for broken branches, sticks and some rounds with larger diameters.
Technical Parameter :
| Type | HX4000 | HX5000 | HX6000 | HX7000 | HX8000 |
| Roller Spped (r/min) | 650 | 800 | 800 | 800 | 560 |
| Roller Diameter (mm) | 800 | 800 | 800 | 1100 | 1400 |
| Blade/Hammer QTY | 4/24 | 4/28 | 4/30 | 4/36 | 4/46 |
| Main Power (kw) | 160 | 200 | 250 | 280 | 400 |
| Capacity (t/h) | 10-15 | 15-20 | 20-30 | 30-50 | 50-70 |
| Feeding Size (mm) | 1260*600 | 1400*600 | 1600*600 | 1600*800 | 2000*1000 |
| Feeding Method | Chain feeding | ||||
| Total weight (t) | 15 | 17 | 21 | 28 | 51 |
| Outsize(m) | 8*2.45*2.48 | 8.1*2.35*2.5 | 9.3*2.8*3 | 10.8*2.8*3.4 | 13.3*3.15*3.9 |
Application Raw Material ；
wood log crusher machine is widely used in the pretreatment stage of biomass pellet processing plants, waste template processing plants, bamboo plywood processing plants, wood-based panel plants, composite board plants, power plant boiler raw material combustion, etc., as well as individual wood processing plants.
The spare parts of wood machine :
Spare Parts---Rotary Knife
65# manganese steel, anti-wearing, prolonging service life, which can cut hard wood.
Blade thickness 20mm, thin 1mm per grinding. Lifetime:4-6 months
Spare Parts---Fixed Knife
Material: 45# manganese steel Lifetime: around 400-600h
