Q345 Multi Function Wood Crushing Machine 15mm Mesh Wood Pallet Shredder Machine
| Place of Origin | JIangsu China |
|---|---|
| Brand Name | APEX BIOMASS |
| Model Number | HX |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation |
| Delivery Time | 25 working days after deposit |
| Payment Terms | T/T, L/C |
| Supply Ability | 15 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Items | Wood Crushing Machine | Name | Multi-function Wood Pallet Shredder Machine HX5000 |
|---|---|---|---|
| Application | Wood Shredding | Application Site | Wood-based Panel Plants, Composite Board Plants, Power Plant Boiler |
| Blade Raw Material | 65# Manganese Steel | Sparts Parts | Hammer Blade |
| Screening Mesh | Standard 15mm | ||
| High Light | Q345 Wood Crushing Machine,Multi Function Wood Crushing Machine ODM,15mm Mesh wood pallet shredder machine |
||
Product Description

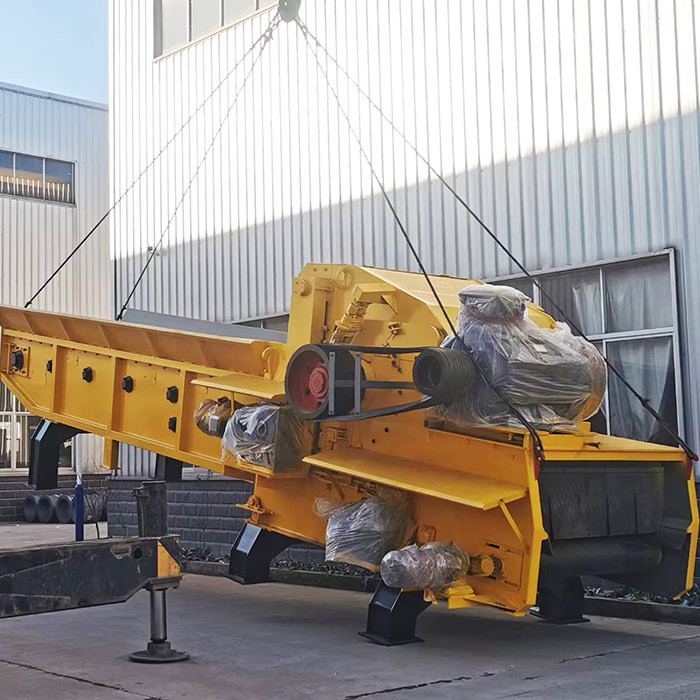

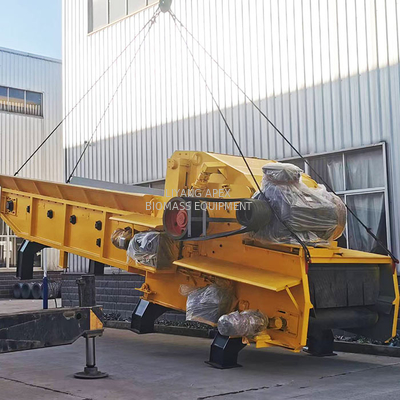

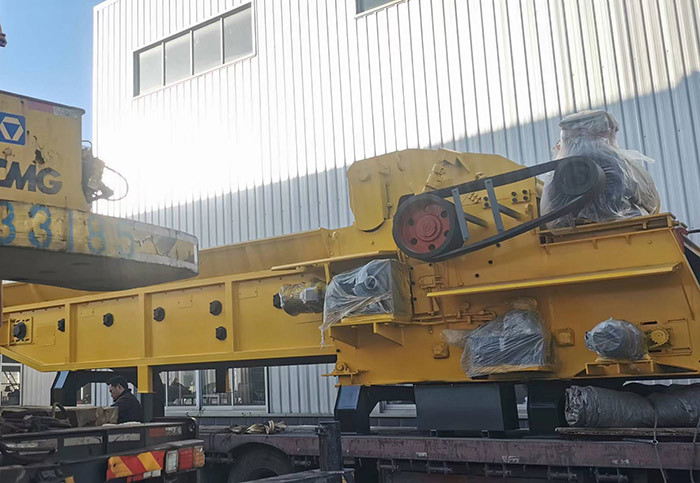

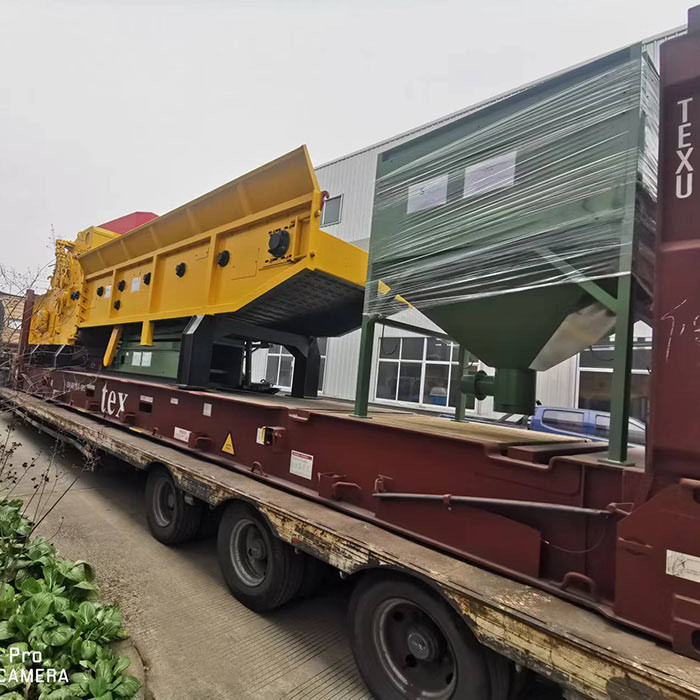

Multi-function wood Pallet Shredder Machine HX5000
wood Pallet Shredder Machine,also known as wood crushing machine , widely used in crushing various raw materials, such as building template, wasted wood pallet, tree bark, slabs, off cuts, branches, straw and so on. It is a professional waste wood processing and recycling equipment. It can be suitable for biomass power plant, paper mill and individual wood processing plants.La
Quick checking of wood Pallet Shredder Machine
- Chain belt conveyor feeding ,Q345 steel plate material.(Wood crusher adopts chain plate type intelligent feeding which is guarantee smooth feeding to increase feeding speed .
- Iron removal device.
- The machine can smash wood with nails, and install an iron removing device at the discharge end of the machine to separate the wood from the nails
- Feed roller adopts 45# Mn steel, with strong abrasion and precise bite force, the strength and performance higher than welded parts.
- Hammers of Wood Crusher,hard wood, wood pallets, waste building templates or other wood, for large wood crusher, the chipping room will equip with hammers instead of traditional knifes.
The operation principle of the wood pallet crusher also drives the rotor to run at a high speed under the link of the three-belt through the supporting power to crush the materials. The rotor disc of this machine is divided into two parts.
One is hammer type, and the other is blade type. The hammer type rotor is suitable for crushing pallets, building templates, these plate materials with a small number of nails, blade rotationThe sub is suitable for broken branches, sticks and some rounds with larger diameters.
Technical Parameter :
| Type | HX4000 | HX5000 | HX6000 | HX7000 | HX8000 |
| Roller Spped (r/min) | 650 | 800 | 800 | 800 | 560 |
| Roller Diameter (mm) | 800 | 800 | 800 | 1100 | 1400 |
| Blade/Hammer QTY | 4/24 | 4/28 | 4/30 | 4/36 | 4/46 |
| Main Power (kw) | 160 | 200 | 250 | 280 | 400 |
| Capacity (t/h) | 10-15 | 15-20 | 20-30 | 30-50 | 50-70 |
| Feeding Size (mm) | 1260*600 | 1400*600 | 1600*600 | 1600*800 | 2000*1000 |
| Feeding Method | Chain feeding | ||||
| Total weight (t) | 15 | 17 | 21 | 28 | 51 |
| Outsize(m) | 8*2.45*2.48 | 8.1*2.35*2.5 | 9.3*2.8*3 | 10.8*2.8*3.4 | 13.3*3.15*3.9 |
Application Raw Material ；
wood Pallet Shredder Machine is widely used in the pretreatment stage of biomass pellet processing plants, waste template processing plants, bamboo plywood processing plants, wood-based panel plants, composite board plants, power plant boiler raw material combustion, etc., as well as individual wood processing plants.
The spare parts of wood Pallet Shredder Machine
Spare Parts---Rotary Knife
65# manganese steel, anti-wearing, prolonging service life, which can cut hard wood.
Blade thickness 20mm, thin 1mm per grinding. Lifetime:4-6 months
Spare Parts---Fixed Knife
Material: 45# manganese steel Lifetime: around 400-600h
