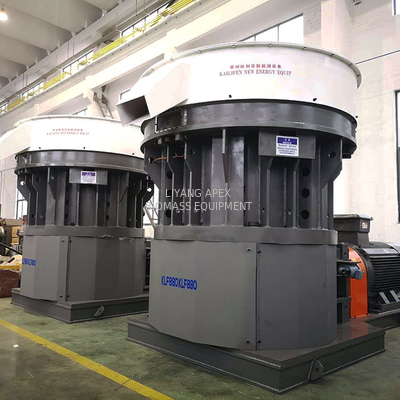

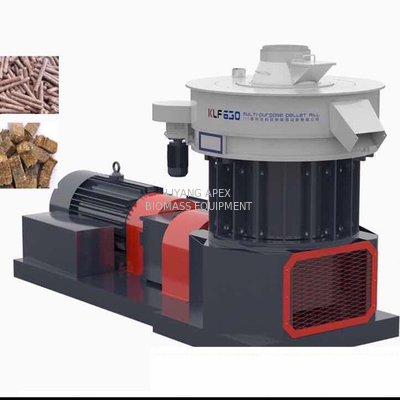

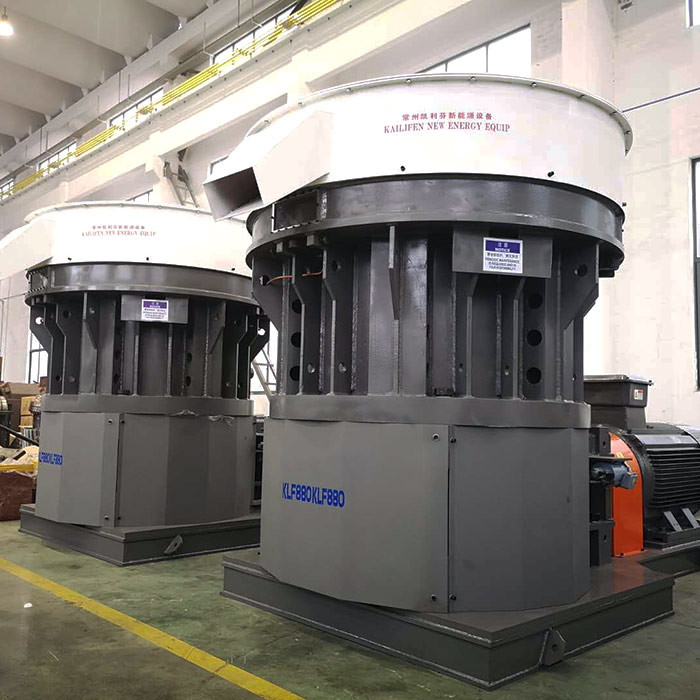

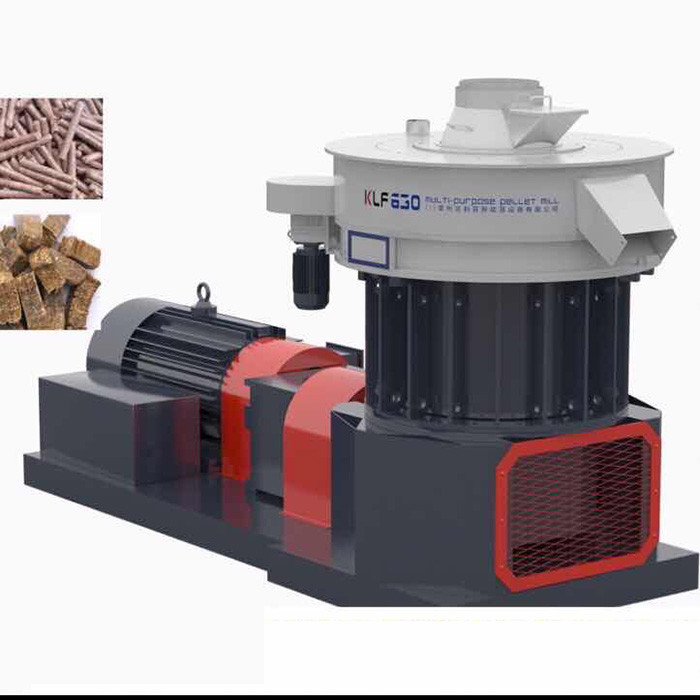

3 Roller 14.2ton Waste Wood Pellet Machine Paper Mill Plastic Waste

Plastic Paper Waste Pellet Mill Machine No Roller Bearing In the Chamber

Technical Paremater :

1.Type:KLF880(Vertical)
2.Main motor:200KW
3.Capacity:3-4t/h
5.weight:14.2t
6.Dimesion(mm):4000*2000*2400
7.Roller mode :3 roller/self-lock
Cooling method:water cooling or oil cooling,the roller bearing is guaranteed for 2 years .

SGS paper mill plastic waste

Highligh Advantage of Plactic paper  pellet mill  Machine :

• More economical operation; The wearing parts of the whole machine are only the roller shell and ring die, which saves 40% of the cost of wearing parts compared with the traditional pellet mill .
•  Strong adaptability of materials; The unique feeding and pressing chamber structure is suitable for different types from ordinary biomass (such as wood shavings, crushed materials, wood chips, bamboo chips, rice husks, etc.), paper and plastic, to fiber, and one machine can be used for multiple purposes to reduce the granulation risk caused by the change of raw materials.
•  The roller bearing is durable; The pressure roller bearing is guaranteed for 2 years. The whole machine adopts the factory's class a precision bearing, which has the highest bearing pressure in the industry, low heating coefficient, stable operation and worry free 24-hour operation.
• Straw does not need to be finely crushed; Forced feeding without power source and super large pressing chamber structure perfectly adapt to coarse straw materials. Straw materials can be easily granulated without fine powder, and the cost of straw crushing can be reduced by 50%.
•  24-hour operation; The unique heat exchange system of the whole series of products can fully meet the 24-hour continuous operation under harsh conditions and provide supporting services for high standard owners.

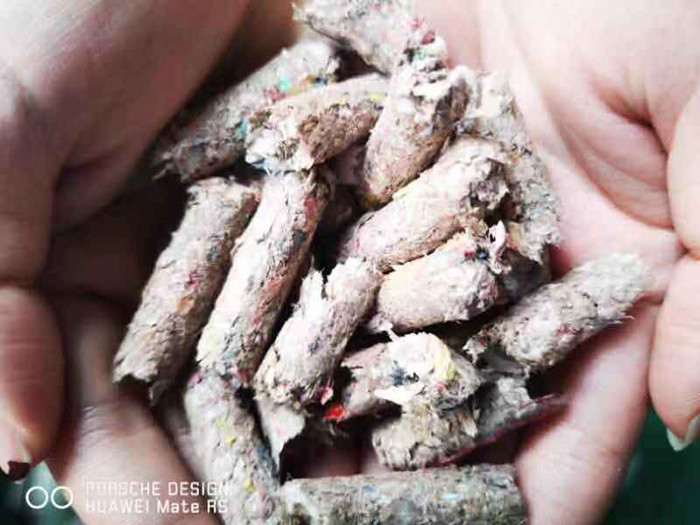

Why our pellet mill can press the plastic paper waste to pellet ?

We only use a professional cooling system to solve the temperature control problem of the whole machine, which is small in size and high in efficiency;

The surface temperature of the pressure roller shell is maintained at about 90 ° C, the ring die temperature is 90 to 110 ° C, and the chassis oil temperature is 60 ° C;

Exclusive machine water cooling technology; online oil filtration system;

As mentioned above, we are not sealing the assembly as a one-piece package (this requires replacement of the entire press roll assembly, which is expensive), and does not only separate the bearings and separately lubricate them (requires separate cooling devices) , cost and energy consumption increased), we integrated it into the gear box, using gear oil lubrication.

The pelleting chamber space is more than 2 time, and the material adaptability is more extensive.It can be adapted to the granulation of bulk or long fiber clogging materials (such as palm silk, eucalyptus, large shavings and complex plastics, garbage, etc.) without the need for fine pulverization of materials.

Contact us to get the quotation .
