2.2kw Double Twin Shaft Sand Auger Vertical Screw Conveyor

Products

2.2kw Double Twin Shaft Sand Auger Vertical Screw Conveyor

MOQ:	1set
Price:	Negotiable
Standard Packaging:	Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation
Delivery Period:	about 20-25working days
Payment Method:	L/C, T/T
Supply Capacity:	30 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

JIangsu China

Brand Name

APEX BIOMASS

Model Number

Items:

Inclined Belt Conveyor

Name:

Double Twin Shaft Auger Screw Conveyor For Sawdust Conveying

Type:

Double Twin Shfat Screw

Usage:

Sawdust Wood Chips Conveyinf

Power:

2.2kw

Material:

Carbon Steel

The Length:

Customized According To The Working Site .

Highlight:

2.2kw vertical screw conveyor

315mm vertical screw conveyor

Twin Shaft sand auger conveyor

Product Description

Duble Twin Shaft Auger Screw Conveyor for Sawdust Conveying

Brife Introduction

1. Twin shaft auger screw conveyor is a continuous conveying equipment and widely used in metallurgy, building materials, chemical engineering department, food processing and machinery etc..here we used to conveying the sawdust ,wood chips and other biomass raw material in pellet production line .

2. When the inclination angle less than 20 degrees,it is suitable to convey low viscosity, non perishable, non caking, granular and powdered, pieces of material.

Working principle

Twin Screw feeder is a kind of continuous conveying equipments with spiral blade rotation to push the material forward, suitable for conveying Cereals, flour, cement, chemical fertilizer, slag, sand, stone, coal, small coal and other materials.The material can be discharged at the proper outlet at the bottom of case . Conveyor with simple construction, be able to feed and discharge in many position, it is easy to operate, have a good seal.

Main technical parameter :

Model	double shaft auger conveyor
Length	1000-14000mm/customized
Diameter	135/219/315mm/customized
Power or motor	1.1/1.5/3.7/4.4 kw/depends on your model
Capacity	85-162m³/h
Speed	customized
Frame material	stainless steel/carbon steel/galvanized steel

How to confirm the model and price:

The capacity(Tons/Hour) that you require?
The conveying distance or the conveyor length?
The conveying angle?
What’s the material to be convey?
The specific gravity ? the moisture content?
Other special requirement, like hopper etc.
It is better if you have layout drawing or sketch .

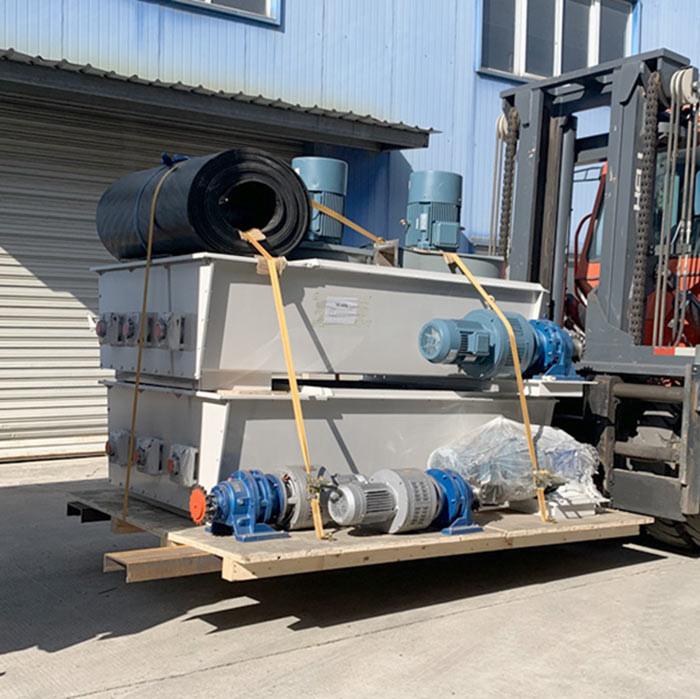

2.2kw Double Twin Shaft Sand Auger Vertical Screw Conveyor 0

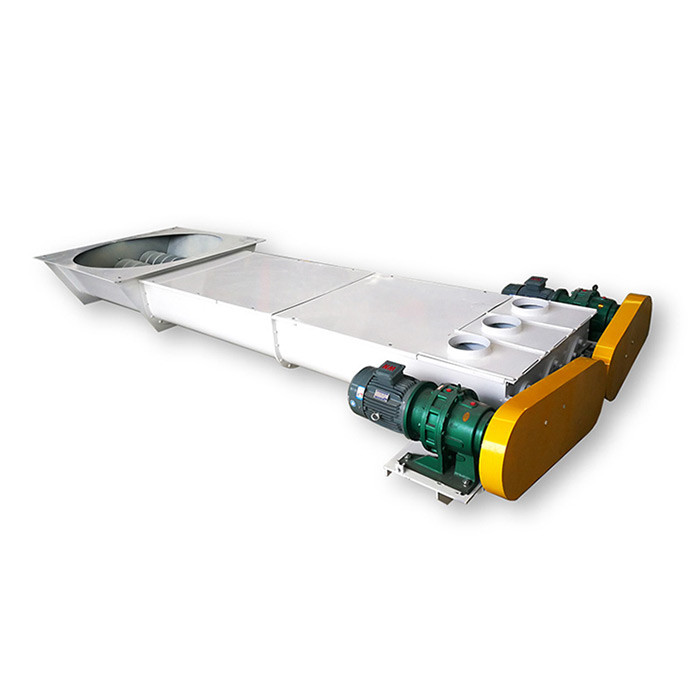

2.2kw Double Twin Shaft Sand Auger Vertical Screw Conveyor 1
