PRODUCTS DETAILS

Home > Products >

219mm 10 To 80TPH Stainless Steel Flexible Screw Auger Conveyor For Wood Chips

Products

219mm 10 To 80TPH Stainless Steel Flexible Screw Auger Conveyor For Wood Chips

MOQ:	1set
Price:	Negotiable
Standard Packaging:	Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation
Delivery Period:	about 15 working days
Payment Method:	L/C, T/T
Supply Capacity:	30 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

JIangsu China

Brand Name

APEX BIOMASS

Types:

Screw Conveyor

Name:

LFlexible Screw Auger Conveyor 219mm For Wood Chips

Capacity:

10-80t/h

Diameter:

168/219/312mm

Quick Parts:

Hanging Parts Etc

Groove Width:

250mm

Raw Material:

Carbon Steel Or SS Steel

Highlight:

219mm Flexible Screw Auger Conveyor

10TPH Flexible Screw Auger Conveyor

80TPH stainless steel screw auger conveyor

Product Description

Flexible Screw Auger Conveyor 219mm for Wood Chips

Sccrew /auger conveyor is one of the main material conveying equipment for complete biomass pellet production line. TLSS series screw conveyors use spiral blade rotation to promote the bulk material to complete the conveying process, it can be horizontal or inclined (inclination angle of less than 20 °) to convey powder, granular or small pieces of material, can not transport large pieces of corrosive, fragile or easy to bond to a fiber material block.

Features

1. Simple structure, small cross-sectional size, and good sealing performance;

2. It can be loaded and unloaded on the entire length;

3. It can also be conveyed in two directions in the same machine slot;

4. The operation is safe and convenient, and the manufacturing cost is low;

5. It has the function of mixing and loosening materials at the same time during the conveying process;

6. According to user requirements, it can be equipped with auxiliary mechanisms such as bottom sweeping door, anti-blocking door and electrical control system.

The main technical parameter:

Model	Screw auger conveyor
Length	1000-14000mm/customized
Diameter	135/219/315mm/customized
Power or motor	1.1/1.5/3.7/4.4 kw/depends on your model
Capacity	85-162m³/h
Speed	customized
Frame material	stainless steel/carbon steel/galvanized steel

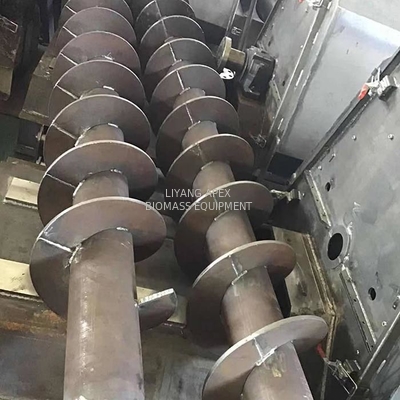

219mm 10 To 80TPH Stainless Steel Flexible Screw Auger Conveyor For Wood Chips 0

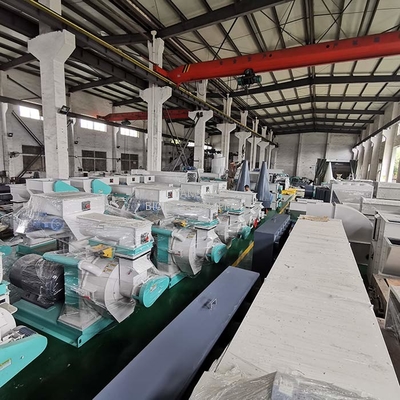

The project show :

219mm 10 To 80TPH Stainless Steel Flexible Screw Auger Conveyor For Wood Chips 2
