24hr Industrial Wood MSW RDF Pellet Mill 3t/H KLF880 For Waste Pellet Making
| Place of Origin | CHINA |
|---|---|
| Brand Name | APEX BIOMASS |
| Certification | CE SGS |
| Model Number | KLF880 |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | 2*KLF880 IN one 20GP . Plywood or metal case if spare parts |
| Delivery Time | 30-35 working days |
| Payment Terms | T/T, L/C |
| Supply Ability | 15 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Items | RDF Pellet Mill | Name | MSW Pellet Mill For Waste Pellet Making 3t/h KLF880 |
|---|---|---|---|
| Model | KLF880 | Raw Material Request | Size Under 20mm ,water Content Under 20% |
| Raw Material Including | Waste Paper Plastic ,cloth ,cotton Stuff Etc | Oil Seal | Imported Brand . |
| Main Shaft | Lifetime Warranty | Colors | Can Be Customized |
| High Light | apex MSW RDF Pellet Mills,apex RDF Pellet Mills 3t/h,apex 24hr industrial wood pellet mills |
||
Product Description

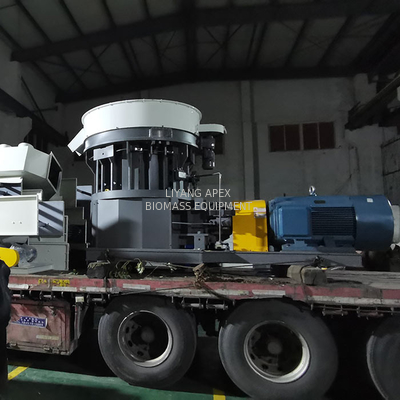

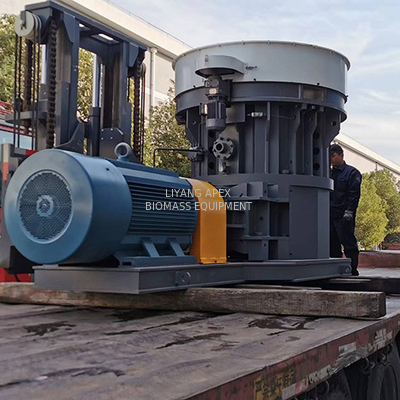

MSW Pellet Mill For Waste Pellet Making 3t/h KLF880
This MSW Pellet mill is most eye-catching is to solve the biggest problem of the global pellet mill, burning the roller bearings and using high-cost grease. Subvert the structure and design concept of traditional pellet mill, adopt precise gear transmission, press roller without bearing, and no need for grease, energy saving and environmental protection; unique three-roller setting and high-precision planetary carrier can easily drive the material to form. The bearingless design of the pressure roller realizes continuous 24-hour non-stop work; the pressure roller is made of high-performance steel after forging, and its service life is several times that of similar products.
The introduction of MSW Pellet mill
1. The pressure roller shaft has a built-in box, and no butter is required.
2. The whole oil cooling adopts a constant temperature plate cooling system, the oil temperature is constant, and the production is worry-free.
3. The double-turbo adjustment of the pressure roller is easy to operate and the adjustment is more accurate.
4. The oil temperature control system adopts automatic temperature control alarm.
5. High efficiency, energy saving, under the same power, the production capacity is increased by 30% compared with other models.
6. The double-layer design of the ring die, one ring die is dual-purpose, and the technology is environmentally friendly.
Wide range of material moisture (12%-25%)
7. The precision production of ring die and pressure roller can save 50-70% of the cost compared with other equipment. Without grease, it saves 3-5 usd in production costs compared to other equipment.
8. The equipment has low failure rate and extremely low maintenance cost.
9. Wide range of materials: waste ,sawdust, straw, bagasse, eucalyptus bark, peanut husk, rice husk, miscellaneous wood, bamboo, etc
The technical data :
| Model | KLF880 |
| Dimension | 4000*2000*2400 |
| Main power | 200kw |
| Ring Die size | Inner 880mm |
| Support power | 7.5kw |
| Pelletizig chamber | no roller bearing in rollers |
| Running temperature | ≤80℃ |
| Roller adjust | Manual |
| Weight | 14ton |
| Running noise | ≤80 |
| Lubrcating method | oil free |
| Cooling method | Oil cooling |
| Output | 3-4t/h |
| Running time | 24hours |
MSW Pellet mill is suitable to make pellets with the diameters of 22mm, 24mm and 28mm, customers can use different diameters ring die to produce suitable pellets according to the actual requirements.
RDF /SRF waste pellet application :
1. Cement kilns ·
2. RDF power plants ·
3. Coal-fired power plants ·
4. Industrial steam/heat boilers ·
5. Pellet stoves
Waste material mixtures containing of many high calorific value products, such as paper/ plastic and other foreign materials like silica, can make this product a valuable type of pellet for the bioenergy industry.The calorific value ranges from 20900-41800 kJ/kg.
As we know, 90% of paper products are made from wood, and 43% of harvest wood are made into paper products. In this term, Paper recycling contributes to saving wood resources.And those wood waste is kind of high caloric value most be made pellet in power plant ,electric generated ,heating centre . So make the paper waste into paper waste pellete is a good recycling way .
And Paper waste means newspapers, magazines, cardboard and any other form of paper which is free of contaminated matter and is capable of being recycled.
Application show :
