120m2 Dust Collector Pellet Press Spare Parts
| Place of Origin | JIangsu China |
|---|---|
| Brand Name | APEX BIOMASS |
| Model Number | xmc |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation |
| Delivery Time | 15 working days after deposit |
| Payment Terms | T/T, L/C |
| Supply Ability | 15 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Items | Dust Collector | Name | Industrial Bag Type Air Jet Dust Collector For Workshop |
|---|---|---|---|
| Application | Dust Collecting | Model | XMC |
| Type | Air Jet | Sparts Parts | Bag Fiters |
| Highlight | 120m2 Pellet Press Spare Parts,XMC Pellet Press Spare Parts,air jet filter dust collector OEM |
||
Product Description

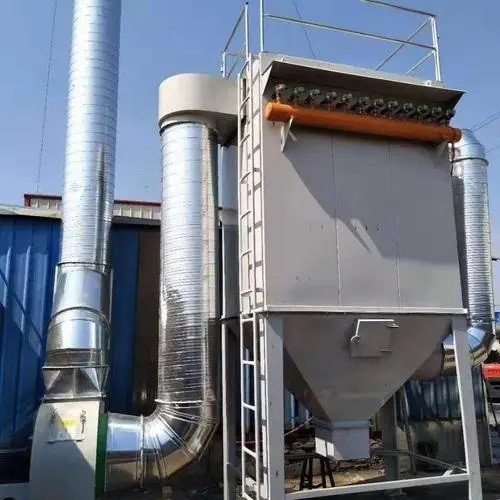

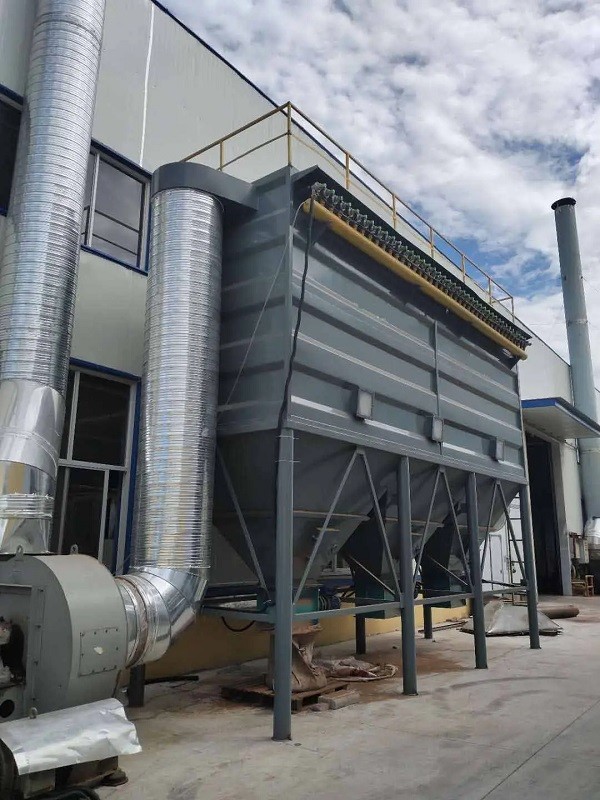

Industrial Bag Type Air Jet Dust Collector For Workshop
Bag air jet dust collecor suitable for dusty air cleaning and material dust collecting in the industries like wood pellet line ,metallurgy, construction, chemical and etc.
Air jet Dust Collector is a new type and high efficient bag filter that develops from the common short bag fpulse bag filter. It has the features like bigger air volume, stronger dust cleaning ability, high efficiency, easy operation and maintenance and etc. It is suitable for dusty air cleaning and maerial dust collecting in the industries like metallurgy, construction, chemical and etc.
| Type | XMC60-2 | XMC60-3 | XMC60-4 | XMC60-5 | XMC60-6 |
| Wind Volume (m3/h) | 6000-9500 | 9500-13000 | 13000-17000 | 17000-20000 | 20000-24000 |
| Filtration area (m2) | 120 | 180 | 240 | 300 | 360 |
| Filtering Wind speed(m/min) | 0.97-1.3 | 0.93-1.2 | 0.90-1.2 | 0.95-1.1 | 0.91-1.1 |
| Filter bags(bag) | 120 | 180 | 240 | 300 | 360 |
| Resistance(Pa) | ≤1200 | ||||
| Density of inlet(g/m3n) | ≤1300 | ||||
| Density of outlet(mg/m3n) | ≤50 | ||||
| Injection Pressure (MPa) | 0.5-0.7 | ||||
| Pressure(Pa) | 9000 | ||||
| Pulse valve No. (piece) | 10 | 15 | 20 | 25 | 30 |
|
Air consumption (m3/min) |
0.65 | 1.01 | 1.37 | 1.73 | 2.09 |
| Insulation area (m2) | 35 | 40 | 65 | 77 | 88 |
| Weight( kg) | 5300 | 6600 | 8450 | 10600 | 12400 |
| Power(KW) | 2.2 | 2.2 | 5.2 | 5.2 | 5.2 |
dust collector is customized accoring to your condition and requirement.
Quick advantage :
1.Advanced thin type lifting valve and off-line dust cleaning device can gurantee to collect the dust completely.
2.Reasonable design for air inlet evenly flow tube and dust hopper discharging device. This can resolve the problem the uneven air flow of each chamber.
3. Bigger volume air bag can be suitable for both high pressure and low pressure air supply.
4.Design of filtering bag is different according to different industry and application. The fabrication standards are increased at approx. 50% based on the industry standard.
