Introduction

Cassava root tubers are used as energy feed - cassava pellets, which have the same nutritional content as cassava. Cassava pellet feed is a widely used and cheap energy feed. It is the best energy (corn and wheat) substitute in the case of high grain prices and is widely recognized in feed. At present, it is mainly used in animal feed such as cattle, sheep, chickens, etc.

Main Specs of cassava pellet making machie

Highlight :

1. Water content can arrange from 10-20%.

2. No dust go into side of machine . If dust inside ,will change gear with much time and labor .

3. Easy maintenance . Less time to change pellet die and roller shell .

4. Pattent pellet mill .

Remarks

◆ The above capacity comes from 8mm Cassava pellets production.

◆ The final capacity of Cassava pellet mil machine depends on the features of raw materials, operation and maintenance,etc.

◆ There are 2 rollers in the pressing chamber.

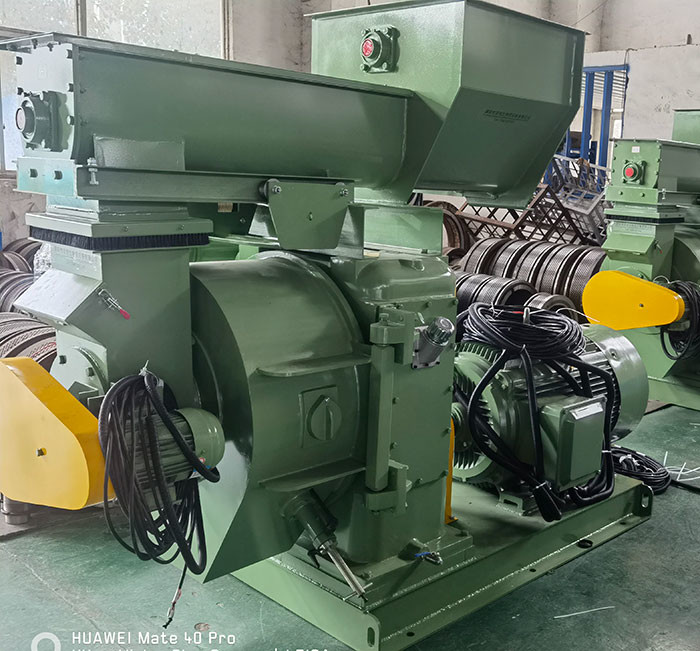

Structure of Cassava Pellet Making Machine

• 1. Frequncy control feeder screw with anti-caking device .
• 2. Imported gear box ,high processing accuracy .
• 3. Imported gear processing equipment to ensure long time use .
• 4. Safety Assembly- protecting the main shaft ,motor and ring die .
• 5. Modulating alloy steel of main shaft with good bending resistance and torsional performance .
• 6. Scraper panel assembly, with hard alloy knife to ensure the pellet surface quality .

(Compression Ratio= L/D L: Effective Die Hole Pelleting Length; D: Effective Die Hole Dia)
Generally speaking, the higher the compression ratio, the denser the finished pellets. But it does not mean that the higher the compression ratio, the better the pellet quality. Compression ratio should be calculated based on your raw material for making pellets. Commonly compression ratio is inversely proportion to the hardness of raw material, the harder the raw material, the smaller the compression ratio.

How to work of Cassava Pellet Making Machine

The cassave in the granulation bin is fed into the chute by the feeding auger, the material enters the wood press chamber through the forced feeder, and is fed into the two pressing areas in the ring die by the feeding scraper. Due to the high-speed rotation of the ring die The material is brought between the ring die and the pressure roller. Under the strong extrusion action of the ring die and the pressure roller, the material is gradually compacted and formed in the die hole. Because the extrusion of the material between the die rollers is continuous , so the formed material is continuously discharged from the die hole in a columnar shape, and then cut into particles of the required length by the cutter, and then enters the next process.

The Spare parts

1. Ring die :Pellet dies must resist abrasion, corrosion from chemical exposure and breakage caused by the physical stresses of pellet formation. The optimum die combines high resistance to abrasion, breakage and corrosion with maximum productivity. Our expertise enables us to precisely match the die specification to your required formulation, even if it means customizing a die pattern to meet your exact needs.


2. Roller shell :

Each die and roller assembly stay together as a unit, extending die and roller life and enabling easy storage and conversion.

Raw material :alloy steel .

Others such as five piece cover ,o ring ,main shaft etc

FAQ:

1. Will you help with installation and stuff training ?

Of course, we can send our skilled engineers to provide you entire service from the installation, commissioning and training.

2. How do you control the quality?

We insist "Quality is life” and always pay great attention to quality control from the beginning to the end. You can also be reassured by our one-year warranty and CE&BV&SGS Certificates.

3. Can you provide turn-key project?

Yes, we have enough experience in installing turn-key projects overseas.

4. Where is your factory located? How can I visit there?

Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai. You can fly to Shanghai airport or Nanjing Airport directly. All our clients, from home or abroad, are warmly welcome to visit us.

5. When can I get the price?

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
