3MM 10t/H Animal Feed Pellet Machine Pre Cleaning Drum Grain Screening Machine Grain
| Place of Origin | CHINA |
|---|---|
| Brand Name | APEX BIOMASS |
| Certification | CE SGS |
| Model Number | SCY |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation |
| Delivery Time | 15 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 30 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Items | Screener | Name | Pre Cleaning Grain Screening Machine Drum Grain Screener |
|---|---|---|---|
| Capacity | 1-10t/h As Demands | Screening Mesh Size | 10*10mm ,12*12mm,15*15mm Etc |
| Main Power | 1.5 Kw | Application | Grain Screening |
| Power | 380v ,50 Hz | Body Thickness | 3mm -6mm |
| Highlight | 3MM Animal Feed Pellet Machine,10t/h Animal Feed Pellet Machine,Drum grain screening machine |
||
Product Description

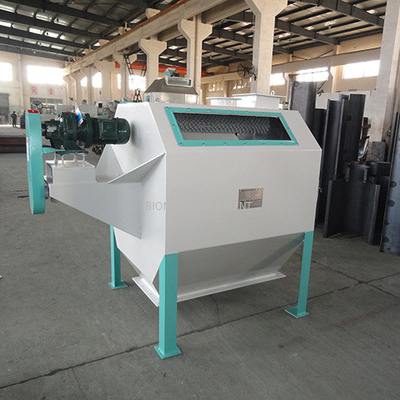

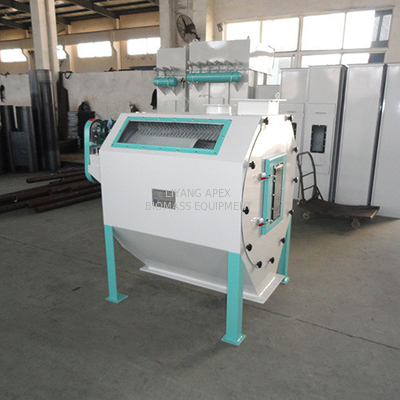

Pre Cleaning Grain Screening Machine Drum Grain Screener
The SCY pre cleaneing screening machine is used in flour mills, feed mills and grain silo and other industries. It is mainly used to remove large impurities, such as straw, straw, paper, corn leaves, corn cobs, etc. to protect the subsequent mechanical equipment in the process system from failure or damage.
The technical parameter :
| Main technical parameter | SCY63 | SCY80 | SCY100 |
| Rotation speed(rpm) | 21 | 17 | 12 |
| Screen Size(mm×mm) | 630×800 | 800×960 | 1000×1090 |
| Power(KW) | 0.55 | 0.75 | 1.5 |
| Capacity(t/h) | 10~15 | 15~30 | 30~50 |
| Dimensions(mm×mm×mm) | 1530×824×1210 | 1833×1000×1450 | 2255×1120×1660 |
| Weight(kg) | 290 | 382 | 618 |
Advantage:
1 It has good cleaning effect and high impurities removing efficcency. The efficiency of removing big impurities is higher than 99%. The big impurities do not contain complete granules or clean materials;
2 Horizontal contilever screen cylinder is adopted. Screen cylinder is divided into feeding section and discharging-sieving section. The use of different combinatin of screen holes can get ideal sieving efficiency;
3 Adverse feeding type is adopted. The discharging secion of screen cylinder is fitted with screw, which increase actual sieving length, reachinges sufficient sieving effectively prevents impurities from carrying clean materials;
4 The structure of inner sieving and outer brush cleaning is adopted. The fiber impurities and paddy straw are discharged in the shape of ball through guide screw and are cleaned automatically and reliably;
5 It has low power, high capacity, smooth and reliable running, convenient screen replacing and maintenance, compact structure and less floor space;
6 It is widely used for pre cleaning of raw materials in the industries of feed, oil, flour, rice milling,grain warehouse,food,ect.
FAQ:
1. Will you help with installation and stuff training ?
Of course, we can send our skilled engineers to provide you entire service from the installation, commissioning and training.
2. How do you control the quality?
We insist "Quality is life” and always pay great attention to quality control from the beginning to the end. You can also be reassured by our one-year warranty and CE&BV&SGS Certificates.
3. Can you provide turn-key project?
Yes, we have enough experience in installing turn-key projects overseas.
4. Where is your factory located? How can I visit there?
Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai. You can fly to Shanghai airport or Nanjing Airport directly. All our clients, from home or abroad, are warmly welcome to visit us.
5. When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
