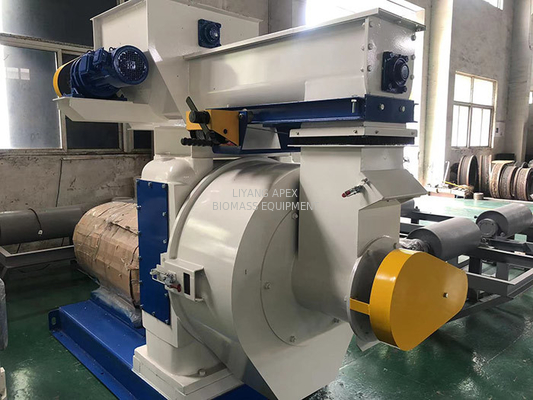

1t/H To 3t/H Biomass Wood Pellet Machine Portable Wood Pellet Mill
  • name

1t/H To 3t/H Biomass Wood Pellet Machine Portable Wood Pellet Mill

MOQ: 1set
Price: Negotiable
Standard Packaging: 2 sets pellet mill machine *1 20gp . spare parts packed by plywood case or iron case only .
Delivery Period: 15 working times
Payment Method: T/T, L/C
Supply Capacity: 10 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
APEX BIOMASS
Certification
CE SGS
Model Number
MZLH
Application:
Biomass Such As Wood ,animal ,waste Pellet Making
Capacity:
Unit 1-3t/h .
Spare Parts:
Ring Die ,roller Shell ,etc .
Power:
90-200kw
Name:
1t/h Pellet Mill Biomass Pellet Making Machine
Model:
420 508 650 880
Motor:
6p /8p
Ring Die:
Customized
Highlight:

1t/H biomass wood pellet machines apex

,

apex 3t/H biomass wood pellet machines

,

apex portable wood pellet mills

Product Description

1t/h Pellet Mill Biomass Pellet Making Machine



Quick Advantage :



1. High quality forging body for eternal life

2. Big gear adpot tooth grinding after hardening with perfect concentricity .

3. With Ring die hositing in pellet mill machine easy maintenance.

Description :

Peller mill is used to press the material into high density cylinder pellet with easy transportation and storage . The working priciple :
When the powders with different particle sizes are guided by the scraper in the pressing chamber into the pre-compression area between the actively rotating ring die and the driven rotating pressure roller, the material has a certain degree of looseness, and the material is squeezed by the ring die and the pressure roller so as to High density particles are formed.Pellet mill is divided into biomass and animal feed pellet machine according to different raw material .



Main technical parameters :



Model MZLH420 MZLH508 MZLH688
Capacity(t/h) 1-1.5 1.5-1.8 2-3
Main power (kw) 75/90 8/6P 110/132 8/6P 200 8/6P
Feeding Power (kw) 2.2 2.2 3
Ring Die Diameter (mm) 420 520 688
Pellet Diameter (mm) 6-12 6-12 6-12


Usage :

To biomass ,animal feed pellet making .

Biomass including agriculture waste ,wood waste etc .

1t/H To 3t/H Biomass Wood Pellet Machine Portable Wood Pellet Mill 0
