6mm To 12mm 2.5TPH Wood Sawdust Pellet Press Machine Horizontal Roller Mill
| Place of Origin | CHINA |
|---|---|
| Brand Name | APEX BIOMASS |
| Certification | CE SGS |
| Model Number | MZLH420/508/688 |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation |
| Delivery Time | 15-20 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | MZLH420 Horizontal Wood Pellet Press Machine | Raw Material | Grass, Rice Husk, Wood Sawdust, Biomass, Straw, Cotton Stalk |
|---|---|---|---|
| Motor | 75-200kw | Output(t/h) | Unit 1-3t/h . |
| Pellet Size | 6-12mm Customized | Type | 420 Ring Die Wood Pellet Press |
| Items | Screw Feeder Wood Pellet Press | Spare Parts | Ring Die ,roller Shell ,five Piece Cover Etc |
| High Light | apex 6mm sawdust pellet press machine,2.5TPH sawdust pellet press machine,apex 12mm horizontal roller mill |
||
Product Description

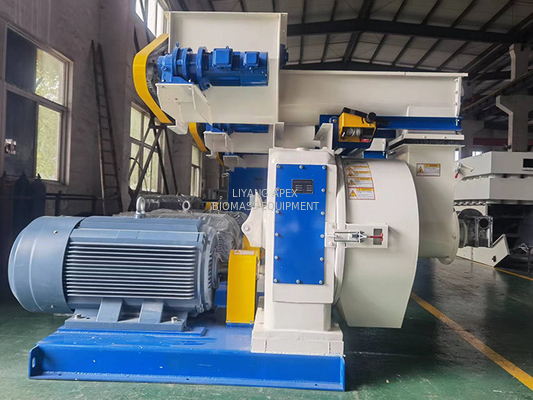

MZLH420 Horizontal Wood Pellet Press Machine
The wood pellet press machine: rice husk, peanut shell, melon seed shell, bamboo shavings, bagasse, palm shell; rubber, cement, ash residue of chemical raw materials; branches, bark, leaves, wood scraps; large furniture factories, In the wood factory, the sawdust produced by various woods in the production process, etc., are used as raw materials to be processed into the wood pellet press for renewable fuel pellet that will replace coal .
How is wood pellet press machine working ?
The raw material comes into the pelletizing chamber , meanwhile the ring die is rotating and driving the rolller shell ,under the action of moving ,the raw material enters to the hole of ring die and pressed by roller shell into the pellet and then cutted by the scrap .
The main technical parameter :
| Model | MZLH420 | MZLH508 | MZLH688 |
| Capacity(t/h) | 1-1.5 | 1.5-1.8 | 2-3 |
| Main power (kw) | 75/90 8/6P | 110/132 8/6P | 200 8/6P |
| Feeding Power (kw) | 2.2 | 2.2 | 3 |
| Ring Die Diameter (mm) | 420 | 520 | 688 |
| Pellet Diameter (mm) | 6-12 | 6-12 |
6-12
|
Quick Advantage :
1. The host box is made of cast iron. The box body is thick and durable without deformation; the gear shaft of the internal transmission parts and the large gear are hobbed by imported CNC gear hobbing machine, the gear is ground by imported CNC gear grinding machine after high frequency quenching, and the gear shaft is carburized and quenched by imported CNC gear grinding machine for grinding and meshing. Excellent precision, high transmission efficiency, low energy loss and low noise.
2. The door cover is made of stainless steel, which is strong and corrosion-resistant, and is equipped with a unique steam moisture absorption air path, which improves the moisture absorption effect. At the same time, it also improves the service life of wearing parts and reduces corrosion.
3. The feeding auger adopts U-shaped design. This structure design makes the material unloaded evenly, with less residue and no knots. Simple structure, convenient maintenance.
