1.5m3 Horizontal Wood Pellet Mill 3ton/H Counterflow Cooler MKLB
| Place of Origin | CHINA |
|---|---|
| Brand Name | APEX BIOMASS |
| Certification | CE SGS |
| Model Number | mklb |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation |
| Delivery Time | 15-20 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Items | Coolers | Name | Wood Pellet Feed Counterflow Cooler MKLB For Pellet Cooling |
|---|---|---|---|
| Model | MKLB1.5(12*12) | Cooling Volume | 1.5m3 |
| Produc Temp. After Cooling | <=3-5°C | Color | Customzied |
| Weight | 3ton ,4ton | ||
| Highlight | Wood Pellet Mill 3ton/h apex,apex MKLB Wood Pellet Mill,1.5m3 horizontal pellet mill |
||
Product Description

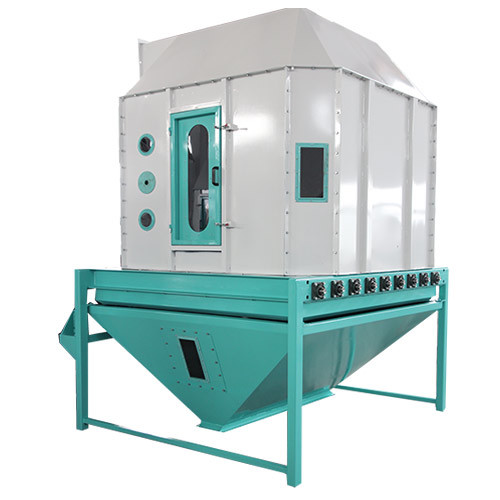

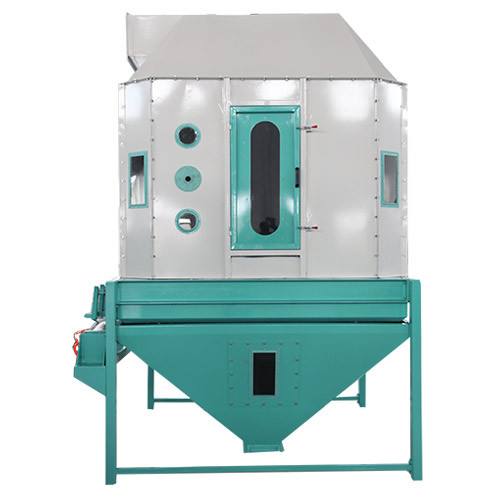

wood Pellet Feed Counterflow Cooler MKLB For Pellet Cooling
After the pelletizing process, the temperature of the wood pellet is about 60-80 degree, and the moisture content of the wood pellet is about 15%, so we need use cooler to reduce about 3-4% moisture, such this the wood pellet is easy to store.In the process,we choose SKLN series Counterflow Cooler.
Technical Parameter:
|
Model Item |
MKLB1.5 | MKLB2.5 | MKLB4 | MKLB6 | MKLB8 |
| Volumem³ | 1.5 | 2.5 | 4 | 6 | 8 |
| Capacityt/h | 3 | 5 | 10 | 15 | 20 |
| Cooling Time min | Less than 10-15Mins | ||||
| Temperature after Cooling | Not higher than ambient temperature +3-5°C | ||||
| Aspiration (m³/min.t) | 34 | ||||
| Powerkw | 0.75 | 1.1 | 1.5 | 1.5 | 1.5 |
| Power of Airlock (kw) | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 |
Quick Advantage :
1. The counter flow cooling principle is adopted to cool the pellets with high temperature and moisture. Hot air touches hot pellets and cool air touches cool pellets so as to avoid the pellet surface crack caused by sudden cooling produced by direct touching between cool air and hot pellets. At the same time, the airlock is used for feeding and space of air inlet bigger, therefore it can get better cooling effects.
2. Slide reciprocating discharger has smooth and reliable discharging, low residue.
3. Low power consumption, easily operation.
4. Pellet temperature after cooling is less than ambient temperature +3-5°C .
5. It is suitable for pellet cooling.
Working Principle :
Counterflow cooling method ,cool the high Temp and high water content pellet ,avoid te shock cooling when the cold air dierctly contact with hot pellet .
Generally details :
- After sale service: 7X24 hours
- Delivery time: 15 working days
- Qty of Container: 3-5pcs 40 HQ
- Port: Shanghai
- Shipment time: 7-15days to Asia, 22-25days to EU and other countries.
- Operator: 3-5workers if total line .
- Certificate: CE,ISO
Generally ,the cooler machine work with vibrating screening machine so that to get high quality pellet .
APEX BIOMASS EQUIPMENT is establised in 2003 in Liyang ,JInagsu Province ,which is a pioneer enterprise engaged in complete biomass /wood pellet production line ,feed machinery and engineering ,waste pellet mill ,pellete mill spare parts customization etc.Apex Biomass Equipment advantage is that owning experienced R&D team ,strict scientific mangement combined with ourself opening wood pellet factory experience and advanced processing equipment ,now we can manufacture high-class ,qualified machinery equipmet . Because of factory direct supply ,advanced deign and qucik after sales service ,customer orientation we has earned many customer at domestic and foreign good reputation , we sincerly do things and help customer solves problems ,we look forward your long terms business cooperation .
