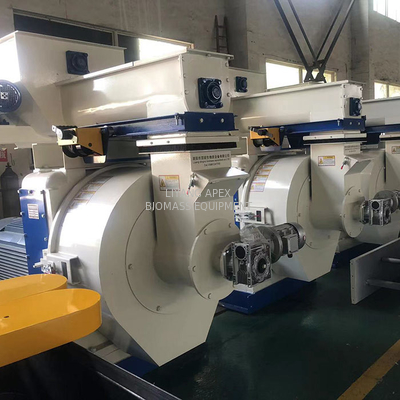

2TPH 3TPH Alfalfa Fuel Wood Pellet Mill Chips Grass 4t Hay Pellet Making Machine

  • 2TPH 3TPH Alfalfa Fuel Wood Pellet Mill Chips Grass 4t Hay Pellet Making Machine
Place of Origin CHINA
Brand Name APEX BIOMASS
Certification CE SGS
Model Number MZLH
Minimum Order Quantity 1set
Price Negotiable
Packaging Details Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation
Delivery Time 15-20 working days
Payment Terms L/C, T/T
Supply Ability 20 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Items Wood Pellet Mill Name Alfalfa Fuel Hay Rice Husk Chips Grass Biomass Sawdust Wood Pellet Mill
Model MZLH Output(t/h) 1t/h ,2t/h ,3t/h
Wood Pellet Mill Type Flat Die Wood Pellet Mill Color Customzied
Weight About 4ton
Highlight

apex 2TPH Wood Pellet Mills

,

2TPH Wood Pellet Mills apex

,

Wood Pellet Mills 2TPH apex
Leave a Message
Product Description

Alfalfa Fuel Hay Rice Husk Chips Grass Biomass Sawdust Wood Pellet Mill



The application :

Alfalfa Fuel Hay Rice Husk Chips Grass Biomass Sawdust Wood Pellet Making



Working Principle :

The raw material comes into the pelletizing chamber , meanwhile the ring die is rotating and driving the rolller shell ,under the action of moving ,the raw material enters to the hole of ring die and pressed by roller shell into the pellet and then cutted by the scrap .



Quick Advantage :

  • Gear driven.
  • Force feeder.
  • Safe protection mechanism for both workers and machines.
  • Siemens motor, imported bearings.
  • Alloy steel or all stainless steel ring die.
  • Auto cooling and oil adding lubrication system.
  • Controlled length of pellet.
  • Optional Conditioner.
  • Optional Intelligent automatic control system.
  • apex 2TPH Wood Pellet Mills
  • 3TPH Wood Pellet Mill
  • 4t hay pellet making machine

The main technical parameter :

Model MZLH420 MZLH508 MZLH688
Capacity(t/h) 1-1.5 1.5-1.8 2-3
Main power (kw) 75/90 8/6P 110/132 8/6P 200/185 8/6P
Feeding Power (kw) 2.2 2.2 3
Ring Die Diameter (mm) 420 520 688
Pellet Diameter (mm) 6-12 6-12

6-12





2TPH 3TPH Alfalfa Fuel Wood Pellet Mill Chips Grass 4t Hay Pellet Making Machine 02TPH 3TPH Alfalfa Fuel Wood Pellet Mill Chips Grass 4t Hay Pellet Making Machine 1

Details Ring die data of each pellet mill .



Model
MZLH420
MZLH508
MZLH688
Ring die inner diameter (mm)
420
500
688
Ring die working width(mm)
90
100
110
Ring die linear speed (m/s)
3.16
3.78
3.54
Number of clamp
3 pcs
3 pcs
8 pcs
Number of roller
2 pcs
2 pcs
2 pcs
Number of cutter
1 pcs
1 pcs
1 pcs
Motor power
90+2.2+0.75
90+2.2+1.5
185+3.0+1.5
Motor rotation speed
750
750
595
Ring die hole diameter(mm)
6/8/10
6/8/10
6/8/10





Generally details :

  • After sale service: 7X24 hours
  • Delivery time: 15 working days
  • Qty of Container: 3-5pcs 40 HQ
  • Port: Shanghai
  • Shipment time: 7-15days to Asia, 22-25days to EU and other countries.
  • Operator: 3-5workers if total line .
  • Certificate: CE,ISO
  • Size of workshop: the hength is 6-8M, the length and width depend on the capacity and flow diagram.







The structure of  Pellet Mill :

  • Frequncy control feeder screw  with anti-caking device .
  • Imported gear box ,high processing accuracy .
  • Imported gear processing equipment to ensure long time use .
  • Safety Assembly- protecting the main shaft ,motor and ring die .
  • Modulating alloy steel of main shaft with good bending resistance and torsional performance .
  • Scraper panel assembly, with hard alloy knife to ensure the pellet surface quality .

2TPH 3TPH Alfalfa Fuel Wood Pellet Mill Chips Grass 4t Hay Pellet Making Machine 2

T2TPH 3TPH Alfalfa Fuel Wood Pellet Mill Chips Grass 4t Hay Pellet Making Machine 3



The spare parts :



  • Ring die : Replaced when be abrasion.A good ring die can improve product quality and output, reduce energy consumption (granulation energy consumption accounts for 30%-35% of the total energy consumption of the entire workshop), and reduce production costs (the cost of pellet mill die loss accounts for 25%-30% of the maintenance cost of the entire production workshop). We ring die :Customized stainless steel and alloy steel, carburized surface ,imported processing equipment .

2TPH 3TPH Alfalfa Fuel Wood Pellet Mill Chips Grass 4t Hay Pellet Making Machine 4



  • Roller shell :Customized alloy steel matched our ring die ,higher capacity .
  • Five piece cover ,o ring ,oil seal etc .2TPH 3TPH Alfalfa Fuel Wood Pellet Mill Chips Grass 4t Hay Pellet Making Machine 5
