Wood Crusher Machine 50mm 400kw Paper Pellet Mill 80tph Wood Chipper Machine

Wood Crusher Machine 50mm 400kw Paper Pellet Mill 80tph Wood Chipper Machine

MOQ: 1set
Price: Negotiable
Standard Packaging: Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation
Delivery Period: 25-30 working days after deposit
Payment Method: T/T, L/C
Supply Capacity: 10 sets per month
Detail Information
Place of Origin
JIangsu China
Brand Name
APEX BIOMASS
Model Number
HX
Wood Crusher Output:
10-80t/h
Application:
Paper Mill /Timber Mill Etc
Raw Material:
Wood Slab ,wood Stick ,pallet Etc .
Main Power:
160-400kw
Discharging Size:
10-50mm
Items:
Large Wood Crusher Machine Paper Mill Wood Crushing Mill
Weight:
15-50ton
Feeding:
Chain Belt Type
Highlight:

50mm paper pellet mill

,

400kw paper pellet mill

,

80tph wood chipper machine

Product Description

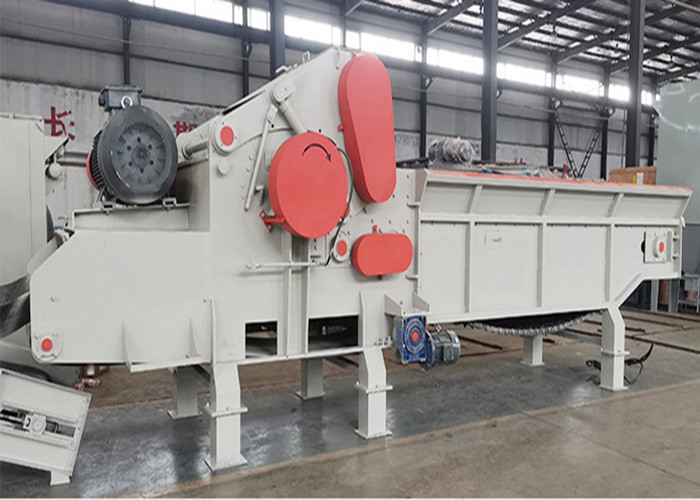

Large Wood Crusher Machine Paper Mill Wood Crushing Mill

Comprehensive wood crusher is a kind of wood processing equipment that can roughly crush large heads. Generally speaking, such equipment is often used for crushing building formwork,Large round plates, branches and branches, etc. In general, it is to crush some relatively large wood, dead branches, etc.
The operation principle of the wood crusher also drives the rotor to run at a high speed under the link of the three-belt through the supporting power to crush the materials. The rotor disc of this machine is divided into two parts.
One is hammer type, and the other is blade type. The hammer type rotor is suitable for crushing pallets, building templates, these plate materials with a small number of nails, blade rotationThe sub is suitable for broken branches, sticks and some rounds with larger diameters.


High Advantage :

  • Chain belt conveyor feeding .(Wood crusher adopts chain plate type intelligent feeding which is guarantee smooth feeding to increase feeding speed .
  • Iron removal device.
  • The machine can smash wood with nails, and install an iron removing device at the discharge end of the machine to separate the wood from the nails, thereby reducing the trouble of pulling out the nails, and the recycled nails can be sold.



Technical Parameter :



TypeHX4000HX5000HX6000HX7000HX8000
Roller Spped (r/min)650800800800560
Roller Diameter (mm)80080080011001400
Blade/Hammer QTY4/244/284/304/364/46
Main Power (kw)160200250280400
Capacity (t/h)10-1515-2020-3030-5050-70
Feeding Size (mm)1260*6001400*6001600*6001600*8002000*1000
Feeding MethodChain feeding
Total weight (t)1517212851
Outsize(m)8*2.45*2.488.1*2.35*2.59.3*2.8*310.8*2.8*3.413.3*3.15*3.9

Wood Crusher Machine 50mm 400kw Paper Pellet Mill 80tph Wood Chipper Machine 0Wood Crusher Machine 50mm 400kw Paper Pellet Mill 80tph Wood Chipper Machine 1
Application Raw Material ;

Wood Crusher Machine 50mm 400kw Paper Pellet Mill 80tph Wood Chipper Machine 2
Wood Crusher Machine 50mm 400kw Paper Pellet Mill 80tph Wood Chipper Machine 3
