2TH 3TH Biomass Pellet Mill Machine 200kw Ring Die Pellet Machine

Products

2TH 3TH Biomass Pellet Mill Machine 200kw Ring Die Pellet Machine

MOQ:	1set
Price:	Negotiable
Standard Packaging:	2 sets pellet mill machine *1 20gp . spare parts packed by plywood case or iron case only .
Delivery Period:	15 working times
Payment Method:	T/T, L/C
Supply Capacity:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

APEX BIOMASS

Certification

CE SGS

Model Number

Biomass Pellet Mill Type:

Ring Die Bioamss Pellet Mill

Capacity:

Main Power:

180/200kw

Bearing Brand:

FAG .NSK Etc .

Quik Parts:

Ring Die, Roller Shell ,five Piece Cover Etc .

Name:

MZLH650 3TH Biomass Pellet Mill Machine Ring Die Type

Oil Seal:

Imported

Type:

Horizontal Pellet Mill

Highlight:

apex 2TH Biomass Pellet Mill Machines

apex 3TH Biomass Pellet Mill Machines

200kw ring die pellet machine apex

Product Description

MZLH650 3TH Biomass Pellet Mill Machine Ring Die Type

Quick Advantage :

1. Manual lifting device is located for ring die and roller shell .

2. Large module gear transmission, to improve the strength of the gear and transmission efficiency.

3. Imported oil seal (Japan) to make high sealing ,machine stability .

Description :

Biomass pellet mill is used to press the material into high density cylinder pellet with easy transportation and storage .

The working priciple :
When the powders with different particle sizes are guided by the scraper in the pressing chamber into the pre-compression area between the actively rotating ring die and the driven rotating pressure roller, the material has a certain degree of looseness, and the material is squeezed by the ring die and the pressure roller so as to High density particles are formed.Pellet mill is divided into biomass and animal feed pellet machine according to different raw material .

Main technical parameters :

Model: MZLH650

Capacity : 2-3T/H according to different raw material

Power : 185/200Kw /8p

Weight : about 4ton

Ring Die dimension :650mm.

Usage :

To biomass ,animal feed pellet making .

Biomass including agriculture waste ,wood waste etc .

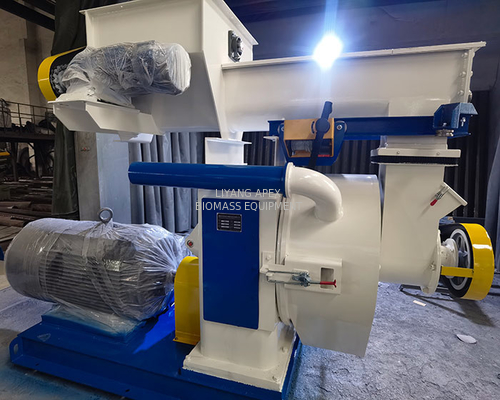

2TH 3TH Biomass Pellet Mill Machine 200kw Ring Die Pellet Machine 0

Spare parts of Biomass pellet mill machine

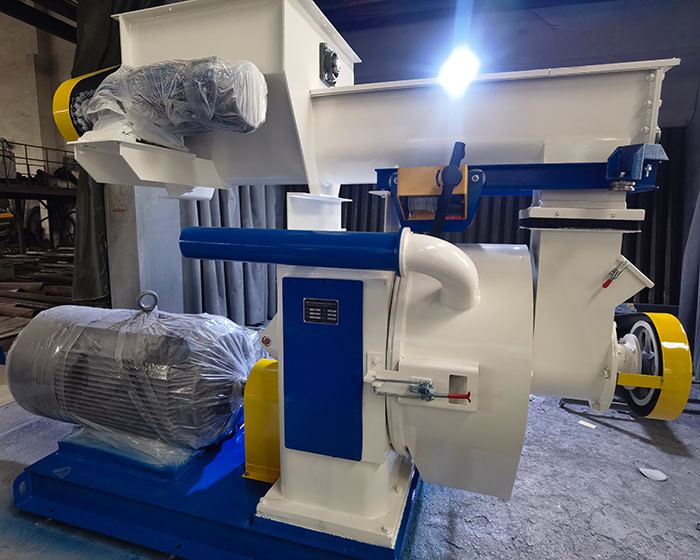

2TH 3TH Biomass Pellet Mill Machine 200kw Ring Die Pellet Machine 1
