Wood Log 5t/H 7mm Sawdust Pellet Press Biomass Pellet Making Machine
  • name
  • name

Wood Log 5t/H 7mm Sawdust Pellet Press Biomass Pellet Making Machine

MOQ: 1set
Price: Negotiable
Standard Packaging: 2 sets pellet mill machine *1 20gp . spare parts packed by plywood case or iron case only .
Delivery Period: 15 working times
Payment Method: T/T, L/C
Supply Capacity: 10 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
APEX BIOMASS
Certification
CE SGS
Model Number
MZLH
Items:
Thailand Large Wood Log Sawdust Pellet Machine
Output:
5-6t/h ,unit 2-3t/h . According To Different Raw Material
Ring Die Size:
650mm
Pellet Size:
6-12mm
Applicated:
Wood Waste Pellet Making
Main Power:
200kw
Total Weight:
About 4ton
Motor:
Brand Such As Simens
Highlight:

apex Wood Log biomass pellet making machines

,

apex 5t/H biomass pellet making machines

,

apex 7mm sawdust pellet press machine

Product Description

Thailand Large Wood Log Sawdust Pellet Machine 5t/h

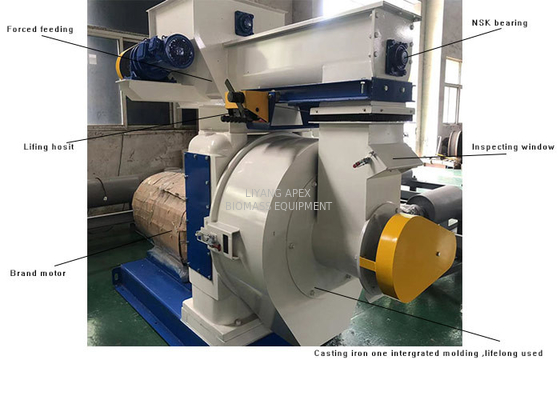

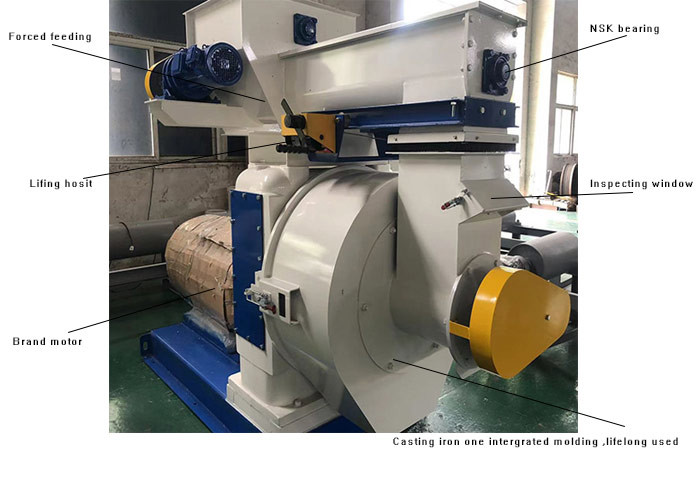

▶ Pelletizing Chamber:
Provide space for pelletizing . The main components are roller assembly and ring die, bearing, chammer cover, etc.
Cutting handle is equipped to control the length of pellet so that can get as your needs .
Inspecting window on the pelletizing chamber to insepct he cutting of pellets by the cutter at any time, and control the production situation.

Waring : Pushing hand is forbbiden when the machine is running .


▶ Press Roller Assembly:
The roller assembly is made of 42CrMo material .Including roller shell ,five piece cover ,bearing , Circlip etc .

Roller shell and five piece cover is quick parts .


▶ The working priciple :

When the powders with different particle sizes are guided by the scraper in the pressing chamber into the pre-compression area between the actively rotating ring die and the driven rotating pressure roller, the material has a certain degree of looseness, and the material is squeezed by the ring die and the pressure roller so as to High density particles are formed.Pellet mill is divided into biomass and animal feed pellet machine according to different raw material .



Main technical parameters :



Model MZLH420 MZLH508 MZLH650
Capacity(t/h) 1-1.5 1.5-1.8 2-3
Main power (kw) 75/90 8/6P 110/132 8/6P 200 8/6P
Feeding Power (kw) 2.2 2.2 3
Ring Die Diameter (mm) 420 520 650
Pellet Diameter (mm) 6-12 6-12 6-12


Usage :

To biomass ,animal feed pellet making .

Biomass including agriculture waste ,wood waste etc .

Wood Log 5t/H 7mm Sawdust Pellet Press Biomass Pellet Making Machine 0



FAQ

1. What is our payment term?

A: 30 % by TT in advance, 70% by TT before shippment;

B: 100% Confirmed, Irrevocable, LC at sight



2. Can I operate this production line alone?

According to the scale of pellet production line .2-3 larbors necessary to inspect the feeding , discharing etc .



3. Will you train me to do the maintanance .

Yes, while our engineers guide you to install and train you how to operate the sawdust pelelt machine and replace .
