132KW Biomass Pellet Mill Machine 2TPH Automatic Screw Feeder Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | APEX BIOMASS |
| Certification | CE SGS |
| Model Number | MZLH508 |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | 2 sets pellet mill machine *1 20gp . spare parts packed by plywood case or iron case only . |
| Delivery Time | 15 working times |
| Payment Terms | T/T, L/C |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Screw Feeder Biomass Pellet Press Machine | Model | MZLH 508 |
|---|---|---|---|
| Main Power | 110/132 Power 6/8p | Weight | About 3.2t |
| Motor | Brand Motor | Raw Material | Wood ,agriculture Waste |
| Biomass Press Machine Type | Ring Die Biomass Pellet Press | Raw Material Water Content | Under 12 % |
| High Light | 3TPH Biomass Pellet Mill Machine,apex 132KW Biomass Pellet Mill Machines,2TPH automatic screw feeder machine |
||
Product Description

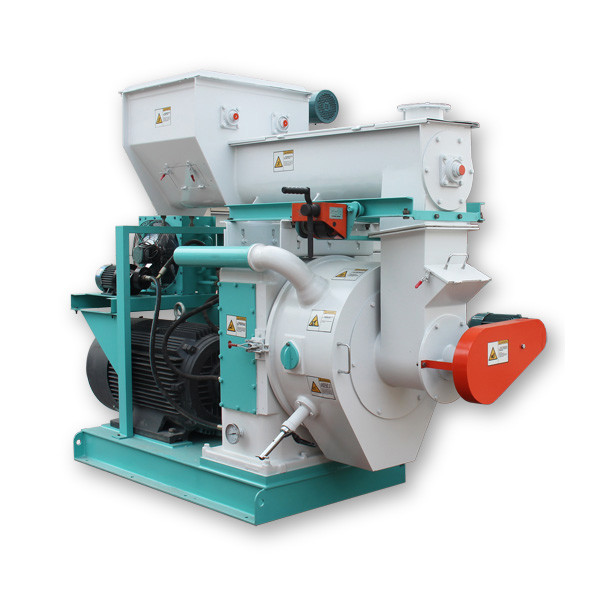

Screw Feeder Biomass Pellet Press Machine 2tTH
▶ Pelletizing Chamber:
Provide space for pelletizing . The main components are roller assembly and ring die, bearing, chammer cover, etc.
Cutting handle is equipped to control the length of pellet so that can get as your needs .
Inspecting window on the pelletizing chamber to insepct he cutting of pellets by the cutter at any time, and control the production situation.
Waring : Pushing hand is forbbiden when the machine is running .
▶ Press Roller Assembly:
The roller assembly is made of 42CrMo material .Including roller shell ,five piece cover ,bearing , Circlip etc .
Roller shell and five piece cover is quick parts .

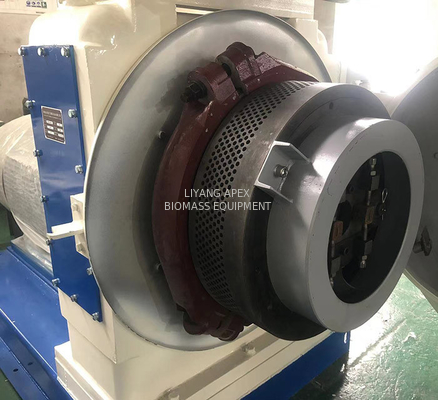

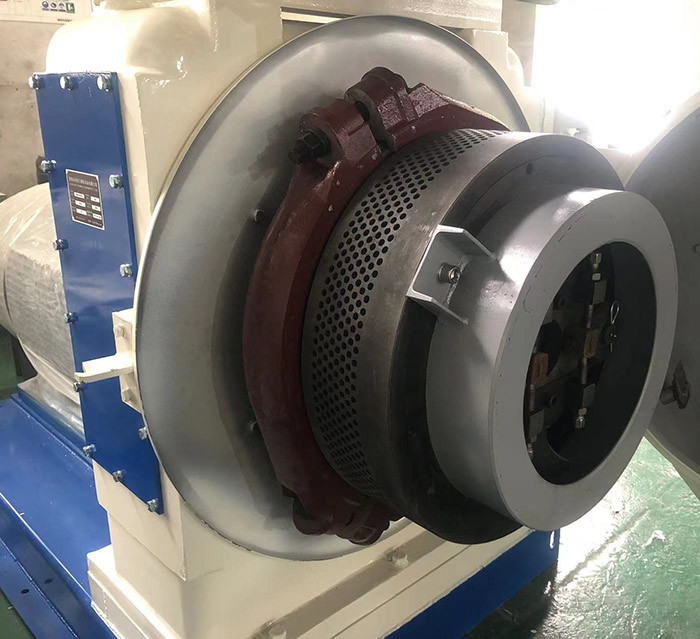

▶ Ring Die
Qucik parts as well .
Material :high chromium stainless steel and high quality alloy steel. The biomass waste generally used alloy steel , the animal feed SS steel .
Customzied raw material , most professional heating center in Liyang .
Main technical parameters :
| Model | MZLH420 | MZLH508 | MZLH678 |
| Capacity(t/h) | 1-1.5 | 2.5-3 | 2-3 |
| Main power (kw) | 75/90 8/6P | 110/132 8/6P | 185/200 8/P |
| Feeding Power (kw) | 2.2 | 2.2 | 3 |
| Pellet Diameter (mm) | 6-12 | 6-12 | 6-12 |
Main technical parameters :
Type :MZHL508
Capacity : 1.5-2T/H according to different raw material
Power : 110/132kw 6/8p
Weight : about 3.2ton
Ring Die dimension :508mm.
Usage :
To biomass ,animal feed pellet making .
Biomass including agriculture waste ,wood waste etc .
FAQ
1. What is our payment term?
A: 30 % by TT in advance, 70% by TT before shippment;
B: 100% Confirmed, Irrevocable, LC at sight
2. Can I operate this production line alone?
According to the scale of pellet production line .2-3 larbors necessary to inspect the feeding , discharing etc .
3. Will you train me to do the maintanance .
Yes, while our engineers guide you to install and train you how to operate the sawdust pelelt machine and replace .
