Yulong XGJ850 Pellet Mill Ring Die For Pellet Mill 850

  • Yulong XGJ850 Pellet Mill Ring Die For Pellet Mill 850
  • Yulong XGJ850 Pellet Mill Ring Die For Pellet Mill 850
Place of Origin CHINA
Brand Name APEX BIOMASS
Certification CE SGS
Model Number XGJ850
Minimum Order Quantity 1set
Price Negotiable
Packaging Details Plywood case with film ,for sea transportation
Delivery Time 15 working times
Payment Terms T/T, L/C
Supply Ability 100pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Items Pellet Machine Ring Die Name XGJ850 Ring Die
Raw Material Customized Alloy Steel Dimension 850*1210*265
Pellet Machine Voltage 200kw ,380v HRC 52-55
Compression Ratio 1:5-1:10 Customzied Weight 360kg
High Light

yulong pellet mill ring die apex

,

XGJ850 pellet mill ring die apex

,

apex die for pellet mill 850
Leave a Message
Product Description

Yulong XGJ850 Ring Die Manufacture Pellet Die 850



The ring die is widely used in the processing of feed, the pelletizing of biomass energy such as straw and sawdust, the production of compound fertilizer, the pressing of marigold pellets, and the production of petroleum and plastic pellets.



A good ring die can improve product quality and output, reduce energy consumption (granulation energy consumption accounts for 30%-35% of the total energy consumption of the entire workshop), and reduce production costs (the cost of ring die loss accounts for 25%-30% of the maintenance cost of the entire production workshop). % or more) and other aspects have a great impact.



The Ring Die raw material :

Alloy steel: 20CrMnTi. HRC:52-55

Stainless steel: Chinese Standard: X4Cr13, Germany Standard: X46Cr13. HRC: 56-60



High advantage :

  • 1. Select quality forging stock, but general companies select casting stock
  • 2 Use gun drill , the hole is completed by one time, nice appearance, high capacity
  • 3 Use America vacuum oven and advanced treatment craft, ensure twice service life
  • 4 Strong R&D help customer design compression ratio and strength according to requirements, Ensure pelleting effect and high quality of product.



Generally Compression ratio :

Item Hole Diameter(mm) Compression Ratio
Ring die for animal feed pellet machine
Poultry&livestock feed 2.5 - 4 1:4-1:11
Fish feed 2.0 - 2.5 1:12-1:14
Shrimp feed 0.4 - 1.8 1:18-1:25
Ring die for biomass pellet machine 6.0 - 8.0 1:4.5-1:8





XGJ850 ring die processing :

gun-drilling machine+ auto counter-sinking machine+vacuum heat treatment machine..

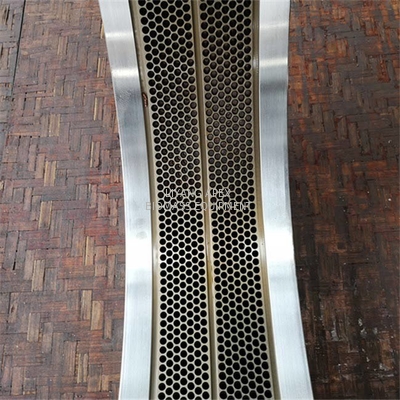

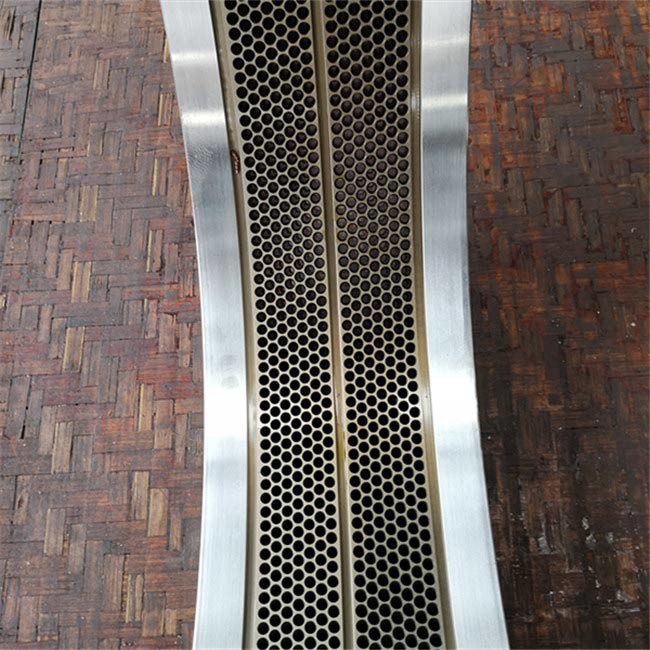

Yulong XGJ850 Pellet Mill Ring Die For Pellet Mill 850 0

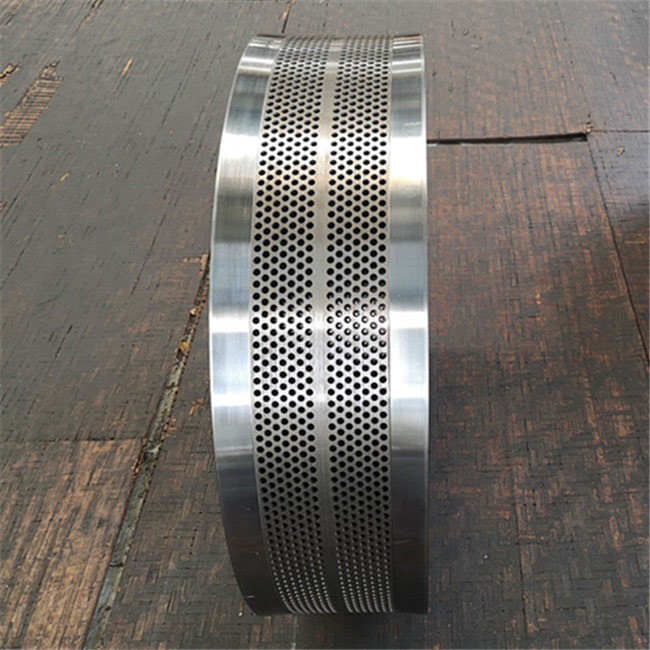

Yulong XGJ850 Pellet Mill Ring Die For Pellet Mill 850 1



Customized ring die accept :



Yulong Pellet machine ring die :XGJ850/560

For Zhengchang pellet mill: SZLH250, SZLH300,SZLH320,SZLH350,SZLH400,SZLH420,SZLH508, SZLH678, SZLH768, etc
For Muyang pellet mill: MUZL180, MUZL350, MUZL420, MUZL600, MUZL1200, MUZL610, MUZL1210, MUZL1610, MUZL2010;
MUZL350X, MUZL420X, MUZL600X, MUZL1200X(Especially for shrimp feed pellet, diameter: 1.2-2.5mm)
For Awalia pellet mill: Awalia 420, Awalia350, etc
For Buhler pellet mill: Buhler304, Buhler420, Buhler520, Buhler660, Buhler900, etc.
For Kahl pellet mill(Flat die): 38-780, 37-850, 45-1250, etc
For IDAH pellet mill:PM-42L,PM-51SA,PM-53SA,PM-53SC,PM-53WS,PM-635D
