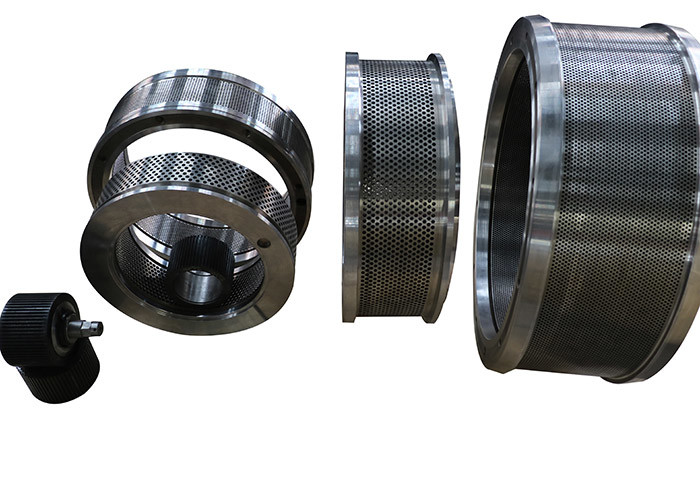

20CrMnTi 132kw Pellet Machine Die And Roller 180kg Pellet Press Die Set
| Place of Origin | CHINA |
|---|---|
| Brand Name | APEX BIOMASS |
| Certification | CE SGS |
| Model Number | XGJ560 |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | Plywood case with film ,for sea transportation |
| Delivery Time | 15 working times |
| Payment Terms | T/T, L/C |
| Supply Ability | 100pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Items | Pellet Die And Roller | Name | Pellet Machine Pellet Die And Roller Customized Ring Die Manufacture |
|---|---|---|---|
| Raw Material | 20CrMnTi | Dimension | 560*690*195 |
| Pellet Machine Voltage | 132kw | HRC | 52-55 |
| Compression Ratio | 1:5-1:10 Customzied | Weight | 180kg |
| Highlight | 20CrMnTi pellet machines die 132kw,132kw pellet machines die 20CrMnTi,180kg pellet press die set 20CrMnTi |
||
Product Description
Pellet Machine Pellet Die and Roller Customized Ring Die Manufacture
A good pellete die can improve product quality and output, reduce energy consumption (granulation energy consumption accounts for 30%-35% of the total energy consumption of the entire workshop), and reduce production costs (the cost of ring die loss accounts for 25%-30% of the maintenance cost of the entire production workshop). % or more) and other aspects have a great impact.
The Ring Die raw material :
Alloy steel: 20CrMnTi. HRC:52-55
Stainless steel: Chinese Standard: X4Cr13, Germany Standard: X46Cr13. HRC: 56-60
The raw material is first key in the quality of ring die ,X4Cr13(4Cr13) for exapmple :
its quality source must start from the steel ingot: the chemical composition of the 4Cr13 steel ring die (qualityFraction%) is: C content≤0.36~0.45, Cr content 12~14, Si content≤0.60, Mn content≤0.80, S Content ≤ 0.03, P content ≤ 0.035; in actual use, the Cr content is about 12%
Why us ?
- Select quality forging stock, but general companies select casting stock
- Use gun drill , the hole is completed by one time, nice appearance, high capacity
- Use America vacuum oven and advanced treatment craft, ensure twice service life
- Strong R&D help customer design compression ratio and strength according to requirements, Ensure pelleting effect and high quality of product.
Generally Compression ratio :
| Item | Hole Diameter(mm) | Compression Ratio |
| Ring die for animal feed pellet machine | ||
| Poultry&livestock feed | 2.5 - 4 | 1:4-1:11 |
| Fish feed | 2.0 - 2.5 | 1:12-1:14 |
| Shrimp feed | 0.4 - 1.8 | 1:18-1:25 |
| Ring die for biomass pellet machine | 6.0 - 8.0 | 1:4.5-1:8 |
Pellet die processing :
gun-drilling machine+ auto counter-sinking machine+vacuum heat treatment machine..
Customized ring die accept :
Yulong Pellet machine ring die :XGJ850/560
For Zhengchang pellet mill: SZLH250, SZLH300,SZLH320,SZLH350,SZLH400,SZLH420,SZLH508, SZLH678, SZLH768, etc
For Muyang pellet mill: MUZL180, MUZL350, MUZL420, MUZL600, MUZL1200, MUZL610, MUZL1210, MUZL1610, MUZL2010;
MUZL350X, MUZL420X, MUZL600X, MUZL1200X(Especially for shrimp feed pellet, diameter: 1.2-2.5mm)
For Awalia pellet mill: Awalia 420, Awalia350, etc
For Buhler pellet mill: Buhler304, Buhler420, Buhler520, Buhler660, Buhler900, etc.
For Kahl pellet mill(Flat die): 38-780, 37-850, 45-1250, etc
For IDAH pellet mill:PM-42L,PM-51SA,PM-53SA,PM-53SC,PM-53WS,PM-635D
