60kg Pellet Mill Ring Die MUZL350 MUYANG Pellet Press Die Set
| Place of Origin | CHINA |
|---|---|
| Brand Name | APEX BIOMASS |
| Certification | CE SGS |
| Model Number | MUZL350 |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | Plywood case with film ,for sea transportation |
| Delivery Time | 15 working times |
| Payment Terms | T/T, L/C |
| Supply Ability | 100pcs |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Items | Pellet Machine Ring Die | Name | MUZL350 |
|---|---|---|---|
| Raw Material | SS STEEL | Dimension | 360*460*176 |
| Pellet Machine Brand | Muyang | HRC | 52-60 |
| Compression Ratio | Customzied | Weight | 60kg |
| High Light | apex 60kg pellet mill ring die,pellet mill ring die apex 60kg,apex pellet mill ring die 60kg |
||
Product Description

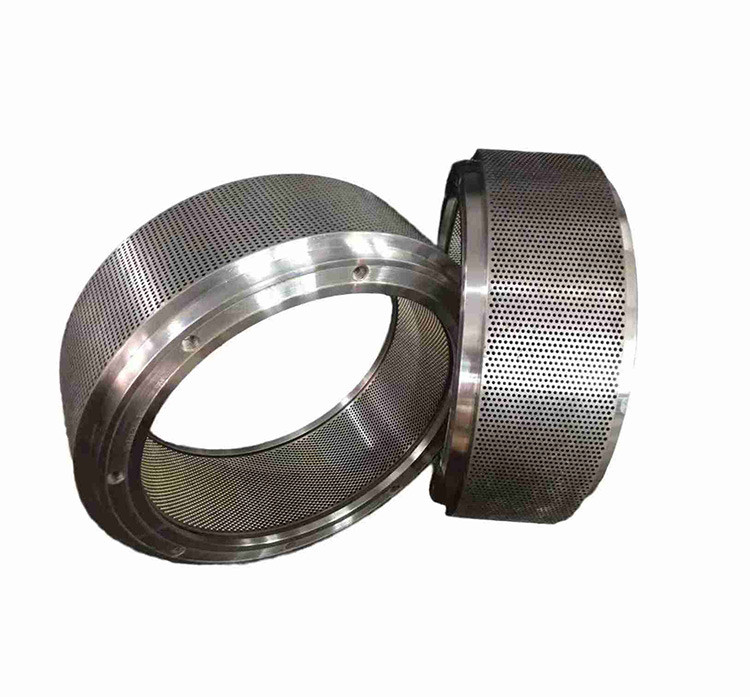

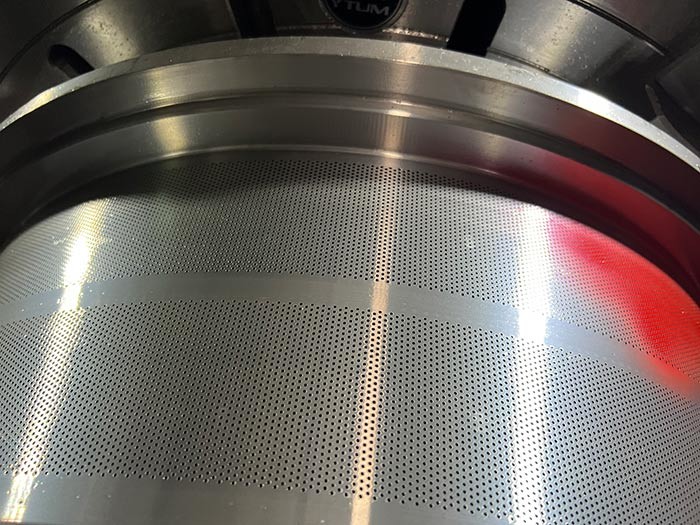

MUZL350 MUYANG Pellet Machine Ring Die Manufacture
A good ring die can improve product quality and output, reduce energy consumption (granulation energy consumption accounts for 30%-35% of the total energy consumption of the entire workshop), and reduce production costs (the cost of ring die loss accounts for 25%-30% of the maintenance cost of the entire production workshop).
The Ring Die raw material :
Alloy steel: 20CrMnTi. HRC:52-55
Stainless steel: Chinese Standard: X4Cr13, Germany Standard: X46Cr13. HRC: 56-60
The raw material is first key in the quality of ring die ,X4Cr13(4Cr13) for exapmple :
its quality source must start from the steel ingot: the chemical composition of the 4Cr13 steel ring die (qualityFraction%) is: C content≤0.36~0.45, Cr content 12~14, Si content≤0.60, Mn content≤0.80, S Content ≤ 0.03, P content ≤ 0.035; in actual use, the Cr content is about 12%
Why us ?
- Select quality forging stock, but general companies select casting stock
- Use gun drill , the hole is completed by one time, nice appearance, high capacity
- Use America vacuum oven and advanced treatment craft, ensure twice service life
- Strong R&D help customer design compression ratio and strength according to requirements, Ensure pelleting effect and high quality of product.
MUYANG pellet press die set
Generally Muyang pellet Ring Die Specification:
| Item NO. | Material | HRC | Hole Diameter |
| MUZL 350 | Stainless Steel(X46Cr13) | 52-55 | Φ1.0mm-Φ16MM |
| MUZL420 | Stainless Steel(X46Cr13) | 52-55 | Φ1.0mm-Φ16MM |
| MUZL 460 | Stainless Steel(X46Cr13) | 52-55 | Φ1.0mm-Φ16MM |
| MUZL 600(550) | Stainless Steel(X46Cr13) | 52-55 | Φ1.0mm-Φ16MM |
| MUZL 610(520) | Stainless Steel(X46Cr13) | 52-55 | Φ1.0mm-Φ16MM |
| MUZL 1200 | Stainless Steel(X46Cr13) | 52-55 | Φ1.0mm-Φ16MM |
| MUZL 1210 | Stainless Steel(X46Cr13) | 52-55 | Φ1.0mm-Φ16MM |
| MUZL 1600 | Stainless Steel(X46Cr13) | 52-55 | Φ1.0mm-Φ16MM |
| MUZL1610 | Stainless Steel(X46Cr13) | 52-55 | Φ1.0mm-Φ16MM |
Muzl350 ring die processing :
gun-drilling machine+ auto counter-sinking machine+vacuum heat treatment machine..
Customized ring die accept :
Yulong Pellet machine ring die :XGJ850/560
For Zhengchang pellet mill: SZLH250, SZLH300,SZLH320,SZLH350,SZLH400,SZLH420,SZLH508, SZLH678, SZLH768, etc
For Muyang pellet mill: MUZL180, MUZL350, MUZL420, MUZL600, MUZL1200, MUZL610, MUZL1210, MUZL1610, MUZL2010;
MUZL350X, MUZL420X, MUZL600X, MUZL1200X(Especially for shrimp feed pellet, diameter: 1.2-2.5mm)
For Awalia pellet mill: Awalia 420, Awalia350, etc
For Buhler pellet mill: Buhler304, Buhler420, Buhler520, Buhler660, Buhler900, etc.
For Kahl pellet mill(Flat die): 38-780, 37-850, 45-1250, etc
For IDAH pellet mill:PM-42L,PM-51SA,PM-53SA,PM-53SC,PM-53WS,PM-635D
