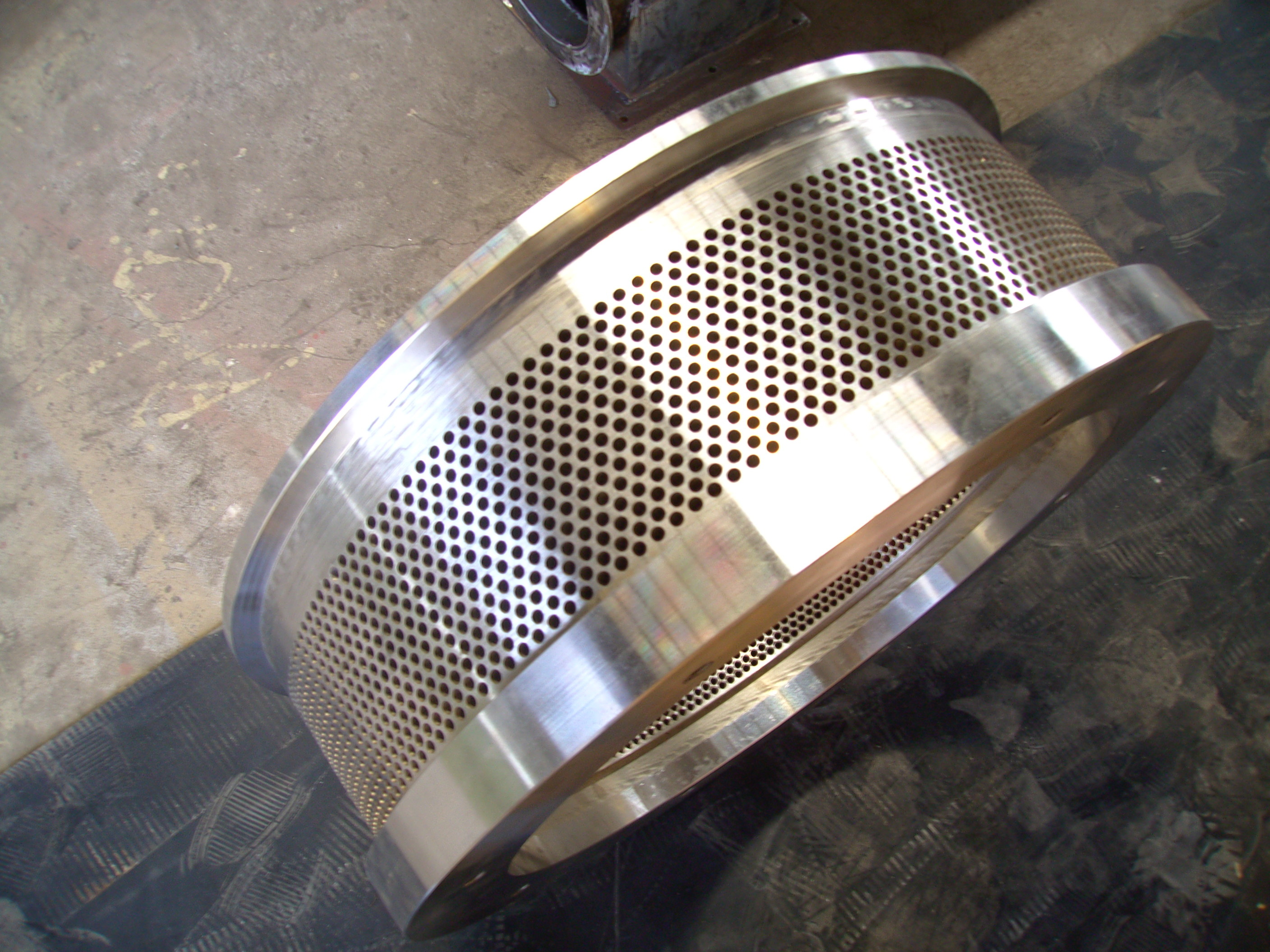

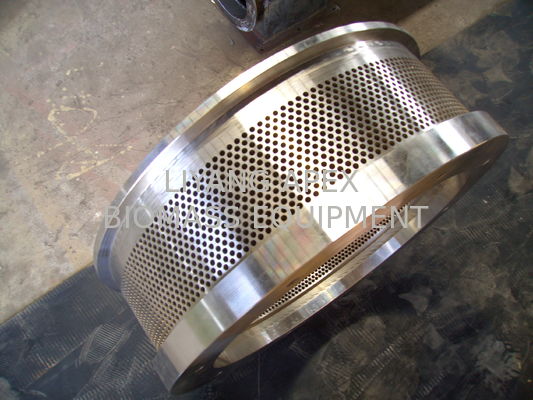

508mm 20CrMnTi Steel Pellet Machine Ring Die CPM Grinding Mill Spare Parts

Place of Origin CHINA
Brand Name APEX BIOMASS
Certification CE SGS
Model Number CPM7392
Minimum Order Quantity 1set
Price Negotiable

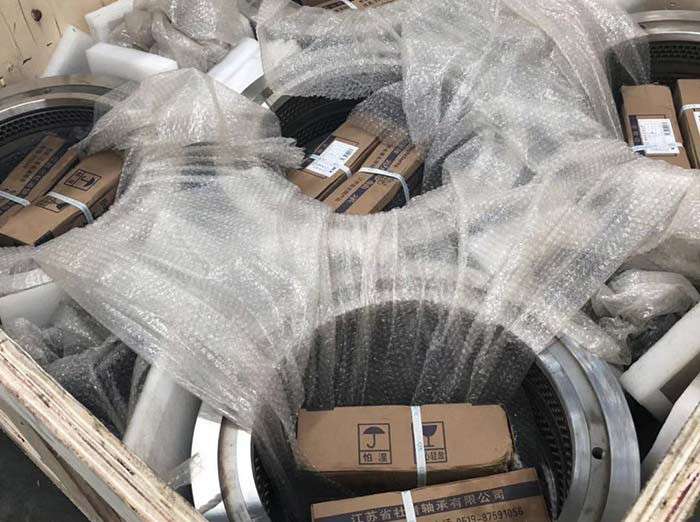

Packaging Details Plywood case with film ,for sea transportation
Delivery Time 15 working times
Payment Terms T/T, L/C
Supply Ability 100pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Items Pellet Machine Ring Die Name Pellet Mill Dies CPM
Raw Material X4Cr13 Dimension 508*660*238
Pellet Machine Brand CPM HRC 52-60
Compression Ratio Customzied Weight 180kg
High Light

apex CPM Pellet Machine Ring Die

,

apex 20CrMnTi steel Pellet Machine Ring Die

,

CPM grinding mill spare parts apex

Leave a Message
Product Description

Pellet Machine Die Manufacture Pellet Mill Die Size CPM7392



Pellet mill die is the core part of pellet mills which plays very pivotal role in pelleting process,so it is most important to choose the appropriate ring die and brand manufacturer for pellet mills ,a good pellet mill die can improve product quality and output, reduce energy consumption (granulation energy consumption accounts for 30%-35% of the total energy consumption of the entire workshop), and reduce production costs (the cost of pellet mill die loss accounts for 25%-30% of the maintenance cost of the entire production workshop).



Why us ?

  1. Quality Assured: Adopting of high-quality exported forging parts to ensure fine quality of products.
  2. Advanced Automatic Pellet mill Die Processing Technology: Imported gun driller for drilling; combining the vacuum furnance and continuous quench process for heating; highly polished.
  3. Good Mechanical Properties: Good tensile strength, good abrasion resistance, good corrosion resistance, good impact resistance, good heat resistance, good fatigue resistance.
  4. Long Service Life: The service life of our ring die for making wood pellets can be up to 2000 tons; and for making feed pellets can be up to 10000 tons.

The Pellet mill die raw material :

Alloy steel: 20CrMnTi.

Stainless steel: Chinese Standard: X4Cr13, Germany Standard: X46Cr13.



The difference between different raw materials :

  • 1. Alloy dies are the choice for many feed processors because of their good abrasion and breakage resistance
  • 2. Chrome dies (less used )have superior corrosion resistance, making them the choice for processing operations involving corrosive chemicals
  • 3. Stainless steel dies have the best abrasion and breakage resistance as well as good corrosion resistance

Generally CPM pellet Ring Die Specification:

CPM 7730-7 Stainless Steel(X46Cr13) 52-55 Φ1.0mm-Φ16MM
CPM 7730-8 Stainless Steel(X46Cr13) 52-55 Φ1.0mm-Φ16MM
CPM 7930-4 Stainless Steel(X46Cr13) 52-55 Φ1.0mm-Φ16MM
CPM 7930-6 Stainless Steel(X46Cr13) 52-55 Φ1.0mm-Φ16MM
CPM 7930-8 Stainless Steel(X46Cr13) 52-55 Φ1.0mm-Φ16MM
CPM 7932-5 Stainless Steel(X46Cr13) 52-55 Φ1.0mm-Φ16MM
CPM 7932-7 Stainless Steel(X46Cr13) 52-55 Φ1.0mm-Φ16MM
CPM 7932-9 Stainless Steel(X46Cr13) 52-55 Φ1.0mm-Φ16MM
CPM 7932-11 Stainless Steel(X46Cr13) 52-55 Φ1.0mm-Φ16MM
CPM 7932-12 Stainless Steel(X46Cr13) 52-55 Φ1.0mm-Φ16M



CPM pellet mill die processing :

gun-drilling machine+ auto counter-sinking machine+vacuum heat treatment machine..



508mm 20CrMnTi Steel Pellet Machine Ring Die CPM Grinding Mill Spare Parts 0



508mm 20CrMnTi Steel Pellet Machine Ring Die CPM Grinding Mill Spare Parts 1



Customized pellet mill die accept :



Yulong Pellet machine ring die :XGJ850/560

For Zhengchang pellet mill: SZLH250, SZLH300,SZLH320,SZLH350,SZLH400,SZLH420,SZLH508, SZLH678, SZLH768, etc
For Muyang pellet mill: MUZL180, MUZL350, MUZL420, MUZL600, MUZL1200, MUZL610, MUZL1210, MUZL1610, MUZL2010;
MUZL350X, MUZL420X, MUZL600X, MUZL1200X(Especially for shrimp feed pellet, diameter: 1.2-2.5mm)
For Awalia pellet mill: Awalia 420, Awalia350, etc
For Buhler pellet mill: Buhler304, Buhler420, Buhler520, Buhler660, Buhler900, etc.
For Kahl pellet mill(Flat die): 38-780, 37-850, 45-1250, etc
For IDAH pellet mill:PM-42L,PM-51SA,PM-53SA,PM-53SC,PM-53WS,PM-635D
