Animal Feed Pellet Machine Ring Die X4Cr13 Awila 420 Pellet Mill Spare Part

Place of Origin CHINA
Brand Name APEX BIOMASS
Certification CE SGS
Model Number Awila 420
Minimum Order Quantity 1set
Price Negotiable
Packaging Details Plywood case with film ,for sea transportation
Delivery Time 15 working times
Payment Terms T/T, L/C
Supply Ability 100pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Items Pellet Machine Ring Die Name Animal Feed Pellet Mill Die
Raw Material X4Cr13 Dimension 420*560*180
Pellet Machine Brand 420 HRC 52-60
Compression Ratio Customzied Weight 120kg
High Light

Animal Feed Pellet Machine Ring Die

,

Pellet Machine Ring Die X4Cr13 apex

,

Awila 420 pellet mill spare part apex

Leave a Message
Product Description

Animal Feed Pellet Mill Die X4Cr13 Awila 420 Ring Die



Pellet mill die is the core part of pellet mills which plays very pivotal role in pelleting process,so it is most important to choose the appropriate ring die and brand manufacturer for pellet mills ,a good pellet mill die can improve product quality and output, reduce energy consumption (granulation energy consumption accounts for 30%-35% of the total energy consumption of the entire workshop), and reduce production costs (the cost of pellet mill die loss accounts for 25%-30% of the maintenance cost of the entire production workshop).



Why us ?

  • 1.Apply the high quality external refining degerming, rather than the general continuous casting;
  • 2.Using the imported gun-rill and multi-station masses drill. The ring die in once shaping, high polished, nice appearance and high capacity of feed pellets;
  • 3.Apply the treatment process of American vacuum oven and continuous glowing furnace together, to ensure long service life of ring die.
  • 4.With powerful scientific research strength, the compression ratio and intensity can be customized. To ensure once discharging feed pellets, with smooth and nice appearance. Apply the microscopic examination, to make sure high quality of feed products.

The Pellet mill die raw material :

Stainless steel: Chinese Standard: X4Cr13, Germany Standard: X46Cr13.



The difference between different raw materials :

  • 1. Alloy dies are the choice for many feed processors because of their good abrasion and breakage resistance
  • 2. Chrome dies (less used )have superior corrosion resistance, making them the choice for processing operations involving corrosive chemicals
  • 3. Stainless steel dies have the best abrasion and breakage resistance as well as good corrosion resistance

Generally  pellet Mill dies size :

Yulong Pellet machine ring die :XGJ850/560

For Zhengchang pellet mill: SZLH250, SZLH300,SZLH320,SZLH350,SZLH400,SZLH420,SZLH508, SZLH678, SZLH768, etc
For Muyang pellet mill: MUZL180, MUZL350, MUZL420, MUZL600, MUZL1200, MUZL610, MUZL1210, MUZL1610, MUZL2010;
MUZL350X, MUZL420X, MUZL600X, MUZL1200X(Especially for shrimp feed pellet, diameter: 1.2-2.5mm)
For Awalia pellet mill: Awalia 420, Awalia350, etc
For Buhler pellet mill: Buhler304, Buhler420, Buhler520, Buhler660, Buhler900, etc.
For Kahl pellet mill(Flat die): 38-780, 37-850, 45-1250, etc
For IDAH pellet mill:PM-42L,PM-51SA,PM-53SA,PM-53SC,PM-53WS,PM-635D



Animal pellet mill die processing :

gun-drilling machine+ auto counter-sinking machine+vacuum heat treatment machine..



WARM TIPS:
1.The rollers should be correctly adjusted, make sure the hole inlets are not damaged by contact with the rollers or as a result of tramp metal;
2.Material should be evenly distributed across the whole working area;
3.Make sure that all holes work uniformly, opening the clogged holes if necessary;
4.When changing dies, carefully inspect the condition of the die seating surfaces and fixing systems including collar, clamp or wear ring.

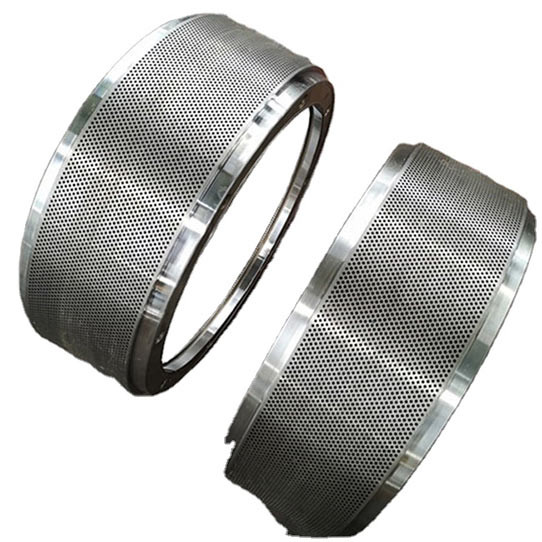

Animal Feed Pellet Machine Ring Die X4Cr13 Awila 420 Pellet Mill Spare Part 0

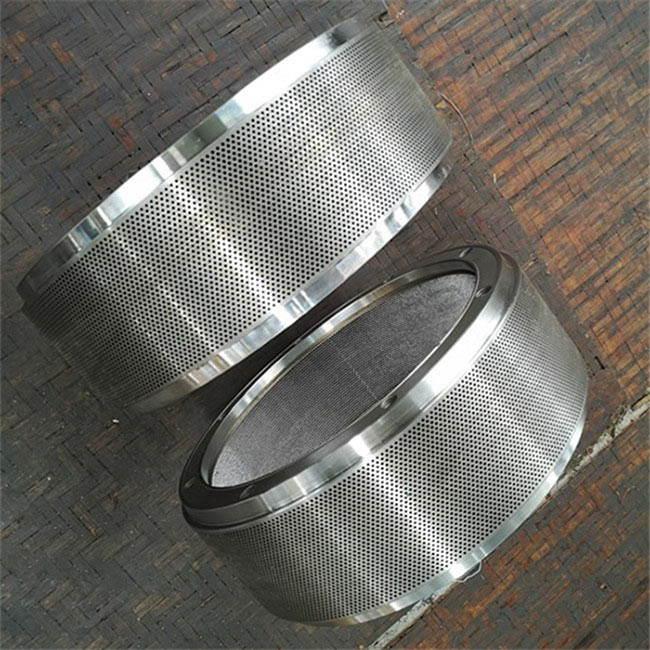

Animal Feed Pellet Machine Ring Die X4Cr13 Awila 420 Pellet Mill Spare Part 1



Customized pellet mill die accept :
