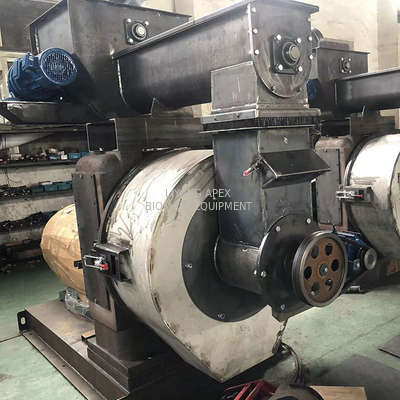

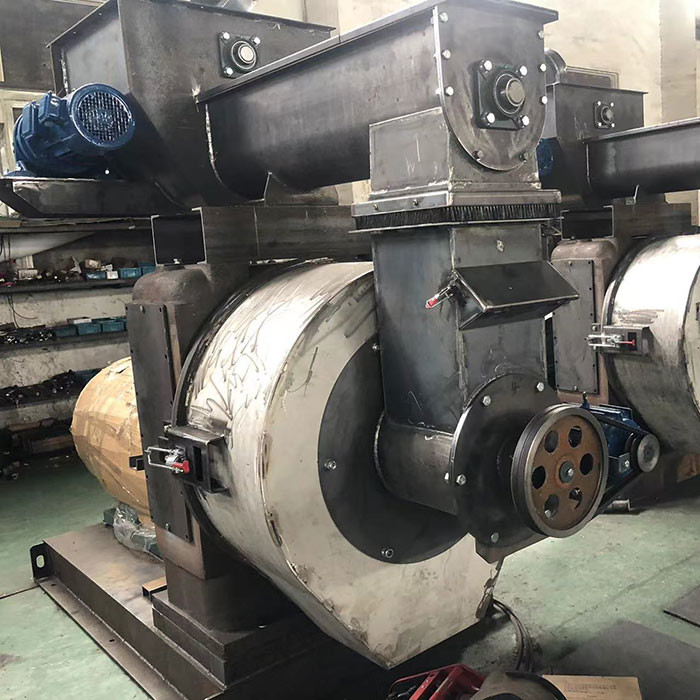

5t/H 7mm 8mm Ring Die Wood Pellet Mill Pellet Making Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | APEX BIOMASS |
| Certification | CE SGS |
| Model Number | MZLH650 |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation |
| Delivery Time | 15-20 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Items | Wood Pellet Mill | Name | Ring Die Wood Pellet Mill 5t/h Wood Pellet Making Machine |
|---|---|---|---|
| Motor | 200kw | Output(t/h) | 3t/h |
| Pellet Size | 6-12mm Customized | Type | Ring Die Pellet Mill |
| Raw Material | Wood Waste | Spare Parts | Ring Die ,roller Shell ,five Piece Cover Etc |
| Highlight | APEX 5t/H Wood Pellet Mills,7mm Wood Pellet Mills APEX,8mm ring die pellet mill |
||
Product Description
Ring Die Wood Pellet Mill 5t/h Wood Pellet Making Machine
Ring die wood pellet mill is a pelletizing equipment for the production of wood pellets, also known as wood pellet making machine ,sawdust pellet mill machine etc. and is a kind of biomass new energy equipment.
The main technical parameter :
| Model | MZLH420 | MZLH508 | MZLH650 |
| Capacity(t/h) | 1-1.5 | 1.5-1.8 | 2-3 |
| Main power (kw) | 75/90 8/6P | 110/132 8/6P | 200 8/6P |
| Feeding Power (kw) | 2.2 | 2.2 | 3 |
| Ring Die Diameter (mm) | 420 | 520 | 688 |
| Pellet Diameter (mm) | 6-12 | 6-12 |
6-12
|
The raw material comes into the pelletizing chamber , meanwhile the ring die is rotating and driving the rolller shell ,under the action of moving ,the raw material enters to the hole of ring die and pressed by roller shell into the pellet and then cutted by the scrap .
Quick Advantage :
1. The host box is made of cast iron. The box body is thick and durable without deformation; the gear shaft of the internal transmission parts and the large gear are hobbed by imported CNC gear hobbing machine, the gear is ground by imported CNC gear grinding machine after high frequency quenching, and the gear shaft is carburized and quenched by imported CNC gear grinding machine for grinding and meshing. Excellent precision, high transmission efficiency, low energy loss and low noise.
2. The main drive adopts high-precision gear drive, and the ring die adopts the quick-release hoop type, and the output is about 20% higher than that of the belt drive type.
3. The feeding auger adopts U-shaped design. This structure design makes the material unloaded evenly, with less residue and no knots. Simple structure, convenient maintenance.
The structure of Ring die Pellet Machine :
- Frequncy control feeder with anti-caking device .
- Imported gear box ,high processing accuracy .
- Safety Assembly- protecting the main shaft ,motor and ring die .
- Modulating alloy steel of main shaft with good bending resistance and torsional performance .
- Scraper panel assembly, with hard alloy knife to ensure the pellet surface quality .
The spare parts :
- Ring die : Replace when be abrasion.A good ring die can improve product quality and output, reduce energy consumption (granulation energy consumption accounts for 30%-35% of the total energy consumption of the entire workshop), and reduce production costs (the cost of pellet mill die loss accounts for 25%-30% of the maintenance cost of the entire production workshop). We ring die :Customized stainless steel and alloy steel, carburized surface ,imported processing equipment .
- Roller shell :Customized alloy steel matched our ring die ,higher capacity .
- Five piece cover ,o ring ,oil seal etc .
