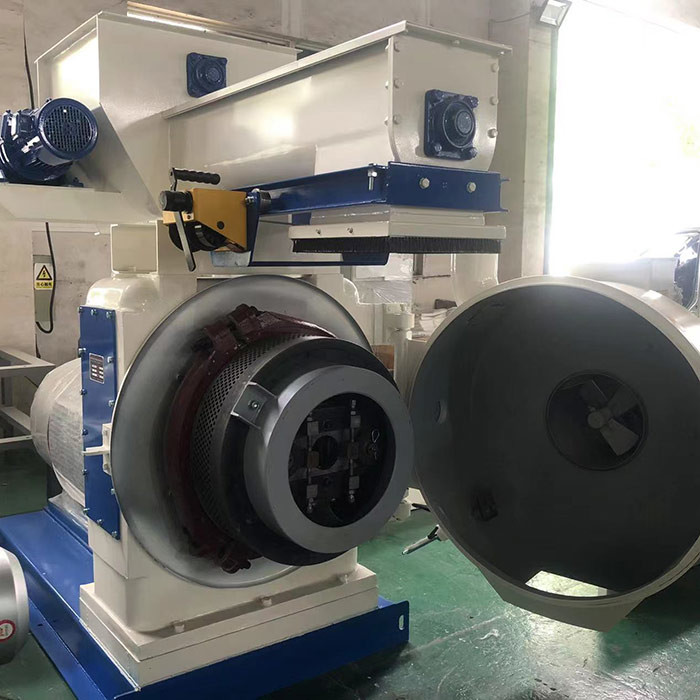

200kw 8p 3th Wood Pellet Mill Press Machine 6mm 7mm

200kw 8p 3th Wood Pellet Mill Press Machine 6mm 7mm

MOQ: 1set
Price: Negotiable
Standard Packaging: Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation
Delivery Period: 15-20 working days
Payment Method: L/C, T/T
Supply Capacity: 10 sets per month
Detail Information
Place of Origin
CHINA
Brand Name
APEX BIOMASS
Certification
CE SGS
Model Number
650
Items:
Wood Pellet Mill
Name:
Large Capacity 3th Wood Pelletizing Mill Pellet Press Machine
Motor:
200kw 8p
Output(t/h):
3t.h
Raw Material Demands:
Water Content Under 12%
Voltage:
380v 50hz Customzied
Weight:
About 4ton
Spare Parts:
Ring Die ,roller Shell ,five Piece Cover Etc
Highlight:

200kw 8p Wood Pellet Mill 3th

,

3th Wood Pellet Mill 200kw 8p

,

200kw 8p pellet press machine

Product Description

Large Capacity 3th Wood Pelletizing Mill Pellet Press Machine



Wood Pelletizing Mill is kind of biomass new energy equipment ,engaged in pelletizing equipment for the production of biomass waste ,wood waste ,agriculture waste etc .



Wood Pelletizing Mill Situable raw material :

  • The raw materials can be various waste forestry raw materials, such as birch, larch and all other kinds of trees.
  • The raw material state can be logs, branches, small wood chips, sawdust, etc.
  • It can also be from various agricultural waste raw materials, such as wheat husks, rice husks, peanut husks, sunflower seed husks, distillers grains, corn straw, wheat straw, soybean straw, pasture grass, alfalfa, etc.
  • organic stuff .



The main technical parameter :

Model MZLH420 MZLH508 MZLH650
Capacity(t/h) 1-1.5 1.5-1.8 2-3
Main power (kw) 75/90 8/6P 110/132 8/6P 200 8/6P
Feeding Power (kw) 2.2 2.2 3
Ring Die Diameter (mm) 420 520 688
Pellet Diameter (mm) 6-12 6-12

6-12





The raw material comes into the pelletizing chamber , meanwhile the ring die is rotating and driving the rolller shell ,under the action of moving ,the raw material enters to the hole of ring die and pressed by roller shell into the pellet and then cutted by the scrap .

200kw 8p 3th Wood Pellet Mill Press Machine 6mm 7mm 0200kw 8p 3th Wood Pellet Mill Press Machine 6mm 7mm 1







Quick Advantage :



1. The host box is made of cast iron. The box body is thick and durable without deformation; the gear shaft of the internal transmission parts and the large gear are hobbed by imported CNC gear hobbing machine, the gear is ground by imported CNC gear grinding machine after high frequency quenching, and the gear shaft is carburized and quenched by imported CNC gear grinding machine for grinding and meshing. Excellent precision, high transmission efficiency, low energy loss and low noise.



2. The main drive adopts high-precision gear drive, and the ring die adopts the quick-release hoop type, and the output is about 20% higher than that of the belt drive type.



3. The transmission part of the whole machine adopts high-quality imported bearings and oil seals to ensure high transmission efficiency, stability and low noise.



4. Compensation type serpentine spring coupling of international advanced level, with novel structure, compactness, safety and low failure performance.





The structure of  Pellet Machine :

  • Frequncy control feeder screw  with anti-caking device .
  • Imported gear box ,high processing accuracy .
  • Imported gear processing equipment to ensure long time use .
  • Safety Assembly- protecting the main shaft ,motor and ring die .
  • Modulating alloy steel of main shaft with good bending resistance and torsional performance .
  • Scraper panel assembly, with hard alloy knife to ensure the pellet surface quality .

200kw 8p 3th Wood Pellet Mill Press Machine 6mm 7mm 2



The spare parts :



  • Ring die : Replace when be abrasion.A good ring die can improve product quality and output, reduce energy consumption (granulation energy consumption accounts for 30%-35% of the total energy consumption of the entire workshop), and reduce production costs (the cost of pellet mill die loss accounts for 25%-30% of the maintenance cost of the entire production workshop). We ring die :Customized stainless steel and alloy steel, carburized surface ,imported processing equipment .
  • Roller shell :Customized alloy steel matched our ring die ,higher capacity .
  • Five piece cover ,o ring ,oil seal etc .200kw 8p 3th Wood Pellet Mill Press Machine 6mm 7mm 3
