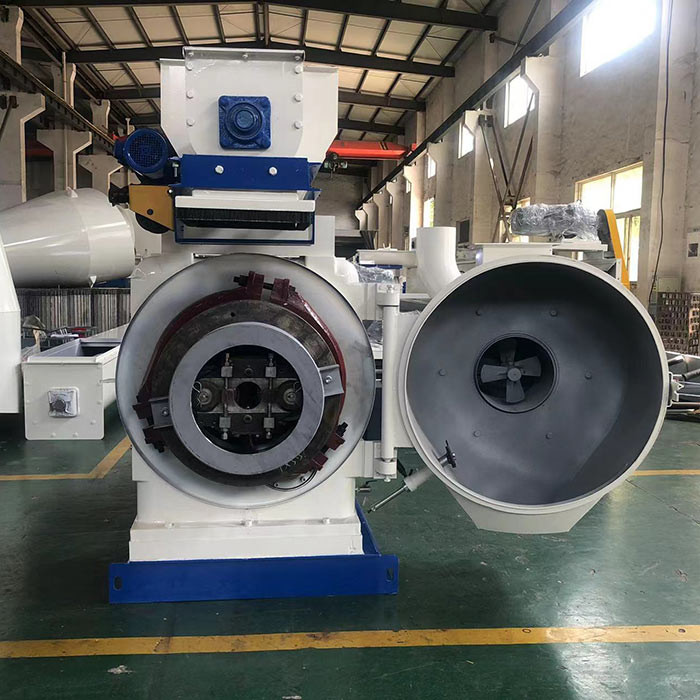

1.8tph Sawdust Straw Wood Pellet Mill Wood Fuel Pellet Making Machine 508
Place of Origin | CHINA |
---|---|
Brand Name | APEX BIOMASS |
Certification | CE SGS |
Model Number | 508 |
Minimum Order Quantity | 1set |
Price | Negotiable |
Packaging Details | Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation |
Delivery Time | 15-20 working days |
Payment Terms | L/C, T/T |
Supply Ability | 20 sets per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xItems | Wood Pellet Mill | Name | 508 Sawdust Straw Pellet Mill Biomass Fuel Pellet Making Machine |
---|---|---|---|
Motor | 132kw | Output(t/h) | 1.8t/h |
Oil Seal | Imported Brand | Dimension | 2800*1500*2500 |
Weight | About 3ton | Container | 4 Pcs In One 40HQ |
Highlight | apex 1.8tph Wood Pellet Mill,apex Sawdust Straw Wood Pellet Mill,apex wood fuel pellet making machine 508 |
508 Sawdust Straw Pellet Mill Biomass Fuel Pellet Making Machine
Working Principle :
The raw material comes into the pelletizing chamber , meanwhile the ring die is rotating and driving the rolller shell ,under the action of moving ,the raw material enters to the hole of ring die and pressed by roller shell into the pellet and then cutted by the scrap .
The sawdust straw pellete mill raw material :
- The raw materials can be various waste forestry raw materials, such as birch, larch and all other kinds of trees.
- The raw material state can be logs, branches, small wood chips, sawdust, etc.
- It can also be from various agricultural waste raw materials, such as wheat husks, rice husks, peanut husks, sunflower seed husks, distillers grains, corn straw, wheat straw, soybean straw, pasture grass, alfalfa, etc.
- organic stuff .
The main technical parameter :
Model | MZLH420 | MZLH508 | MZLH688 |
Capacity(t/h) | 1-1.5 | 1.5-1.8 | 2-3 |
Main power (kw) | 75/90 8/6P | 110/132 8/6P | 200 8/6P |
Feeding Power (kw) | 2.2 | 2.2 | 3 |
Ring Die Diameter (mm) | 420 | 520 | 688 |
Pellet Diameter (mm) | 6-12 | 6-12 |
6-12
|
Generally details :
After sale service: 7X24 hours
Delivery time: 15 working days
Qty of Container: 3-5pcs 40 HQ
Port: Shanghai
Shipment time: 7-15days to Asia, 22-25days to EU and other countries.
Operator: 3-5workers if total line .
Certificate: CE,ISO
Size of workshop: the hength is 6-8M, the length and width depend on the capacity and flow diagram.
Quick Advantage :
1. The host box is made of cast iron. The box body is thick and durable without deformation; the gear shaft of the internal transmission parts and the large gear are hobbed by imported CNC gear hobbing machine, the gear is ground by imported CNC gear grinding machine after high frequency quenching, and the gear shaft is carburized and quenched by imported CNC gear grinding machine for grinding and meshing. Excellent precision, high transmission efficiency, low energy loss and low noise.
2. The main drive adopts high-precision gear drive, and the ring die adopts the quick-release hoop type, and the output is about 20% higher than that of the belt drive type.
3. The transmission part of the whole machine adopts high-quality imported bearings and oil seals to ensure high transmission efficiency, stability and low noise.
4. Compensation type serpentine spring coupling of international advanced level, with novel structure, compactness, safety and low failure performance.
The structure of Pellet Mill :
- Frequncy control feeder screw with anti-caking device .
- Imported gear box ,high processing accuracy .
- Imported gear processing equipment to ensure long time use .
- Safety Assembly- protecting the main shaft ,motor and ring die .
- Modulating alloy steel of main shaft with good bending resistance and torsional performance .
- Scraper panel assembly, with hard alloy knife to ensure the pellet surface quality .
The spare parts :
- Ring die : Replaced when be abrasion.A good ring die can improve product quality and output, reduce energy consumption (granulation energy consumption accounts for 30%-35% of the total energy consumption of the entire workshop), and reduce production costs (the cost of pellet mill die loss accounts for 25%-30% of the maintenance cost of the entire production workshop). We ring die :Customized stainless steel and alloy steel, carburized surface ,imported processing equipment .
- Roller shell :Customized alloy steel matched our ring die ,higher capacity .
- Five piece cover ,o ring ,oil seal etc .
