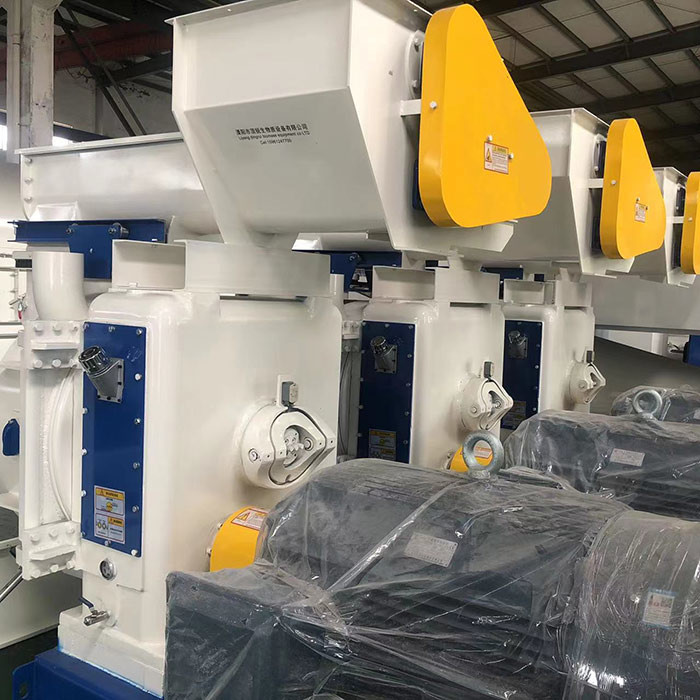

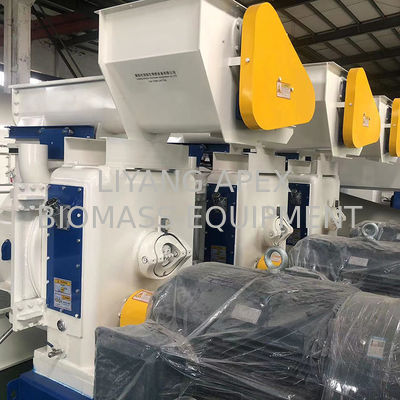

Rice Husk Straw Grass Biomass Pellet Mill Machine 508 678
| Place of Origin | CHINA |
|---|---|
| Brand Name | APEX BIOMASS |
| Certification | CE SGS |
| Model Number | MZLH |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | 2 sets pellet mill machine *1 20gp . spare parts packed by plywood case or iron case only . |
| Delivery Time | 15 working times |
| Payment Terms | T/T, L/C |
| Supply Ability | 15 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Items | Biomass Pellet Mill Machine | Name | Rice Husk Straw Grass Bioamss Pellet Mill 420 508 678 |
|---|---|---|---|
| Capacity | 1t/h ,2t/h ,1-20t/h | Power | 75-200kw |
| Raw Material | Rice Husk ,straw ,grass | Model | 420 508 650 880 |
| Motor | 6p /8p | Ring Die | Alloy Steel /ss Steel |
| Highlight | apex 880 Biomass Pellet Mill Machine,apex Biomass Pellet Mill Machine 508,apex straw pellet mill 678 |
||
Product Description
Rice Husk Straw Grass Bioamss Pellet Mill 420 508 678
Description :
Bioamss Pellet Mill is used to press the material into high density cylinder pellet with easy transportation and storage . The working priciple :
When the powders with different particle sizes are guided by the scraper in the pressing chamber into the pre-compression area between the actively rotating ring die and the driven rotating pressure roller, the material has a certain degree of looseness, and the material is squeezed by the ring die and the pressure roller so as to High density particles are formed.Biomass Pellet mill is divided into biomass and animal feed pellet machine according to different raw material .
Simply to say ,the ring die moving drive the roller shell , the raw material is extruded by ring die and roller shell into high density pellet .
Main technical parameters :
| Model | MZLH420 | MZLH508 | MZLH678 |
| Capacity(t/h) | 1-1.5 | 1.5-1.8 | 2-3 |
| Main power (kw) | 75/90 8/6P | 110/132 8/6P | 185/200 8/P |
| Feeding Power (kw) | 2.2 | 2.2 | 3 |
| Pellet Diameter (mm) | 6-12 | 6-12 | 6-12 |
|
Model
|
MZLH420
|
MZLH508
|
MZLH678
|
|
Ring die inner diameter (mm)
|
420
|
500
|
688
|
|
Ring die working width(mm)
|
90
|
100
|
110
|
|
Ring die linear speed (m/s)
|
3.16
|
3.78
|
3.54
|
|
Number of clamp
|
3 pcs
|
3 pcs
|
8 pcs
|
|
Number of roller
|
2 pcs
|
2 pcs
|
2 pcs
|
|
Number of cutter
|
1 pcs
|
1 pcs
|
1 pcs
|
|
Motor power
|
90+2.2+0.75
|
90+2.2+1.5
|
185+3.0+1.5
|
|
Motor rotation speed
|
750
|
750
|
595
|
|
Ring die hole diameter(mm)
|
6/8/10
|
6/8/10
|
6/8/10
|
Quick advantage :
1.Biomass pellet mill widely used to make pellets from light substance, such as wood chips,rice husk, sawdust, straw, pasture, chrysanthemum, palm leaf and so on;
2. The feeder’s especial structure makes materials conveyed evenly, it is specially designed for pellet of light substance with the density of 0.3-0.6g/ cm3;
3. It is with magnet and over load protection system, which protects the machine during production;
4. Feeder has a variable speed controller to meet different outputs requirements;
5. It makes gear directly-connecting as the driver, and is with quick-release die fixed by clamps, which will increase the output by 15% when compared to a machine with a belt conveyer;
6. The bearing and oil seal in the main drive are imported FAG /NSK to ensure highly-efficient, stability and high quality;
7. The alloy steel die is with international advanced equipment and techniques, and has long service life, and can make slippery pellets of the highest quality.
The structure of biomass pellet mill :
1. Feeder&Observation Hole:
Variable Frequency speed control, observation window to inspect the pelletizing at any time .
2. Forced feeder:
The average quantity is fed to the main engine at a constant speed.
3.Pelleting Chamber:
Insist of two rollers, ring die, and fixing parts.
4. Safety device :
the safety pin and switch is equipped to protect main shaft and stop the electric when iron go into the chamber .
Why us :
A.Good reputation
Because of the good quality and credit,our company are with good reputation both at home and abroad.
B. Factory direct supply
This ensure the competitive price available and brand care.
C. Advanced technology adopted
American CPM advanced technology with rich experience on site for installation and debugging,which has the good ability to provide with aftersale service.
D. Best and reasonable structure design of the pellet mill
This make sure the durability of the machinery running.
Gear drive of the bioass pellet mill which make the pellet machine stronger for making the wood pellets.Compared with belt drive,with lower consumption for the same capacity.
