Flat Ring Die 3T/H Cassava Pellets Production Small Wood Pellet Making Machine

MOQ: 1set
Price: Negotiable
Standard Packaging: 2 sets pellet mill machine *1 20gp . spare parts packed by plywood case or iron case only .
Delivery Period: 15 working times
Payment Method: T/T, L/C
Supply Capacity: 15 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
APEX BIOMASS
Certification
CE SGS
Model Number
MZLH
Items:
Biomass Pellet Mill Machine
Name:
Flat Ring Die Cassava Pellet Making Machine MZLH508
Capacity:
2.5-3T/H
Power:
110KW ,6P
Raw Material:
Cassava And Bioamss Raw Material
Model:
508
Motor:
6p
Color:
Can Be Customzied
Highlight:

apex Ring Die cassava pellets production

,

3T/H cassava pellets production

,

apex 12mm small wood pellet making machine

Product Description

Flat Ring Die Cassava Pellet Making Machine MZLH508



Description :

Flat ring die cassave pellet making machine is used to press the cassave into high density cylinder pellet with easy transportation and storage . When the cassave coming into the pelletizing chamber ,the ring die moving drive the roller shell , the raw material is extruded by ring die and roller shell into high density pellet .



Main technical parameters :



Model MZLH420 MZLH508 MZLH678
Capacity(t/h) 1-1.5 2.5-3 2-3
Main power (kw) 75/90 8/6P 110/132 8/6P 185/200 8/P
Feeding Power (kw) 2.2 2.2 3
Pellet Diameter (mm) 6-12 6-12 6-12





Model
MZLH420
MZLH508
MZLH678
Ring die inner diameter (mm)
420
500
688
Ring die working width(mm)
90
100
110
Ring die linear speed (m/s)
3.16
3.78
3.54
Number of clamp
3 pcs
3 pcs
8 pcs
Number of roller
2 pcs
2 pcs
2 pcs
Number of cutter
1 pcs
1 pcs
1 pcs
Motor power
90+2.2+0.75
90+2.2+1.5
185+3.0+1.5
Motor rotation speed
750
750
595
Ring die hole diameter(mm)
6/8/10
6/8/10
6/8/10

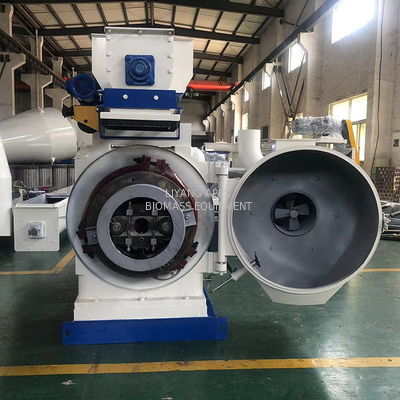

Flat Ring Die 3T/H Cassava Pellets Production Small Wood Pellet Making Machine 0

Quick advantage :







- The machine is equipped with ring die of 5-9 die hole, can choose according to the needs of different users, and ring die can be customized.

- The machine adopts frequency conversion motor feeder, overload protection device and the oil pump lubrication system.

- Apply to small and medium-size biomass pellet enterprise, easy to operate, less feeding and quick effect.

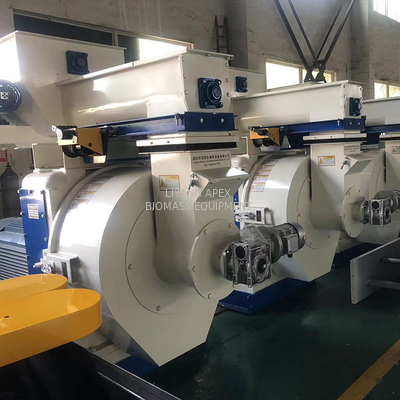

Flat Ring Die 3T/H Cassava Pellets Production Small Wood Pellet Making Machine 1





The structure of Flat Ring Die Cassava Pellet Making Machine :


1. Feeder&Observation Hole:
Variable Frequency speed control, observation window to inspect the pelletizing at any time .


2. Forced feeder:
The average quantity is fed to the main engine at a constant speed.


3.Pelleting Chamber:
Insist of two rollers, ring die, and  fixing parts.



4. Safety device :

the safety pin and switch is equipped to protect main shaft and stop the electric when iron go into the chamber .

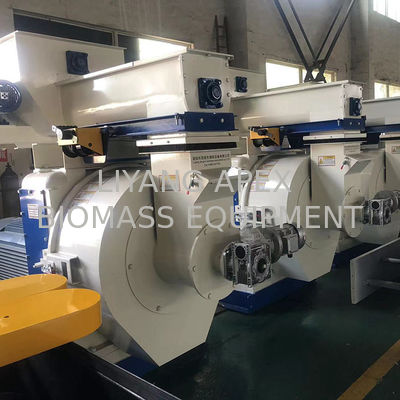

Flat Ring Die 3T/H Cassava Pellets Production Small Wood Pellet Making Machine 2
Flat Ring Die 3T/H Cassava Pellets Production Small Wood Pellet Making Machine 3



Why us :



A.Good reputation



Because of the good quality and credit,our company are with good reputation both at home and abroad.



B. Factory direct supply



This ensure the competitive price available and brand care.



C. Advanced technology adopted



American CPM advanced technology with rich experience on site for installation and debugging,which has the good ability to provide with aftersale service.



D. Best and reasonable structure design of the pellet mill



This make sure the durability of the machinery running.



Gear drive of the bioass pellet mill which make the pellet machine stronger for making the wood pellets.Compared with belt drive,with lower consumption for the same capacity.
