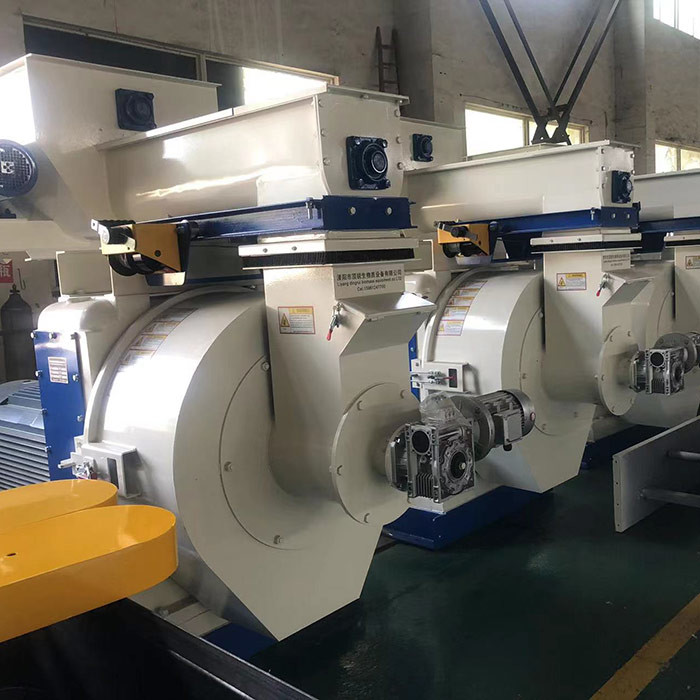

75kw Biomass Pelletizer Machine Bamboo Ring Die Pellet Machine Sawdust Pellet Making
| Place of Origin | CHINA |
|---|---|
| Brand Name | APEX BIOMASS |
| Certification | CE SGS |
| Model Number | MZLH |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | 2 sets pellet mill machine *1 20gp . spare parts packed by plywood case or iron case only . |
| Delivery Time | 15 working times |
| Payment Terms | T/T, L/C |
| Supply Ability | 15 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Items | Biomass Pellet Mill Machine | Name | Ring Die Biomass Pelletizer Bamboo Wood Sawdust Pellet Making Machine |
|---|---|---|---|
| Capacity | 1-20t/h | Power | 75kw ,110kw ,200kw |
| Raw Material | Biomass And Wood Waste | Model | MZLH |
| Motor | 380v ,50hz ,brand Motor | Wearing Parts | Pellet Mill Dies And Roller Shell |
| Highlight | apex 5kw biomass pelletizer machine,apex 10TPH biomass pelletizer machine,apex biomass ring die pellet machine |
||
Product Description
Ring Die Biomass Pelletizer Bamboo Wood Sawdust Pellet Making Machine
Main Features:
1. Gear driven.
2. Force feeder.
3. Safe protection mechanism for both workers and machines.
4. Siemens motor, imported bearings.
5. Alloy steel or all stainless steel ring die.
6. Auto cooling and oil adding lubrication system.
7. Controlled length of pellet.
8. Optional Conditioner.
9. Optional Intelligent automatic control system.
Main technical parameters :
| Model | MZLH420 | MZLH508 | MZLH678 |
| Capacity(t/h) | 1-1.5 | 2.5-3 | 2-3 |
| Main power (kw) | 75/90 8/6P | 110/132 8/6P | 185/200 8/P |
| Feeding Power (kw) | 2.2 | 2.2 | 3 |
| Pellet Diameter (mm) | 6-12 | 6-12 | 6-12 |
|
Model
|
MZLH420
|
MZLH508
|
MZLH678
|
|
Ring die inner diameter (mm)
|
420
|
500
|
688
|
|
Ring die working width(mm)
|
90
|
100
|
110
|
|
Ring die linear speed (m/s)
|
3.16
|
3.78
|
3.54
|
|
Number of clamp
|
3 pcs
|
3 pcs
|
8 pcs
|
|
Number of roller
|
2 pcs
|
2 pcs
|
2 pcs
|
|
Number of cutter
|
1 pcs
|
1 pcs
|
1 pcs
|
|
Motor power
|
90+2.2+0.75
|
90+2.2+1.5
|
185+3.0+1.5
|
|
Motor rotation speed
|
750
|
750
|
595
|
|
Ring die hole diameter(mm)
|
6/8/10
|
6/8/10
|
6/8/10
|
Quick advantage :
- The machine is equipped with ring die of 5-9 die hole, can choose according to the needs of different users, and ring die can be customized.
- The machine adopts frequency conversion motor feeder, overload protection device and the oil pump lubrication system.
- Apply to small and medium-size biomass pellet enterprise, easy to operate, less feeding and quick effect.

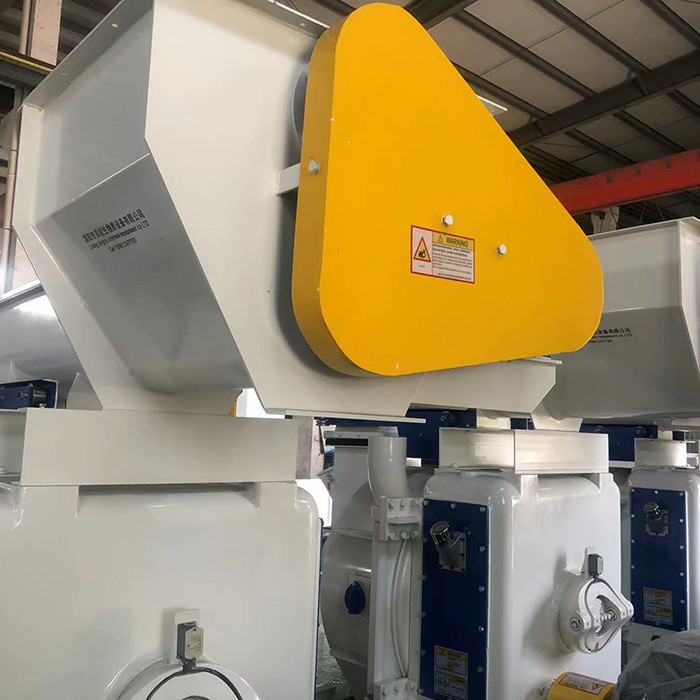

The structure of CPM Type Biomass Pelleting Press:
1. Feeder&Observation Hole:
Variable Frequency speed control, observation window to inspect the pelletizing at any time .
2. Forced feeder:
The average quantity is fed to the main engine at a constant speed.
3.Pelleting Chamber:
Insist of two rollers, ring die, and fixing parts.
4. Safety device :
the safety pin and switch is equipped to protect main shaft and stop the electric when iron go into the chamber .
5. Ring die lifting device :
Roller shell and Ring die replaced easliy with lifting device
6. Ring die :
Customized raw material and imported processing equipment and profession heating treatment compared to others .
Ring Die Biomass Pelletizer Bamboo Wood Sawdust Pellet Making Machine
(Compression Ratio= L/D L: Effective Die Hole Pelleting Length; D: Effective Die Hole Dia)
Generally speaking, the higher the compression ratio, the denser the finished pellets. But it does not mean that the higher the compression ratio, the better the pellet quality. Compression ratio should be calculated based on your raw material for making pellets. Commonly compression ratio is inversely proportion to the hardness of raw material, the harder the raw material, the smaller the compression ratio.
Why us :
A.Good reputation
Because of the good quality and credit,our company are with good reputation both at home and abroad.
B. Factory direct supply
This ensure the competitive price available and brand care.
C. Advanced technology adopted
American CPM advanced technology with rich experience on site for installation and debugging,which has the good ability to provide with aftersale service.
D. Best and reasonable structure design of the pellet mill
This make sure the durability of the machinery running.
Gear drive of the bioass pellet mill which make the pellet machine stronger for making the wood pellets.Compared with belt drive,with lower consumption for the same capacity.
