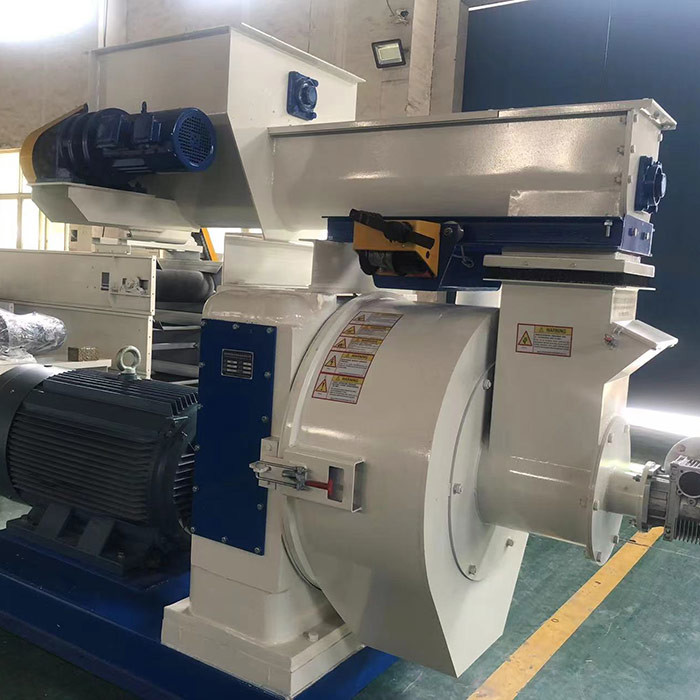

3t/H Automatic Lubricating Biomass Pellet Mill Machine Commercial Wood Pellet Mill
| Place of Origin | CHINA |
|---|---|
| Brand Name | APEX BIOMASS |
| Certification | CE SGS |
| Model Number | MZLH |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | 2 sets pellet mill machine *1 20gp . spare parts packed by plywood case or iron case only . |
| Delivery Time | 15 working times |
| Payment Terms | T/T, L/C |
| Supply Ability | 15 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Items | Biomass Pellet Mill Machine | Name | Automatic Lubricating Biomass Hard Wood Press Mill Machine 3t/h |
|---|---|---|---|
| Raw Material | Hard Wood ,soft Wood ,agriculture | Power | 200kw |
| Granular Size(mm) | 6-12mm | Raw Material Demands | Water Content Under 12% |
| Related Equipment | Wood Chippers ,hammer Mill Etc . | Output Per Hour | 3t |
| High Light | apex 3t/h Biomass Pellet Mill Machine,apex Automatic Biomass Pellet Mill Machine,apex 200kw commercial wood pellet mill |
||
Product Description
Automatic Lubricating Biomass Hard Wood Press Mill Machine 3t/h
Biomass Wood press mill is used to make pellets which is a new green biofuel widely applied in power plant ,civilian heating and living energy ,industrial boiler .
The raw material fo biomass wood press mill is quite extensive like agricultural residues ,energy corps ,wood material ,industrial waste .Sawdust for example ,it is squeezed by wood pelletizing machine under high temperature becoming into high density pellets without any chemical additive or binder ,this finished pellet has advantage of high calorific value ,easy transportation .
Main Features
1. Gear driven.
2. Force feeder.
3. Safe protection mechanism for both workers and machines.
4. Siemens motor, imported bearings.
5. Alloy steel or all stainless steel ring die.
6. Auto cooling and oil adding lubrication system.
7. Controlled length of pellet.
8. Optional Conditioner.
9. Optional Intelligent automatic control system.
Main technical parameters :
| Model | MZLH420 | MZLH508 | MZLH678 |
| Capacity(t/h) | 1-1.5 | 2.5-3 | 2-3 |
| Main power (kw) | 75/90 8/6P | 110/132 8/6P | 185/200 8/P |
| Feeding Power (kw) | 2.2 | 2.2 | 3 |
| Pellet Diameter (mm) | 6-12 | 6-12 | 6-12 |
|
Model
|
MZLH420
|
MZLH508
|
MZLH678
|
|
Ring die inner diameter (mm)
|
420
|
500
|
688
|
|
Ring die working width(mm)
|
90
|
100
|
110
|
|
Ring die linear speed (m/s)
|
3.16
|
3.78
|
3.54
|
|
Number of clamp
|
3 pcs
|
3 pcs
|
8 pcs
|
|
Number of roller
|
2 pcs
|
2 pcs
|
2 pcs
|
|
Number of cutter
|
1 pcs
|
1 pcs
|
1 pcs
|
|
Motor power
|
90+2.2+0.75
|
90+2.2+1.5
|
185+3.0+1.5
|
|
Motor rotation speed
|
750
|
750
|
595
|
|
Ring die hole diameter(mm)
|
6/8/10
|
6/8/10
|
6/8/10
|

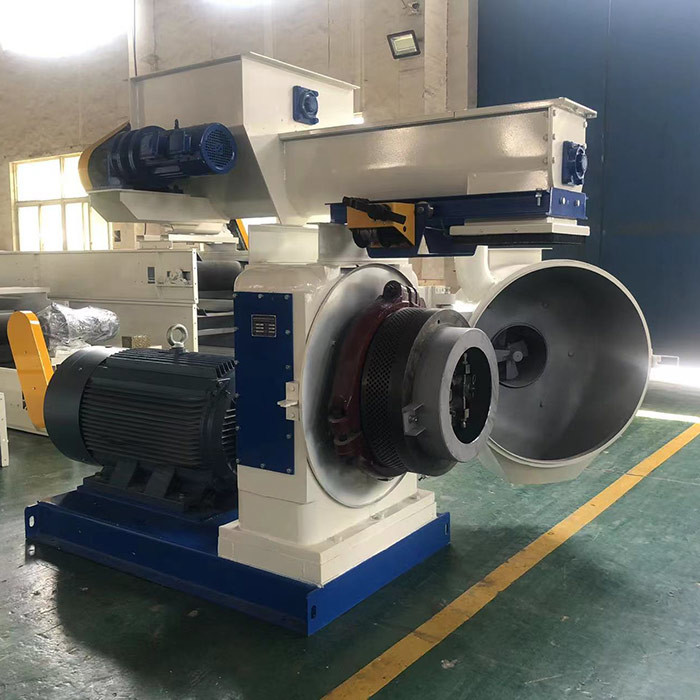

The structure of Automatic Lubricating Biomass Hard Wood Press Mill
1. Feeder&Observation Hole:
Variable Frequency speed control, observation window to inspect the pelletizing at any time .
2. Forced feeder:
The average quantity is fed to the main engine at a constant speed.
3.Pelleting Chamber:
Insist of two rollers, ring die, and fixing parts.
4. Safety device :
the safety pin and switch is equipped to protect main shaft and stop the electric when iron go into the chamber .
5. Ring die lifting device :
Roller shell and Ring die replaced easliy with lifting device
6. Ring die :
Customized raw material and imported processing equipment and profession heating treatment compared to others .
How to work of Automatic Lubricating Biomass Hard Wood Press Mill
The material in the granulation bin is fed into the chute by the feeding auger, the material enters the pressing chamber through the forced feeder, and is fed into the two pressing areas in the ring die by the feeding scraper. Due to the high-speed rotation of the ring die The material is brought between the ring die and the pressure roller. Under the strong extrusion action of the ring die and the pressure roller, the material is gradually compacted and formed in the die hole. Because the extrusion of the material between the die rollers is continuous , so the formed material is continuously discharged from the die hole in a columnar shape, and then cut into particles of the required length by the cutter, and then enters the next process.
The compression ratio of Biomass Ring Die Pellet Mill
(Compression Ratio= L/D L: Effective Die Hole Pelleting Length; D: Effective Die Hole Dia)
Generally speaking, the higher the compression ratio, the denser the finished pellets. But it does not mean that the higher the compression ratio, the better the pellet quality. Compression ratio should be calculated based on your raw material for making pellets. Commonly compression ratio is inversely proportion to the hardness of raw material, the harder the raw material, the smaller the compression ratio.
The Spare parts of :Automatic Lubricating Biomass Hard Wood Press Mill
1. Ring die :Pellet dies must resist abrasion, corrosion from chemical exposure and breakage caused by the physical stresses of pellet formation. The optimum die combines high resistance to abrasion, breakage and corrosion with maximum productivity. Our expertise enables us to precisely match the die specification to your required formulation, even if it means customizing a die pattern to meet your exact needs.
2. Roller shell :
Each die and roller assembly stay together as a unit, extending die and roller life and enabling easy storage and conversion.
Raw material :alloy steel .
Others such as five piece cover ,o ring ,main shaft etc .
