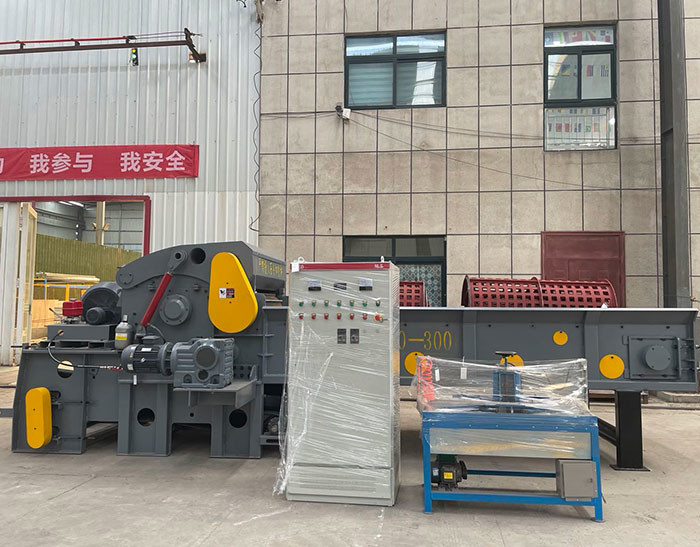

20mm 10tph 30tph Paper Mill Wood Crushing Machine Heavy Duty Wood Chipper

Place of Origin JIangsu China
Brand Name APEX BIOMASS
Model Number HX
Minimum Order Quantity 1set
Price Negotiable
Packaging Details Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation
Delivery Time 25 working days after deposit
Payment Terms T/T, L/C
Supply Ability 15 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Items Wood Crushing Machine Name Paper Mill Wood Chipper Machine For Wood Crushing 10t/h
Usage Wood Crushing Application Site Paper Mill
Chip Size 20mm Cna Be Adjustable Output 30t/h
Screening Mesh Standard 15mm
Highlight

20mm Wood Crushing Machine

,

30tph Wood Crushing Machine

,

10tph heavy duty wood chipper

Leave a Message
Product Description

Paper Mill Wood Chipper Machine For Wood Crushing 10t/h



Wood chipper ,also known as wood crushing machine , is designed for wood processing, such as all of small-diameter, slab, logs, core, tree stump, timber, wood branch, brushwood, wooden pallet, large waste wood furniture, such as building templates and variety of non wood raw materials such as all kinds of bulk straw, cotton stalk, reed, wide application range.



Quick checking of Wood Chipper Machin



  • Chain belt conveyor feeding ,Q345 steel plate material.(Wood crusher adopts chain plate type intelligent feeding which is guarantee smooth feeding to increase feeding speed .
  • Iron removal device.
  • The machine can smash wood with nails, and install an iron removing device at the discharge end of the machine to separate the wood from the nails
  • Feed roller adopts 45# Mn steel, with strong abrasion and precise bite force, the strength and performance higher than welded parts.
  • Hammers of Wood Crusher,hard wood, wood pallets, waste building templates or other wood, for large wood crusher, the chipping room will equip with hammers instead of traditional knifes.

Wood Chipper Machine is mainly used to grinding  waste construction formwork, bamboo plywood, wooden shelves, brackets, wooden packing boxes, wooden pallets, etc. The final product is a small wood chip of about 30mm.



The operation principle of the wood pallet crusher also drives the rotor to run at a high speed under the link of the three-belt through the supporting power to crush the materials. The rotor disc of this machine is divided into two parts.
One is hammer type, and the other is blade type. The hammer type rotor is suitable for crushing pallets, building templates, these plate materials with a small number of nails, blade rotationThe sub is suitable for broken branches, sticks and some rounds with larger diameters.




Technical Parameter :


Type HX4000 HX5000 HX6000 HX7000 HX8000
Roller Spped (r/min) 650 800 800 800 560
Roller Diameter (mm) 800 800 800 1100 1400
Blade/Hammer QTY 4/24 4/28 4/30 4/36 4/46
Main Power (kw) 160 200 250 280 400
Capacity (t/h) 10-15 15-20 20-30 30-50 50-70
Feeding Size (mm) 1260*600 1400*600 1600*600 1600*800 2000*1000
Feeding Method Chain feeding
Total weight (t) 15 17 21 28 51
Outsize(m) 8*2.45*2.48 8.1*2.35*2.5 9.3*2.8*3 10.8*2.8*3.4 13.3*3.15*3.9

20mm 10tph 30tph Paper Mill Wood Crushing Machine Heavy Duty Wood Chipper 0
Application Raw Material ;


Wood Chipper Machine is widely used in the pretreatment stage of biomass pellet processing plants, waste template processing plants, bamboo plywood processing plants, wood-based panel plants, composite board plants, power plant boiler raw material combustion, etc., as well as individual wood processing plants.

20mm 10tph 30tph Paper Mill Wood Crushing Machine Heavy Duty Wood Chipper 1


20mm 10tph 30tph Paper Mill Wood Crushing Machine Heavy Duty Wood Chipper 2



The spare parts of Industrial Wood Chipper Machine

Spare Parts---Rotary Knife

65# manganese steel, anti-wearing, prolonging service life, which can cut hard wood.

Blade thickness 20mm, thin 1mm per grinding. Lifetime:4-6 months



Spare Parts---Fixed Knife

Material: 45# manganese steel Lifetime: around 400-600h

20mm 10tph 30tph Paper Mill Wood Crushing Machine Heavy Duty Wood Chipper 3
