Industrial Use Large Capacity Sawdust Wood Pellet Maker 10t/h

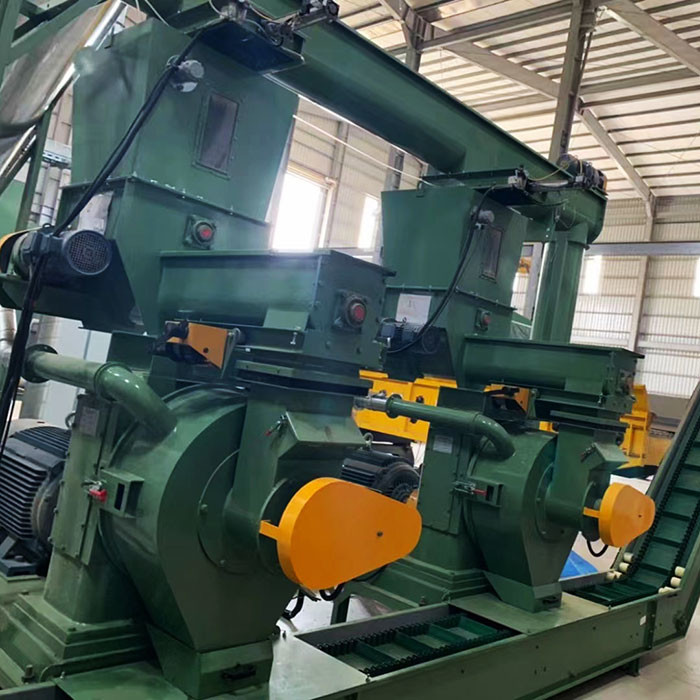

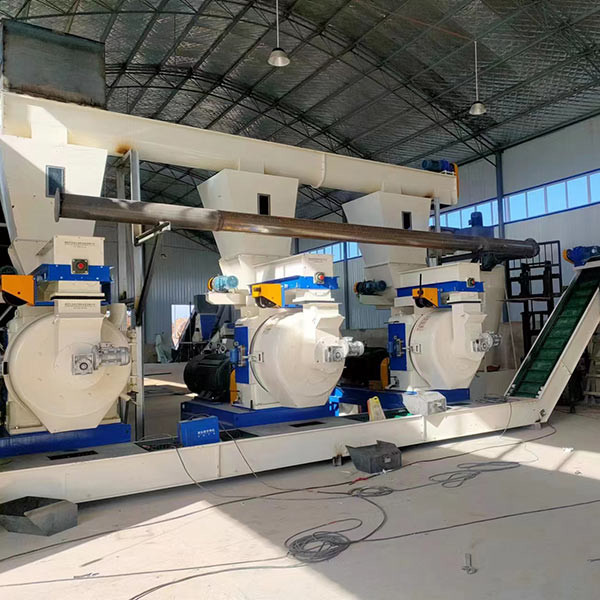

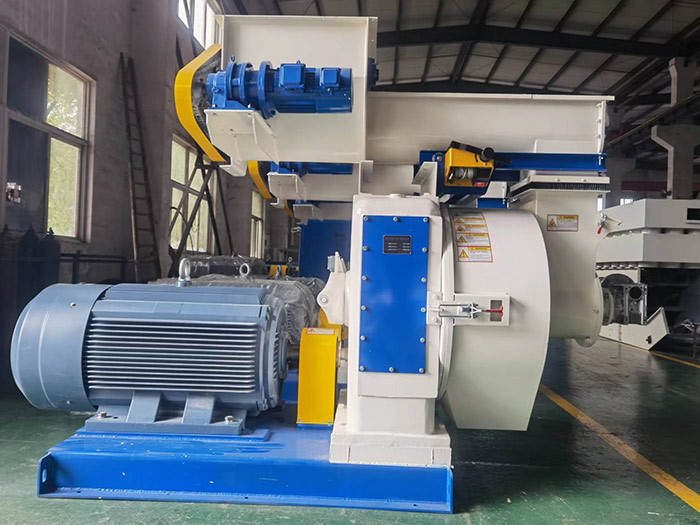

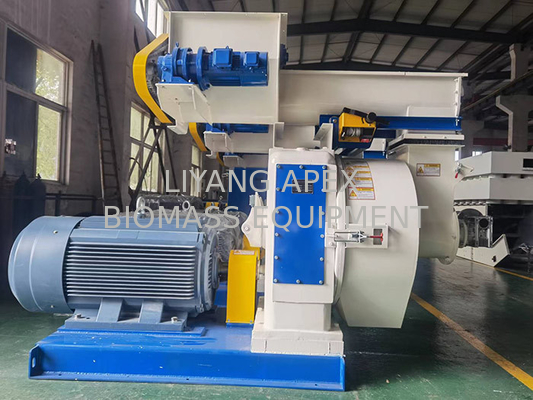

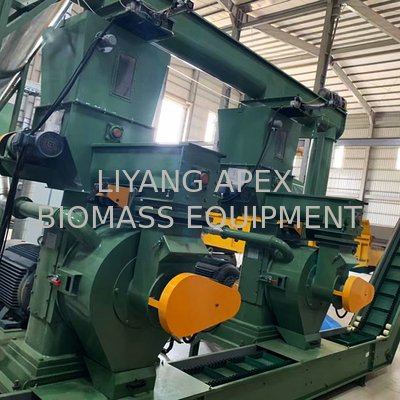

  • Industrial Use Large Capacity Sawdust Wood Pellet Maker 10t/h
  • Industrial Use Large Capacity Sawdust Wood Pellet Maker 10t/h
  • Industrial Use Large Capacity Sawdust Wood Pellet Maker 10t/h
Place of Origin CHINA
Brand Name APEX BIOMASS
Certification CE SGS
Model Number DRZL
Minimum Order Quantity 1set
Price Negotiable
Packaging Details Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation
Delivery Time 30-35 working days
Payment Terms L/C, T/T
Supply Ability 10 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Items Biomass Wood Pellet Maker Name Industrial Use Large Capacity Sawdust Wood Pellet Maker 10t/h
Main Power 90-200kw 8p Total Wood Pellet Maker Design Customized According To Demands And Factory Size
Warranty Time 18 Month Not Including The Quick Parts Power 380/415v ,customized
Weight 3000kgs-9800kgs Quick Parts Pellet Die And Rollers Shell
Highlight

Sawdust Wood Pellet Maker

,

Wood Pellet Maker 10t/h

,

Sawdust Wood Pellet Machine
Leave a Message
Product Description

Industrial Use Large Capacity Sawdust Wood Pellet Maker 10t/h



The main technical parameter :


Model DR420 DR508 DR650
Capacity(t/h) 1-1.5 1.5-1.8 2-3
Main power (kw) 75/90 8/6P 110/132 8/6P 200/185 8/6P
Feeding Power (kw) 2.2 2.2 3
Ring Die Diameter (mm) 420 520 650
Pellet Diameter (mm) 6-12 6-12 6-12



Sawdust Wood pellet maker Mainly used in industrial field to  pressing biomass raw materials such as :wood waste ,sawdust ,wood shaving ,wood plate ,agriculture waste straw ,rice husk ,and some feed pellet like grass ,cassava etc into fuel or feed pellets



Working Principle :



The raw material comes into the wood pellet maker chamber , meanwhile the ring die is rotating and driving the rolller shell ,under the action of moving ,the raw material enters to the hole of ring die and pressed by roller shell into the pellet and then cutted by the scrap .




Quick Advantage :


1. Gear driven.

2. Force feeder/can be alloy steel or stainless steel

3. Safe protection mechanism for both workers and machines.

4. Siemens motor, imported bearings.

5. Alloy steel or all stainless steel ring die.

6. Auto cooling and oil adding lubrication system.

7. Controlled length of pellet.

8. Optional Conditioner.

9. Optional Intelligent automatic control system.




Industrial Use Large Capacity Sawdust Wood Pellet Maker 10t/h 0Industrial Use Large Capacity Sawdust Wood Pellet Maker 10t/h 1



Industrial Use Large Capacity Sawdust Wood Pellet Maker 10t/h 2Industrial Use Large Capacity Sawdust Wood Pellet Maker 10t/h 3

Details of sawdust wood pellet maker



Model
DR420
DR508
DR650
Ring die inner diameter (mm)
420
500
650
Ring die working width(mm)
90
100
110
Ring die linear speed (m/s)
3.16
3.78
3.54
Number of clamp
3 pcs
3 pcs
8 pcs
Number of roller
2 pcs
2 pcs
2 pcs
Number of cutter
1 pcs
1 pcs
1 pcs
Motor power
90+2.2+0.75
90+2.2+1.5
185+3.0+1.5
Motor rotation speed
750
750
595
Ring die hole diameter(mm)
6/8/10
6/8/10
6/8/10



Generally details :
1. After sale service: 7X24 hours
2. Delivery time: 15 working days
3. Qty of Container: 3-5pcs 40 HQ
4. Port: Shanghai
5. Shipment time: 7-15days to Asia, 22-25days to EU and other countries.
6. Operator: 3-5workers if total line .
7. Certificate: CE,ISO
8. Size of workshop: the hength is 6-8M, the length and width depend on the capacity and flow diagram.



The structure of Sawdust wood pellet maker  :
1. Frequncy control feeder screw with anti-caking device .
2. Imported gear box ,high processing accuracy .
3. Imported gear processing equipment to ensure long time use .
4. Safety Assembly- protecting the main shaft ,motor and ring die .
5. Modulating alloy steel of main shaft with good bending resistance and torsional performance .
6. Scraper panel assembly, with hard alloy knife to ensure the pellet surface quality .
Industrial Use Large Capacity Sawdust Wood Pellet Maker 10t/h 4
Industrial Use Large Capacity Sawdust Wood Pellet Maker 10t/h 5


The spare parts :


1. Ring die : Replaced when be abrasion.A good ring die can improve product quality and output, reduce energy consumption (granulation energy consumption accounts for 30%-35% of the total energy consumption of the entire workshop), and reduce production costs (the cost of pellet mill die loss accounts for 25%-30% of the maintenance cost of the entire production workshop). We ring die :Customized stainless steel and alloy steel, carburized surface ,imported processing equipment .

Industrial Use Large Capacity Sawdust Wood Pellet Maker 10t/h 6



2. Roller shell :Customized alloy steel matched our ring die ,higher capacity .
3. Five piece cover ,o ring ,oil seal etc .
Industrial Use Large Capacity Sawdust Wood Pellet Maker 10t/h 7
