25kg 50Kg Automatic Wood Pellet Mill 260bag/H Wood Pellet Packing Machine

Place of Origin CHINA
Brand Name APEX BIOMASS
Certification CE SGS
Model Number MZHL
Minimum Order Quantity 1set
Price Negotiable according to different capacity demands
Packaging Details Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation
Delivery Time 15-20 working days after deposit
Payment Terms L/C, T/T
Supply Ability /

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Items Automatic Packing Machine Name 25kg 50Kg Automatic Wood Pellet Packing Machine
Application Food, Beverage, Chemical, Feeding Packing Matrial Plastic, Paper, Wood
Arrangement 20-50kg Adjustable Type Automatic Sealing
Training Free Training And Guided Installation Operating Model Automatic,semi Matic ,manual .
Highlight

25kg Wood Pellet Mill APEX

,

50Kg Wood Pellet Mill APEX

,

260bag/h wood pellet packing machine

Leave a Message
Product Description

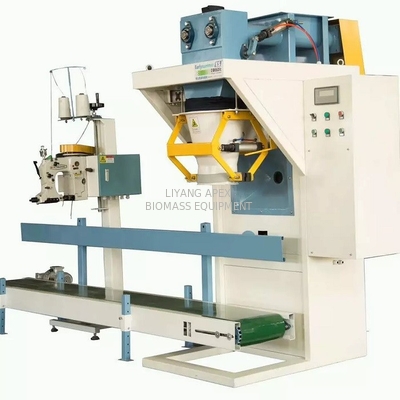

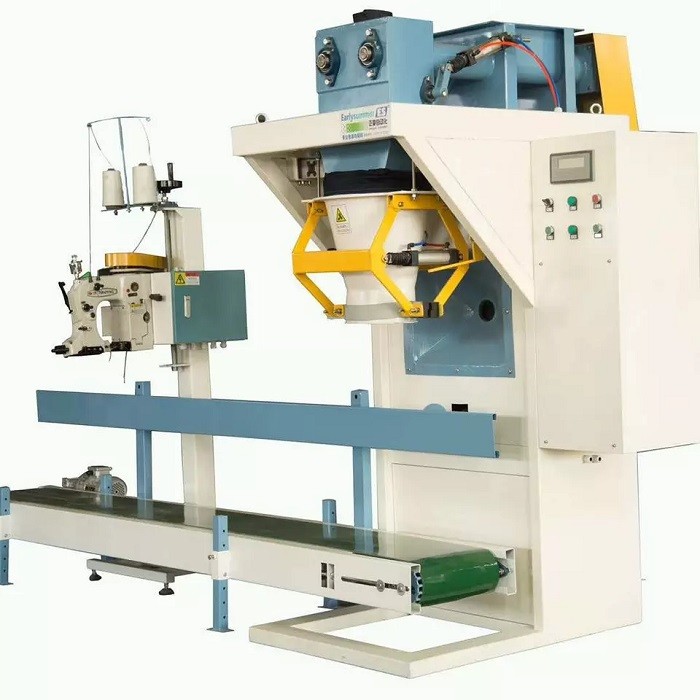

25kg 50Kg Automatic Wood Pellet Packing Machine


This DCS-50  packing machine is suitable for packing granular feeds, pellet feeds,concentrated feed and half powder have granular feeds.


Model DCS-50

Standard configuration



Main scale body (304 stainless steel in contact with materials), control system, bag- sewing machine, bag-sewing machine column, three-meter conveyor
Feed way Double speed screw feeding
Clip way Double cylinder belt clip bag
Weighing range(kg) 20-50
Weighing accuracy ±0.2%
Weighing speed(Bag/h) 160-260
Scale height 2050mm
Power and air consumption 5.0KW 0.4-0.6Mpa Compressed air 1M³/H

25kg 50Kg Automatic Wood Pellet Mill 260bag/H Wood Pellet Packing Machine 0

Main Characteristics:

1. High packing speed and accuracy.

2. High Reliability:The main components of the control system are SIEMENS and SCHNEIDER;The main components of the pneumatic system are AIRTAC and FESTO.

3. Reasonable mechanical structure:Obtained a number of national patents, with good system maintenance-free, strong material adaptability; The part in contact with the material is 304 stainless steel.

4. Stable product quality assurance:With ISO9001 quality assurance system, It adopts CAD design and CAM manufacturing technology, and then ensure the quality of products with the help of CAT detection means.

5. Packing materials:Powder material with poor fluidity, Such as starch, flour, silicon powder, alumina, etc.

Packing bag: The outer layer is polyethylene woven bag, the inner layer is plastic film bag.

25kg 50Kg Automatic Wood Pellet Mill 260bag/H Wood Pellet Packing Machine 1
