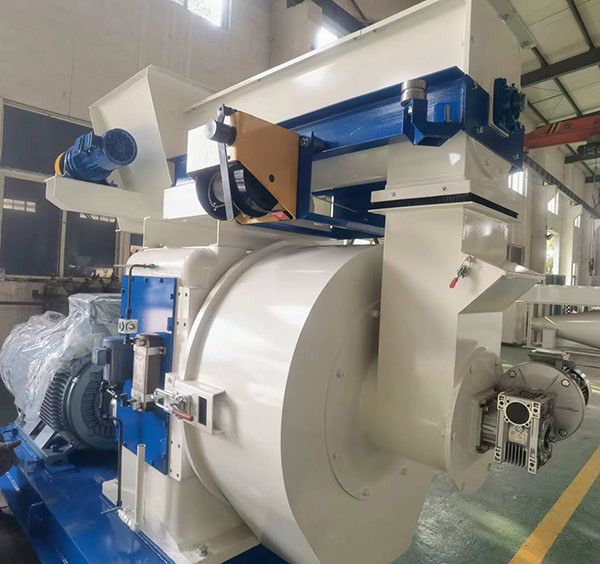

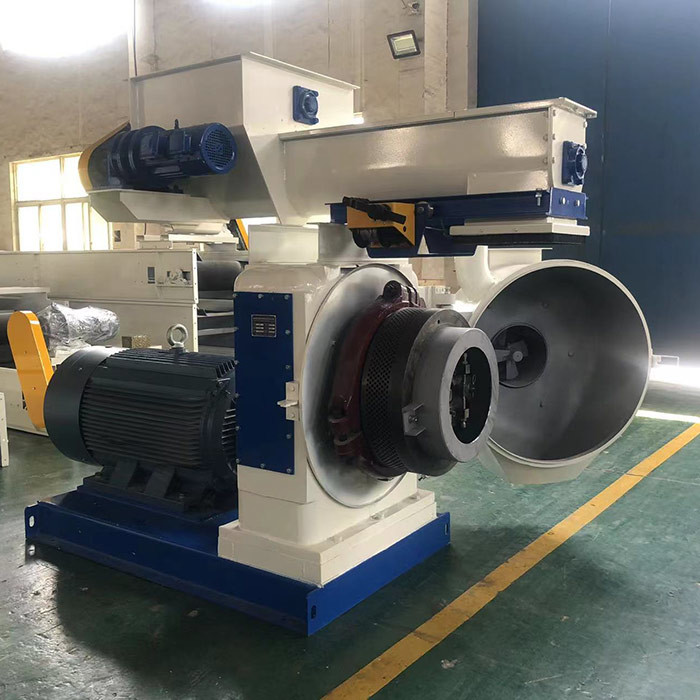

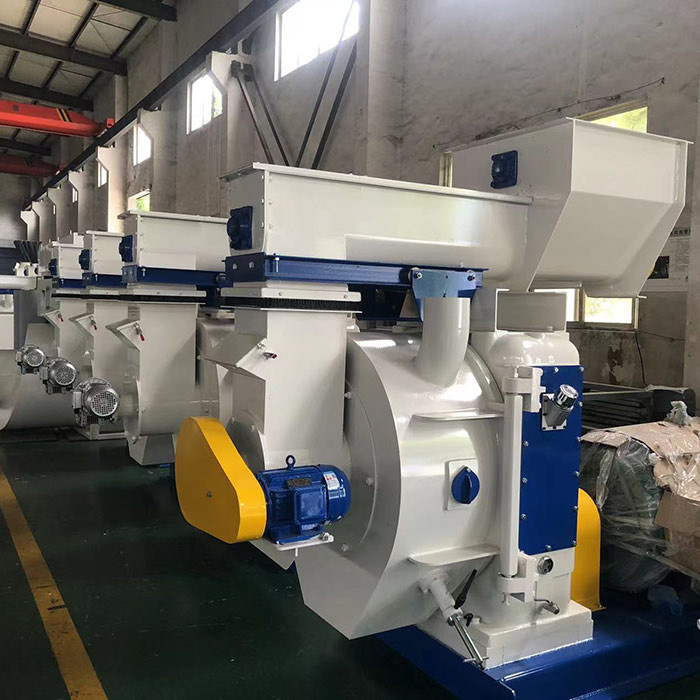

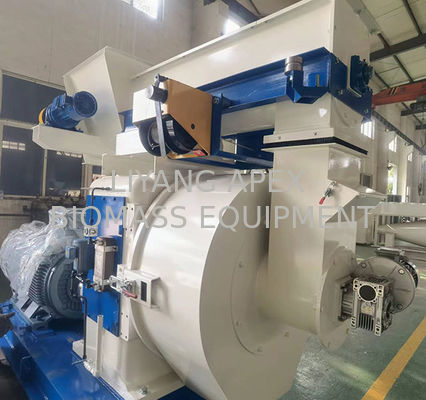

20TPH Ring Die Wood Pellet Mill

MOQ: 1set
Price: Negotiable
Standard Packaging: Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation
Delivery Period: 15-20 working days
Payment Method: L/C, T/T
Supply Capacity: 20 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
APEX BIOMASS
Certification
CE SGS
Model Number
MZLH
Items:
Wood Pellet Pess Machine
Name:
1-20t/h Wood Pellet Press Machine Ring Die Type
Model:
MZHL420 /508 /650
Output(t/h):
1-20t/h
Main Power:
75kw -200kw
Ring Die Size:
420 Mm .508mm 650mm
Warranty Time:
18 Month
Delivery Time:
20 Working Days
Highlight:

1TPH Wood Pellet Mill

,

20TPH Wood Pellet Mill

,

75kw wood pellet press homemade

Product Description

1-20t/h Wood Pellet Press Machine Ring Die Type

Ring die wood pellet press is adopt America CPM Pellet Mill Technology .

Quick Advantage :

1. Gear driven.

2. Force feeder.

3. Safe protection mechanism for both workers and machines.

4. Siemens motor, imported bearings.

5. Alloy steel or all stainless steel ring die.

6. Auto cooling and oil adding lubrication system.

7. Controlled length of pellet.

8. Optional Conditioner.

9. Optional Intelligent automatic control system.

20TPH Ring Die Wood Pellet Mill 020TPH Ring Die Wood Pellet Mill 1

Working Principle :

The raw material comes into the pelletizing chamber , meanwhile the ring die is rotating and driving the rolller shell ,under the action of moving ,the raw material enters to the hole of ring die and pressed by roller shell into the pellet and then cutted by the scrap .



The main technical parameter :

Model MZLH420 MZLH508 MZLH650
Capacity(t/h) 1-1.5 1.5-1.8 2-3
Main power (kw) 75/90 8/6P 110/132 8/6P 200/185 8/6P
Feeding Power (kw) 2.2 2.2 3
Ring Die Diameter (mm) 420 520 650
Pellet Diameter (mm) 6-12 6-12

6-12





20TPH Ring Die Wood Pellet Mill 220TPH Ring Die Wood Pellet Mill 3

Details Ring die data of each pellet press mill .



Model
MZLH420
MZLH508
MZLH650
Ring die inner diameter (mm)
420
500
650
Ring die working width(mm)
90
100
110
Ring die linear speed (m/s)
3.16
3.78
3.54
Number of clamp
3 pcs
3 pcs
8 pcs
Number of roller
2 pcs
2 pcs
2 pcs
Number of cutter
1 pcs
1 pcs
1 pcs
Motor power
90+2.2+0.75
90+2.2+1.5
185+3.0+1.5
Motor rotation speed
750
750
595
Ring die hole diameter(mm)
6/8/10
6/8/10
6/8/10





Generally details :

1. After sale service: 7X24 hours

2. Delivery time: 15 working days

3. Qty of Container: 3-5pcs 40 HQ

4. Port: Shanghai

5. Shipment time: 7-15days to Asia, 22-25days to EU and other countries.

6. Operator: 3-5workers if total line .

7. Certificate: CE,ISO

8. Size of workshop: the hength is 6-8M, the length and width depend on the capacity and flow diagram.

The structure of  Pellet press Mill :

1. Frequncy control feeder screw  with anti-caking device .

2. Imported gear box ,high processing accuracy .

3. Imported gear processing equipment to ensure long time use .

4. Safety Assembly- protecting the main shaft ,motor and ring die .

5. Modulating alloy steel of main shaft with good bending resistance and torsional performance .

6. Scraper panel assembly, with hard alloy knife to ensure the pellet surface quality .

20TPH Ring Die Wood Pellet Mill 4

20TPH Ring Die Wood Pellet Mill 5



The spare parts :



1. Ring die : Replaced when be abrasion.A good ring die can improve product quality and output, reduce energy consumption (granulation energy consumption accounts for 30%-35% of the total energy consumption of the entire workshop), and reduce production costs (the cost of pellet mill die loss accounts for 25%-30% of the maintenance cost of the entire production workshop). We ring die :Customized stainless steel and alloy steel, carburized surface ,imported processing equipment .

20TPH Ring Die Wood Pellet Mill 6



2. Roller shell :Customized alloy steel matched our ring die ,higher capacity .

3. Five piece cover ,o ring ,oil seal etc .

20TPH Ring Die Wood Pellet Mill 7
