3t/H Ring Die CPM Commercial Wood Pellet Mill Machine 200kw
| Place of Origin | CHINA |
|---|---|
| Brand Name | APEX BIOMASS |
| Certification | CE SGS |
| Model Number | MZLH |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation |
| Delivery Time | 15-20 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 20 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Items | Ring Die Pellet Mill | Name | Ring Die Wood Pellet Mill Machine CPM Type 200kw 3t/h |
|---|---|---|---|
| Model | MZLH650 | Output(t/h) | 3T/H |
| Application | Biomass And Agriculture Waste Pellet Making | Wearing Parts | Ring Die ,rollers Etc |
| Total Weight | About 6.5 Ton | Delivery Time | 20 Working Days |
| High Light | apex 3t/h Wood Pellet Mill,apex 3TPH Ring Die Wood Pellet Mill,apex commercial wood pellet machine 200kw |
||
Product Description

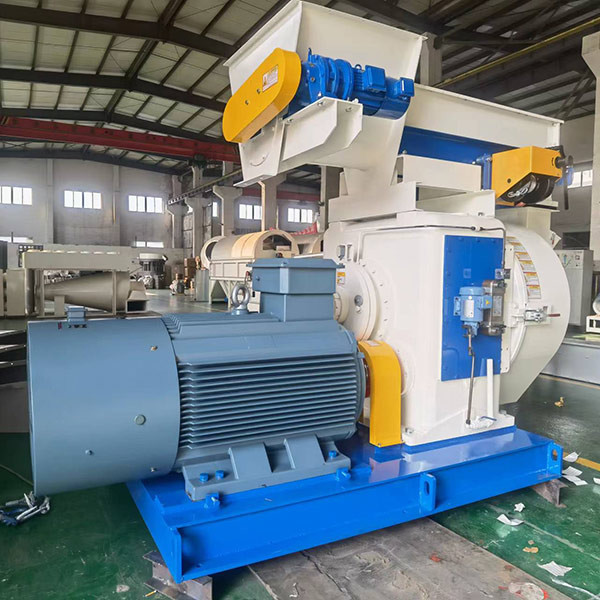

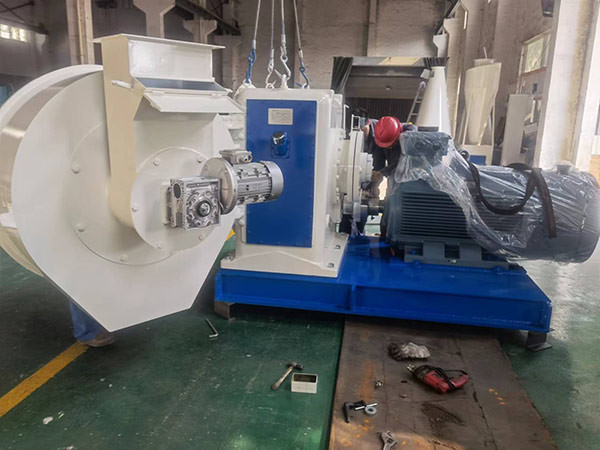

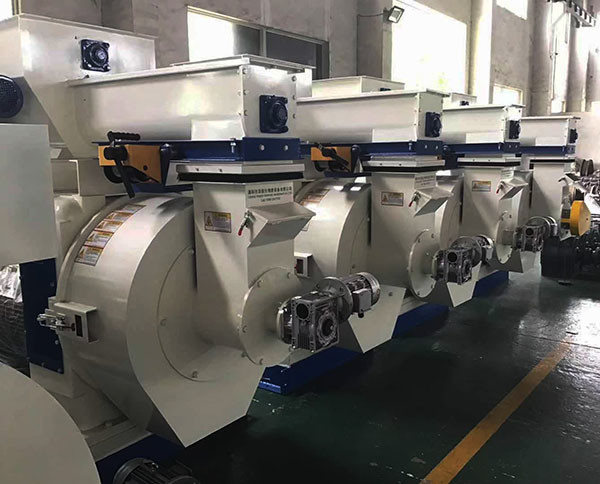

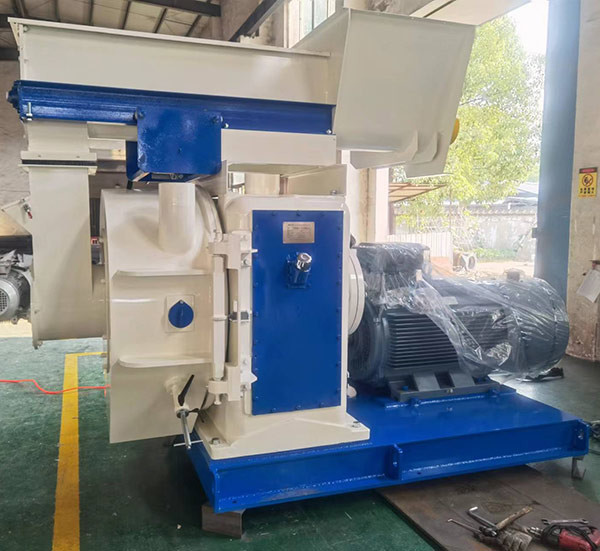

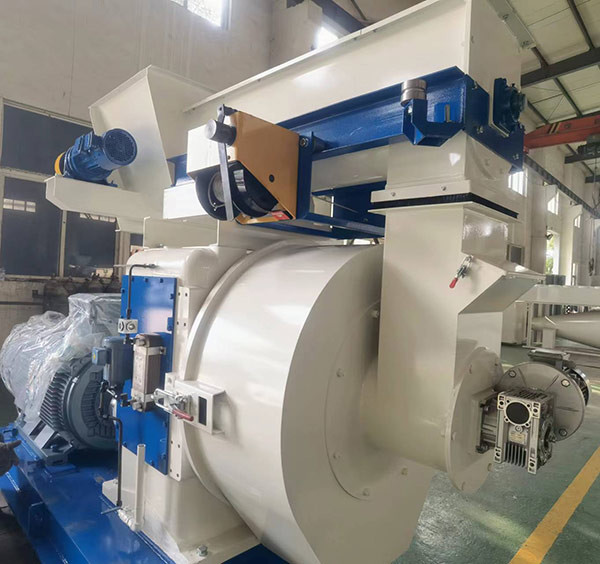

Ring Die Wood pellet Mill Machine CPM Type 200kw 3t/h
Working Principle :
The raw material comes into the pelletizing chamber , meanwhile the ring die is rotating and driving the rolller shell ,under the action of moving ,the raw material enters to the hole of ring die and pressed by roller shell into the pellet and then cutted by the scrap .
Quick Advantage :
1. Gear driven.
2. Force feeder/can be alloy steel or stainless steel
3. Safe protection mechanism for both workers and machines.
4. Siemens motor, imported bearings.
5. Alloy steel or all stainless steel ring die.
6. Auto cooling and oil adding lubrication system.
7. Controlled length of pellet.
8. Optional Conditioner.
9. Optional Intelligent automatic control system.
The main technical parameter :
| Model | MZLH420 | MZLH508 | MZLH650 |
| Capacity(t/h) | 1-1.5 | 1.5-1.8 | 2-3 |
| Main power (kw) | 75/90 8/6P | 110/132 8/6P | 200/185 8/6P |
| Feeding Power (kw) | 2.2 | 2.2 | 3 |
| Ring Die Diameter (mm) | 420 | 520 | 650 |
| Pellet Diameter (mm) | 6-12 | 6-12 | 6-12 |
Details Ring die data of each wood pelletizer .
Model | MZLH420 | MZLH508 | MZLH650 |
Ring die inner diameter (mm) | 420 | 500 | 650 |
Ring die working width(mm) | 90 | 100 | 110 |
Ring die linear speed (m/s) | 3.16 | 3.78 | 3.54 |
Number of clamp | 3 pcs | 3 pcs | 8 pcs |
Number of roller | 2 pcs | 2 pcs | 2 pcs |
Number of cutter | 1 pcs | 1 pcs | 1 pcs |
Motor power | 90+2.2+0.75 | 90+2.2+1.5 | 185+3.0+1.5 |
Motor rotation speed | 750 | 750 | 595 |
Ring die hole diameter(mm) | 6/8/10 | 6/8/10 | 6/8/10 |
Generally details :
1. After sale service: 7X24 hours
2. Delivery time: 15 working days
3. Qty of Container: 3-5pcs 40 HQ
4. Port: Shanghai
5. Shipment time: 7-15days to Asia, 22-25days to EU and other countries.
6. Operator: 3-5workers if total line .
7. Certificate: CE,ISO
8. Size of workshop: the hength is 6-8M, the length and width depend on the capacity and flow diagram.
The structure of wood pelletizer :
1. Frequncy control feeder screw with anti-caking device .
2. Imported gear box ,high processing accuracy .
3. Imported gear processing equipment to ensure long time use .
4. Safety Assembly- protecting the main shaft ,motor and ring die .
5. Modulating alloy steel of main shaft with good bending resistance and torsional performance .
6. Scraper panel assembly, with hard alloy knife to ensure the pellet surface quality .
The spare parts :
1. Ring die : Replaced when be abrasion.A good ring die can improve product quality and output, reduce energy consumption (granulation energy consumption accounts for 30%-35% of the total energy consumption of the entire workshop), and reduce production costs (the cost of pellet mill die loss accounts for 25%-30% of the maintenance cost of the entire production workshop). We ring die :Customized stainless steel and alloy steel, carburized surface ,imported processing equipment .
2. Roller shell :Customized alloy steel matched our ring die ,higher capacity .
3. Five piece cover ,o ring ,oil seal etc .
