Tapioca Pellet Making Machine No steam Used for VN THAILAN 10T/H
| Place of Origin | CHINA |
|---|---|
| Brand Name | APEX BIOMASS |
| Certification | CE SGS |
| Model Number | 508 |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | Complete machine is packed by plastic ,all siutable for sea transportation,Plywood cases or iron case is be used for spare parts |
| Delivery Time | 30-35 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Items | Tapioca Pellet Making Machine | Name | Tapioca Pellet Making Machine No Steam Used For VN THAILAN 10T/H |
|---|---|---|---|
| Motor | 132kw ,Simens Or Others | Capacity | 3t/h .6t/h ,10t/h |
| Model | 420,508 | After Sales Service | Technical Consultant, Guide, Installation&Testing |
| Conditioner Type | No Steam Need | Bearing | FAG |
| High Light | Tapioca Pellet Machine 10T/H,132kw Tapioca Pellet Making Machine,Pellet Making Machine 10T/H |
||
Product Description
Tapioca Pellet Making Machine No steam Used for VN THAILAN 10T/H
Tapioca is an ideal carbohydrate source for allergy sufferers because tapioca is virtually devoid of protein and will not cause immune-mediated reactions like those observed in animals feed grain-based diets .Tapioca (Cassava) pellets are a source of carbohydrates, and rich in starch. The pellets are made from the roots of the cassava plant. The root is first chopped, then sun dried. The product is then turned into pellets so that it can be easily transported.
Working Principle of Pellet Making machine :
The raw material comes into the pelletizing chamber , meanwhile the ring die is rotating and driving the rolller shell ,under the action of moving ,the raw material enters to the hole of ring die and pressed by roller shell into the pellet and then cutted by the scrap .
Quick Advantage :
1. Gear driven.
2. Force feeder/can be alloy steel or stainless steel
3. Safe protection mechanism for both workers and machines.
4. Siemens motor, imported bearings.
5. Alloy steel or all stainless steel ring die.
6. Auto cooling and oil adding lubrication system.
7. Controlled length of pellet.
8. Optional Conditioner.
9. Optional Intelligent automatic control system.
The main technical parameter :
| Model | DR420 | DR508 | DR650 |
| Capacity(t/h) | 1-1.5 | 1.5-1.8 | 2-3 |
| Main power (kw) | 75/90 8/6P | 110/132 8/6P | 200/185 8/6P |
| Feeding Power (kw) | 2.2 | 2.2 | 3 |
| Ring Die Diameter (mm) | 420 | 520 | 650 |
| Pellet Diameter (mm) | 6-12 | 6-12 | 6-12 |

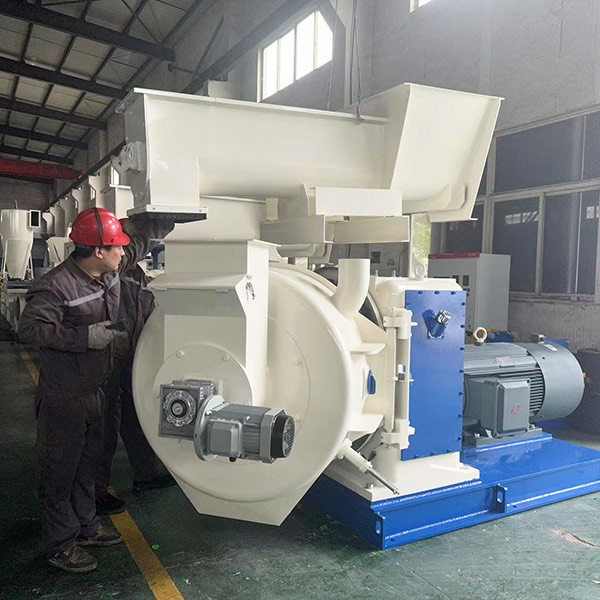

Details Ring die pellet press machine
|
Model
|
DR420
|
DR508
|
DR650
|
|
Ring die inner diameter (mm)
|
420
|
500
|
650
|
|
Ring die working width(mm)
|
90
|
100
|
110
|
|
Ring die linear speed (m/s)
|
3.16
|
3.78
|
3.54
|
|
Number of clamp
|
3 pcs
|
3 pcs
|
8 pcs
|
|
Number of roller
|
2 pcs
|
2 pcs
|
2 pcs
|
|
Number of cutter
|
1 pcs
|
1 pcs
|
1 pcs
|
|
Motor power
|
90+2.2+0.75
|
90+2.2+1.5
|
185+3.0+1.5
|
|
Motor rotation speed
|
750
|
750
|
595
|
|
Ring die hole diameter(mm)
|
6/8/10
|
6/8/10
|
6/8/10
|
Generally details :
1. After sale service: 7X24 hours
2. Delivery time: 15 working days
3. Qty of Container: 3-5pcs 40 HQ
4. Port: Shanghai
5. Shipment time: 7-15days to Asia, 22-25days to EU and other countries.
6. Operator: 3-5workers if total line .
7. Certificate: CE,ISO
8. Size of workshop: the hength is 6-8M, the length and width depend on the capacity and flow diagram.

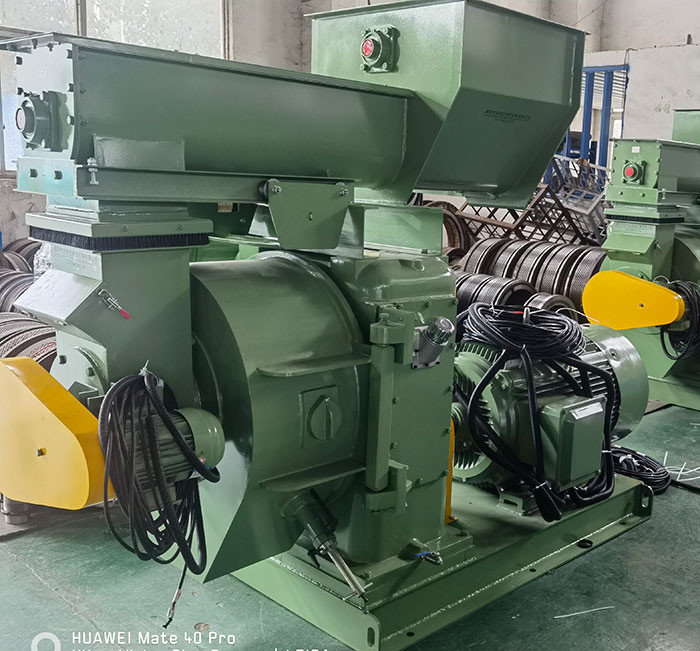

The structure of Tapioca pellet making machine :
1. Frequncy control feeder screw with anti-caking device .
2. Imported gear box ,high processing accuracy .
3. Imported gear processing equipment to ensure long time use .
4. Safety Assembly- protecting the main shaft ,motor and ring die .
5. Modulating alloy steel of main shaft with good bending resistance and torsional performance .
6. Scraper panel assembly, with hard alloy knife to ensure the pellet surface quality .
The spare parts :
1. Ring die : Replaced when be abrasion.A good ring die can improve product quality and output, reduce energy consumption (granulation energy consumption accounts for 30%-35% of the total energy consumption of the entire workshop), and reduce production costs (the cost of pellet mill die loss accounts for 25%-30% of the maintenance cost of the entire production workshop). We ring die :Customized stainless steel and alloy steel, carburized surface ,imported processing equipment .
2. Roller shell :Customized alloy steel matched our ring die ,higher capacity .
3. Five piece cover ,o ring ,oil seal etc .
