Stainless Steel Biomass Wood Pellet Machine Factory Direct Supply

Stainless Steel Biomass Wood Pellet Machine Factory Direct Supply

MOQ: 1set
Price: Negotiable
Standard Packaging: Complete machine is packed by plastic ,all siutable for sea transportation,Plywood cases or iron case is be used for spare parts
Delivery Period: 30-35 working days
Payment Method: L/C, T/T
Supply Capacity: 10 sets per month
Detail Information
Place of Origin
CHINA
Brand Name
APEX BIOMASS
Certification
CE SGS
Model Number
420 /508/ 650
Items:
Biomass Wood Pellet Machine
Name:
Stainless Steel Biomass Wood Pellet Machine Factory Direct Supply
Capacity:
1-20T/H
Main Power:
90kw ,110kw ,132kw ,200kw
Rollers Number:
2 Rollers
Material:
Stainless Steel
Motor:
Simens Or WN
Warranty Years:
12 Months
Highlight:

SS Biomass Wood Pellet Machine

,

20T/H Biomass Wood Pellet Machine

,

Stainless Steel Biomass Pellet Machine

Product Description

Stainless Steel Biomass Wood Pellet Machine Factory Direct Supply



The main technical parameter :


Model DR420 DR508 DR650
Capacity(t/h) 1-1.5 1.5-1.8 2-3
Main power (kw) 75/90 8/6P 110/132 8/6P 200/185 8/6P
Feeding Power (kw) 2.2 2.2 3
Ring Die Diameter (mm) 420 520 650
Pellet Diameter (mm) 6-12 6-12 6-12



Ring die pellet press machine Mainly used to pressing biomass raw materials such as :wood waste ,sawdust ,wood shaving ,wood plate ,agriculture waste straw ,rice husk ,and some feed pellet like grass ,cassava etc .



Working Principle :



The raw material comes into the pelletizing chamber , meanwhile the ring die is rotating and driving the rolller shell ,under the action of moving ,the raw material enters to the hole of ring die and pressed by roller shell into the pellet and then cutted by the scrap .




Quick Advantage :


1. Gear driven.

2. Force feeder/can be alloy steel or stainless steel

3. Safe protection mechanism for both workers and machines.

4. Siemens motor, imported bearings.

5. Alloy steel or all stainless steel ring die.

6. Auto cooling and oil adding lubrication system.

7. Controlled length of pellet.

8. Optional Conditioner.

9. Optional Intelligent automatic control system.

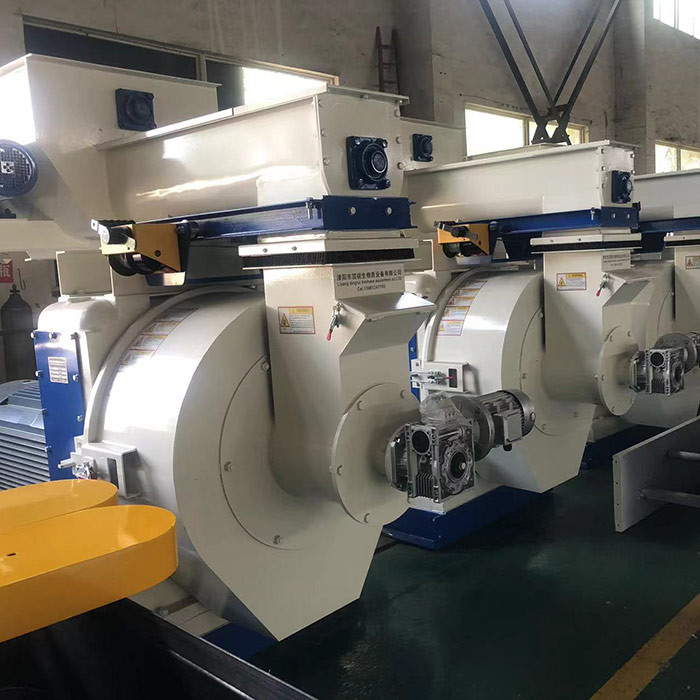

Stainless Steel Biomass Wood Pellet Machine Factory Direct Supply 0Stainless Steel Biomass Wood Pellet Machine Factory Direct Supply 1



Stainless Steel Biomass Wood Pellet Machine Factory Direct Supply 2Stainless Steel Biomass Wood Pellet Machine Factory Direct Supply 3

Details Biomass Wood Pellet  machine



Model
DR420
DR508
DR650
Ring die inner diameter (mm)
420
500
650
Ring die working width(mm)
90
100
110
Ring die linear speed (m/s)
3.16
3.78
3.54
Number of clamp
3 pcs
3 pcs
8 pcs
Number of roller
2 pcs
2 pcs
2 pcs
Number of cutter
1 pcs
1 pcs
1 pcs
Motor power
90+2.2+0.75
90+2.2+1.5
185+3.0+1.5
Motor rotation speed
750
750
595
Ring die hole diameter(mm)
6/8/10
6/8/10
6/8/10



Generally details :
1. After sale service: 7X24 hours
2. Delivery time: 15 working days
3. Qty of Container: 3-5pcs 40 HQ
4. Port: Shanghai
5. Shipment time: 7-15days to Asia, 22-25days to EU and other countries.
6. Operator: 3-5workers if total line .
7. Certificate: CE,ISO
8. Size of workshop: the hength is 6-8M, the length and width depend on the capacity and flow diagram.



The structure of Biomass wood pellet machine :
1. Frequncy control feeder screw with anti-caking device .
2. Imported gear box ,high processing accuracy .
3. Imported gear processing equipment to ensure long time use .
4. Safety Assembly- protecting the main shaft ,motor and ring die .
5. Modulating alloy steel of main shaft with good bending resistance and torsional performance .
6. Scraper panel assembly, with hard alloy knife to ensure the pellet surface quality .

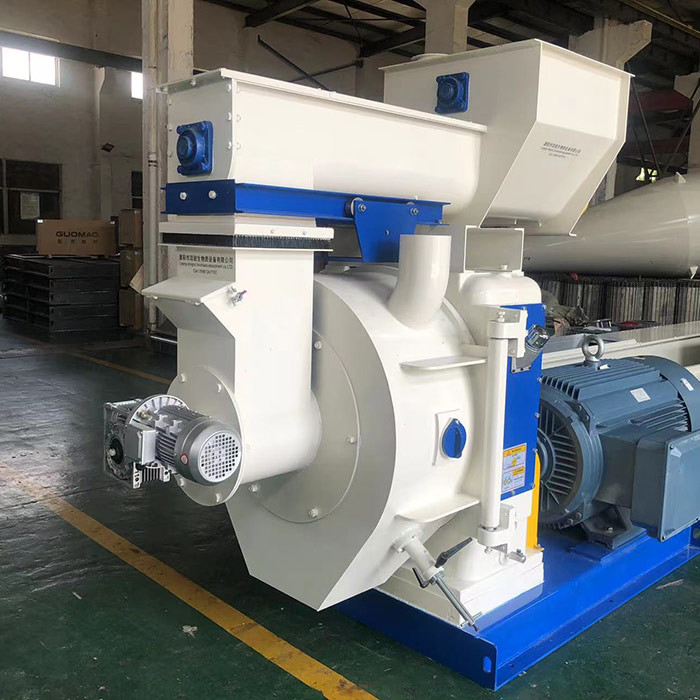

Stainless Steel Biomass Wood Pellet Machine Factory Direct Supply 4

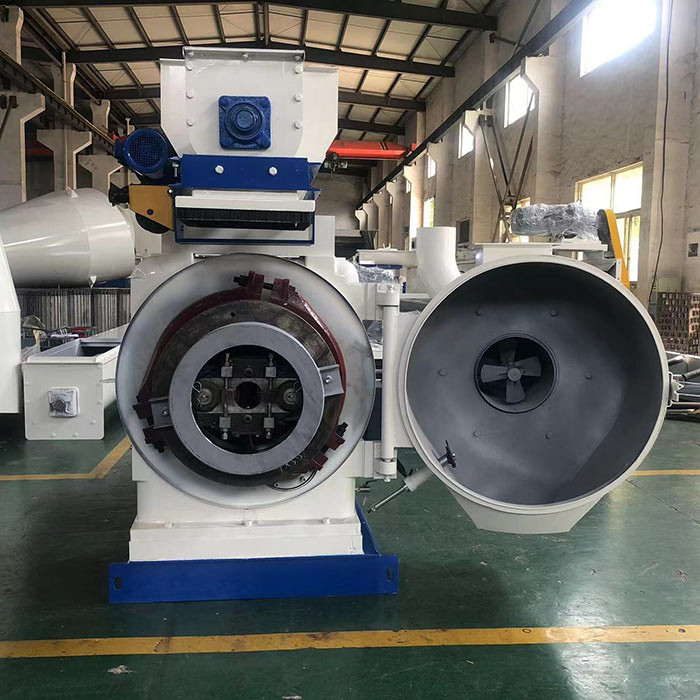

Stainless Steel Biomass Wood Pellet Machine Factory Direct Supply 5


The spare parts :


1. Ring die : Replaced when be abrasion.A good ring die can improve product quality and output, reduce energy consumption (granulation energy consumption accounts for 30%-35% of the total energy consumption of the entire workshop), and reduce production costs (the cost of pellet mill die loss accounts for 25%-30% of the maintenance cost of the entire production workshop). We ring die :Customized stainless steel and alloy steel, carburized surface ,imported processing equipment .

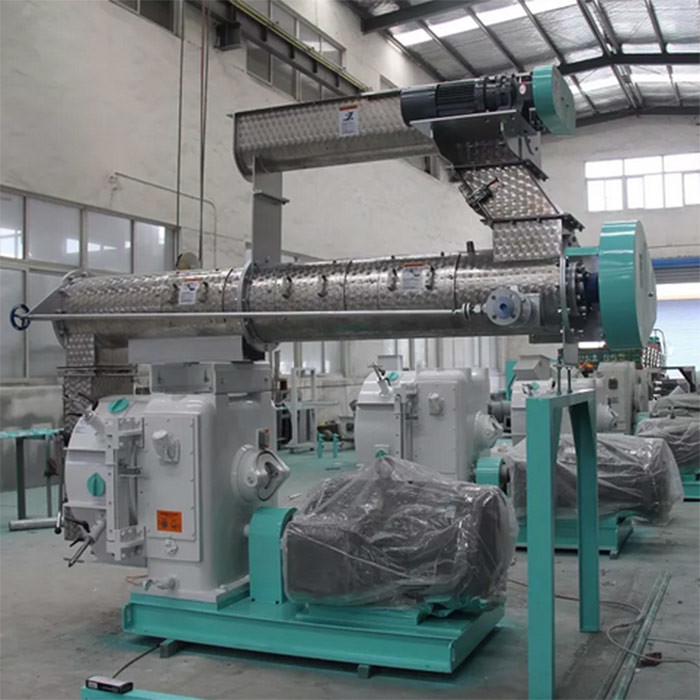

Stainless Steel Biomass Wood Pellet Machine Factory Direct Supply 6



2. Roller shell :Customized alloy steel matched our ring die ,higher capacity .
3. Five piece cover ,o ring ,oil seal etc .
Stainless Steel Biomass Wood Pellet Machine Factory Direct Supply 7
