3t/H 110kw Cassava Pellet Making Machine In Thailand 508 Cassava Pellet Press

3t/h 110kw Cassava Pellet Making Machine In Thailand 508 Cassava Pellet Press


Cassava root tubers are used as energy feed - cassava pellets, which have the same nutritional content as cassava. Cassava pellet feed is a widely used and cheap energy feed. It is the best energy (corn and wheat) substitute in the case of high grain prices and is widely recognized in feed. At present, it is mainly used in animal feed such as cattle, sheep, chickens, etc.

Highlight :

1. Water content can arrange from 10-20%.

2. No dust go into side of machine . If dust inside ,will change gear with much  time and labor .

3. Easy maintenance . Less time to change pellet die and roller shell .

4. Pattent pellet mill .

Remarks

◆ The above capacity comes from 8mm Cassava pellets production.

◆ The final capacity of Cassava pellet mil machine depends on the features of raw materials, operation and maintenance,etc.

◆ There are 2 rollers in the pressing chamber.

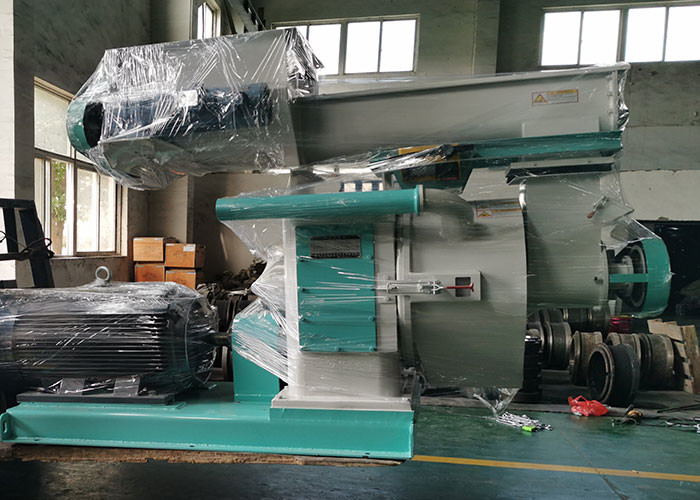

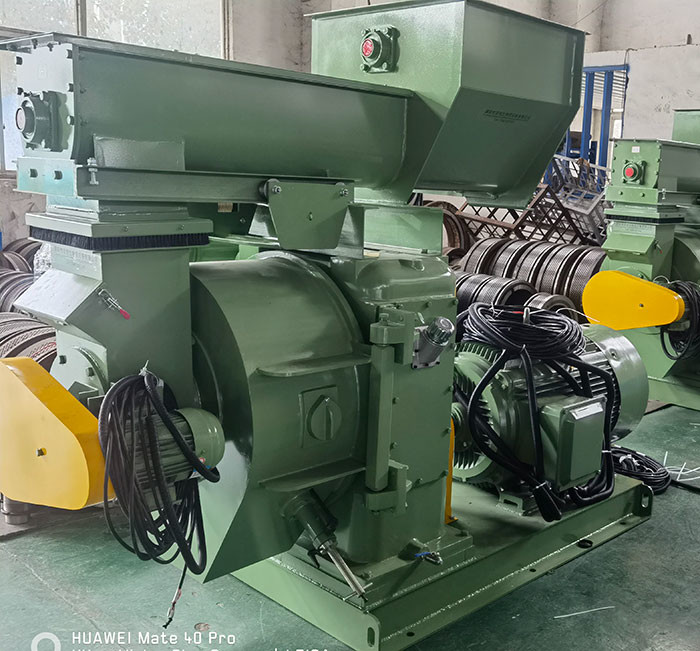

Structure of Cassava Pellet Making Machine In Thailand 508 Cassava Pellet Press

• 1. Frequncy control feeder screw with anti-caking device .
• 2. Imported gear box ,high processing accuracy .
• 3. Imported gear processing equipment to ensure long time use .
• 4. Safety Assembly- protecting the main shaft ,motor and ring die .
• 5. Modulating alloy steel of main shaft with good bending resistance and torsional performance .
• 6. Scraper panel assembly, with hard alloy knife to ensure the pellet surface quality .

(Compression Ratio= L/D L: Effective Die Hole Pelleting Length; D: Effective Die Hole Dia)
Generally speaking, the higher the compression ratio, the denser the finished pellets. But it does not mean that the higher the compression ratio, the better the pellet quality. Compression ratio should be calculated based on your raw material for making pellets. Commonly compression ratio is inversely proportion to the hardness of raw material, the harder the raw material, the smaller the compression ratio.

How to work of Cassava Pellet Making Machine In Thailand 508 Cassava Pellet Press

The cassave in the granulation bin is fed into the chute by the feeding auger, the material enters the wood press chamber through the forced feeder, and is fed into the two pressing areas in the ring die by the feeding scraper. Due to the high-speed rotation of the ring die The material is brought between the ring die and the pressure roller. Under the strong extrusion action of the ring die and the pressure roller, the material is gradually compacted and formed in the die hole. Because the extrusion of the material between the die rollers is continuous , so the formed material is continuously discharged from the die hole in a columnar shape, and then cut into particles of the required length by the cutter, and then enters the next process.

The Spare parts

1. Ring die :Pellet dies must resist abrasion, corrosion from chemical exposure and breakage caused by the physical stresses of pellet formation. The optimum die combines high resistance to abrasion, breakage and corrosion with maximum productivity. Our expertise enables us to precisely match the die specification to your required formulation, even if it means customizing a die pattern to meet your exact needs.


2. Roller shell :

Each die and roller assembly stay together as a unit, extending die and roller life and enabling easy storage and conversion.

Raw material :alloy steel .

Others such as five piece cover ,o ring ,main shaft etc .

Contact us to get price .
