10TH Sludge Cake With Sawdust Straw Pellet Making Machine 4000 Kcal
| Place of Origin | CHINA |
|---|---|
| Brand Name | APEX BIOMASS |
| Certification | CE SGS |
| Model Number | DR |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | 2 sets pellet mill machine *1 20gp . spare parts packed by plywood case or iron case only . |
| Delivery Time | 15 working times |
| Payment Terms | T/T, L/C |
| Supply Ability | 15 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Items | Biomass Pellet Mill Machine | Name | 10T/H Sludge Cake With Sawdust Straw Pellet Making Machine 4000Kcal |
|---|---|---|---|
| Type | Flat Die Sludge Sawdust Pellet Machine | Power | 200kw 8p |
| Output | 3t/h | Roller Numbers | 2 Rollers |
| Warranty Time | 2 Years For Reducer Box | Ring Die Using Time | About 1000 Hours |
| Highlight | 4000Kcal Sludge Cake Pellet Making Machine,10TH Straw Pellet Making Machine,4000 Kcal Straw Pellet Making Machine |
||
Product Description

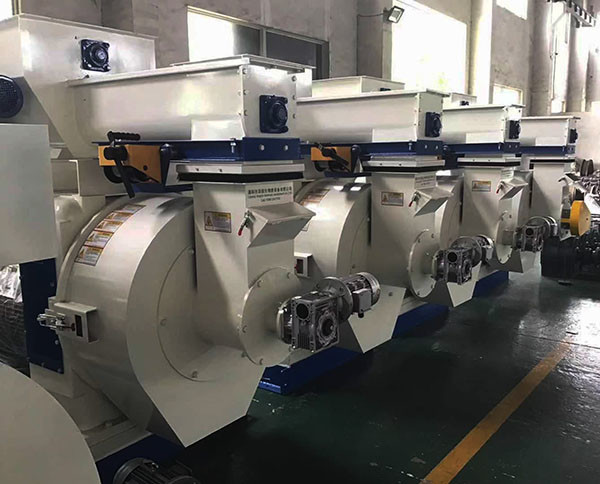

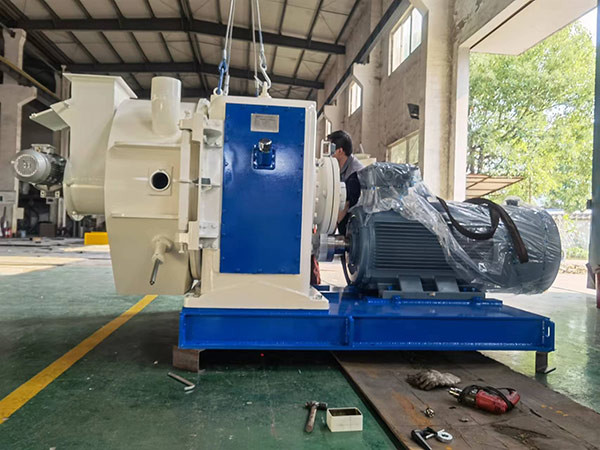

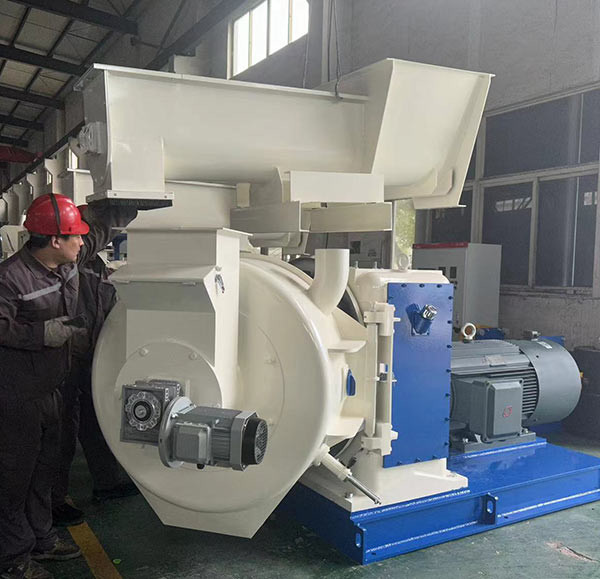

10T/H Sludge Cake with Sawdust Straw Pellet Making Machine 4000Kcal
Creating pellets from sludge offers several advantages, making it a viable and sustainable solution for waste management and energy production
Brife Introduction of sludge pellet machine :
- The pelletizing chamber temperatue of the industrial pellet mill is controlled at 90°C by utilizing aerodynamics technology, so that the machine can operate continuously.
- There is a timing feeder to control the feeding amount in order to reduce material blockage.
- The machine body of ring die pellet mill is more durable to use than those from many other suppliers because it is made from ductile iron.
- It is driven by high precision gears.
- Users do not have to stop the pellet machine to lubricate it.
- This type of commercial pellet mill is controlled by PLC system, which makes it convenient to operate and saves labor cost.
- The power consumption is 30% less than those from other manufacturers.
- All the transmission parts of the pellet mill adopt high quality imported bearings and oil seals to guarantee high efficiency transmission, stability and low noise.
Main technical parameters :
| Model | MZLH420 | MZLH508 | MZLH678 |
| Capacity(t/h) | 1-1.5 | 2.5-3 | 2-3 |
| Main power (kw) | 75/90 8/6P | 110/132 8/6P | 185/200 8/P |
| Feeding Power (kw) | 2.2 | 2.2 | 3 |
| Pellet Diameter (mm) | 6-12 | 6-12 | 6-12 |
Remarks
◆ The final capacity of Pellet Mill depends on the features of raw materials, operation and maintenance,etc.
◆ There are 2 rollers in the pressing chamber.
|
Model
|
MZLH420
|
MZLH508
|
MZLH678
|
|
Ring die inner diameter (mm)
|
420
|
500
|
688
|
|
Ring die working width(mm)
|
90
|
100
|
110
|
|
Ring die linear speed (m/s)
|
3.16
|
3.78
|
3.54
|
|
Number of clamp
|
3 pcs
|
3 pcs
|
8 pcs
|
|
Number of roller
|
2 pcs
|
2 pcs
|
2 pcs
|
|
Number of cutter
|
1 pcs
|
1 pcs
|
1 pcs
|
|
Motor power
|
90+2.2+0.75
|
90+2.2+1.5
|
185+3.0+1.5
|
|
Motor rotation speed
|
750
|
750
|
595
|
|
Ring die hole diameter(mm)
|
6/8/10
|
6/8/10
|
6/8/10
|
The structure of Sludge Mixed Sawdust Pellet Making Machine 6t/h 200kw
1. Feeder&Observation Hole:
Variable Frequency speed control, observation window to inspect the pelletizing at any time .
2. Forced feeder:
The average quantity is fed to the main engine at a constant speed.
3.Pelleting Chamber:
Insist of two rollers, ring die, and fixing parts.
4. Safety device :
the safety pin and switch is equipped to protect main shaft and stop the electric when iron go into the chamber .
5. Ring die lifting device :
Roller shell and Ring die replaced easliy with lifting device
6. Ring die :
Customized raw material and imported processing equipment and profession heating treatment compared to others .
How to work of Sludge Mixed Sawdust Pellet Making Machine 6t/h 200kw
The material in the granulation bin is fed into the chute by the feeding auger, the material enters the pressing chamber through the forced feeder, and is fed into the two pressing areas in the ring die by the feeding scraper. Due to the high-speed rotation of the ring die The material is brought between the ring die and the pressure roller. Under the strong extrusion action of the ring die and the pressure roller, the material is gradually compacted and formed in the die hole. Because the extrusion of the material between the die rollers is continuous , so the formed material is continuously discharged from the die hole in a columnar shape, and then cut into particles of the required length by the cutter, and then enters the next process.
The compression ratio of Sludge Mixed Sawdust Pellet Making Machine 6t/h 200kw
(Compression Ratio= L/D L: Effective Die Hole Pelleting Length; D: Effective Die Hole Dia)
Generally speaking, the higher the compression ratio, the denser the finished pellets. But it does not mean that the higher the compression ratio, the better the pellet quality. Compression ratio should be calculated based on your raw material for making pellets. Commonly compression ratio is inversely proportion to the hardness of raw material, the harder the raw material, the smaller the compression ratio.
The Spare parts of Sludge Mixed Sawdust Pellet Making Machine 6t/h 200kw
1. Ring die :Pellet dies must resist abrasion, corrosion from chemical exposure and breakage caused by the physical stresses of pellet formation. The optimum die combines high resistance to abrasion, breakage and corrosion with maximum productivity. Our expertise enables us to precisely match the die specification to your required formulation, even if it means customizing a die pattern to meet your exact needs.
2. Roller shell :
Each die and roller assembly stay together as a unit, extending die and roller life and enabling easy storage and conversion.
Raw material :alloy steel .
Others such as five piece cover ,o ring ,main shaft etc .
Why chooseing us :
1. large CNC die drilling center
2. Pellet mill machine assembly and testing center
3. Large embryo forging base
4. Auxiliary manufacturing base and pellet production test center
